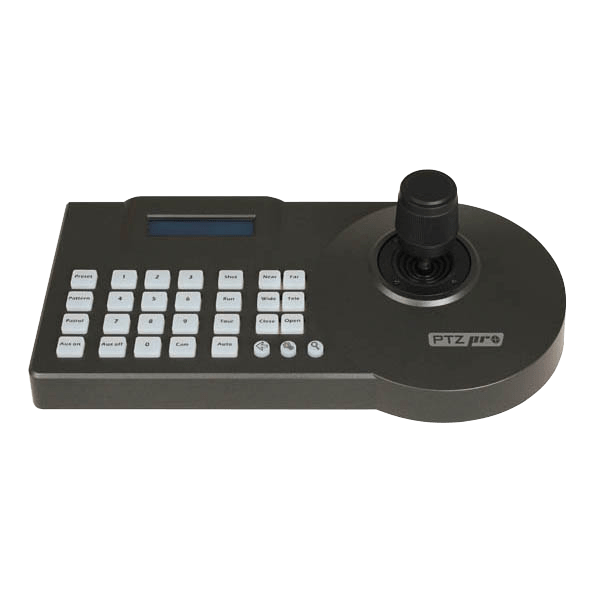

ESP PTZCON Pan, Tilt and Zoom Controller
£
112
38
(Incl. VAT)
2 Years Warranty
Pan, Tilt and Zoom Controller
About this product
About this product
The ESP PTZCON is a pan, tilt and zoom joystick controller with an LCD display, made for analogue PTZ cameras, and supports RS485. It works with HDview PTZ cameras and supports control protocols including Pelco-P and Pelco-D.
Key features
- Joystick control of pan, tilt and zoom, with an LCD display
- For use with analogue PTZ cameras; supports RS485
- Keyboard for programming and camera controls
- Protocols: Pelco-P, Pelco-D, Panasonic, HikVision, Samsung, RULE, Dahua and SAE
- Baud rates: 1200, 2400, 4800, 9600 and 19200 bps
- 16 controllers supported in total (15 auxiliary)
- 12 V DC supply, 6 W maximum power consumption
- 100 x 100 mm VESA pattern for wall hanging
Frequently asked questions
Which cameras does the ESP PTZCON control?
It is made for analogue PTZ cameras, and the HDview PTZ camera is named as a compatible product.
Which control protocols does the PTZCON support?
Pelco-P, Pelco-D, Panasonic, HikVision, Samsung, RULE, Dahua and SAE. It also supports RS485.
How is the PTZCON powered?
From a 12 V DC supply. Power consumption is 6 W at maximum.
Can more than one controller be used?
Yes. The PTZCON supports 16 controllers in total, 15 of them auxiliary.
Can the PTZCON be hung on a wall?
Yes. It has a 100 x 100 mm VESA pattern for wall hanging.
What baud rates does the PTZCON support?
1200, 2400, 4800, 9600 and 19200 bps.
-
Download
- PTZCON Tech Sheet
£
112
38
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
420 x 260 x 170
Total Controllers Supported
16 (15 Auxiliary)
VESA Wall Hanging (mm)
100 x 100
Warranty (Years)
2
Operating Voltage (V DC)
12
Power Consumption (W)
6 (Maximum)
Communication Protocol
Pelco-P, Pelco-D, Panasonic, HikVision, Samsung, RULE, Dahua, SAE
Operating Temperature (°C)
0 to +50
Compatible Products
HDview PTZ camera
Additional Information
VESA Wall Hanging 100 x 100 (mm)
Baud Rate (bps)
1200, 2400, 4800, 9600, 19200
Outputs
BNC, Audio
Dimensions
Dimensions (mm)
420 x 260 x 170
Specifications
| Dimensions (mm) | 420 x 260 x 170 |
|---|---|
| Total Controllers Supported | 16 (15 Auxiliary) |
| VESA Wall Hanging (mm) | 100 x 100 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 |
| Power Consumption (W) | 6 (Maximum) |
| Communication Protocol | Pelco-P, Pelco-D, Panasonic, HikVision, Samsung, RULE, Dahua, SAE |
| Operating Temperature (°C) | 0 to +50 |
| Compatible Products | HDview PTZ camera |
| Additional Information | VESA Wall Hanging 100 x 100 (mm) |
| Baud Rate (bps) | 1200, 2400, 4800, 9600, 19200 |
| Outputs | BNC, Audio |
Dimensions
| Dimensions (mm) | 420 x 260 x 170 |
|---|
Pan, Tilt and Zoom Controller features
