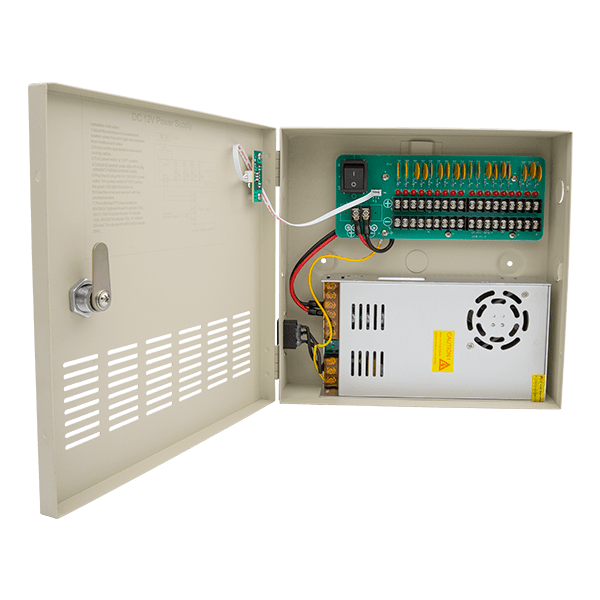

ESP CPS18W 18 Way 12V DC 10Amp CCTV Power Supply
£
50
89
(Incl. VAT)
2 Years Warranty
18 Way 12V DC 10Amp CCTV Power Supply
About this product
About this product
The ESP CPS18W, from ESP's CCTV range, is an 18 way 12V DC 10 Amp CCTV power supply with 18 outputs, each rated 12V DC regulated @ 1 Amp. It runs from a 110 - 240 V AC supply.
Key features
- 18 outputs, 12V DC regulated @ 1 Amp each
- 1.1A automatic PTC fuses protecting each output
- Short circuit & surge protection
- AC input & DC output LED indicators, plus individual LED indicators per output
- Internal on/off power switch
- Key lock to secure internals
- 18 x male DC plugs (2.1 x 5.5mm)
- 110 - 240 V AC supply
Frequently asked questions
How many outputs does the CPS18W have?
18, each rated 12V DC regulated @ 1 Amp.
What mains supply does it need?
110 - 240 V AC.
How are the outputs protected?
Each output has a 1.1A automatic PTC fuse, and the unit has short circuit & surge protection.
What connections does it have?
18 x male DC plugs (2.1 x 5.5mm).
Can the internals be secured?
Yes. It has a key lock to secure internals.
-
Download
- CPS18W Tech Sheet
£
50
89
FAST delivery by Order within
Price
Technical Details
Specifications
Colour
Grey
Materials
Steel
Mounting
Surface
Warranty (Years)
2
Supply Voltage (V AC)
110 - 240
Number of Outputs
18
Connections
18 x Male DC Plugs (2.1 x 5.5mm)
Output Rating
12V DC Regulated @ 1 Amp (each)
Dimensions (mm)
201.5 x 238.5 x 61.5
Features
Automatic fuses to protect the power supply from overloads or short circuits; LED indicators for Mains power, and DC output power; Internal switch to isolate DC outputs; Key lock to secure internals
Specifications
| Colour | Grey |
|---|---|
| Materials | Steel |
| Mounting | Surface |
| Warranty (Years) | 2 |
| Supply Voltage (V AC) | 110 - 240 |
| Number of Outputs | 18 |
| Connections | 18 x Male DC Plugs (2.1 x 5.5mm) |
| Output Rating | 12V DC Regulated @ 1 Amp (each) |
| Dimensions (mm) | 201.5 x 238.5 x 61.5 |
| Features | Automatic fuses to protect the power supply from overloads or short circuits; LED indicators for Mains power, and DC output power; Internal switch to isolate DC outputs; Key lock to secure internals |
18 Way 12V DC 10Amp CCTV Power Supply features
