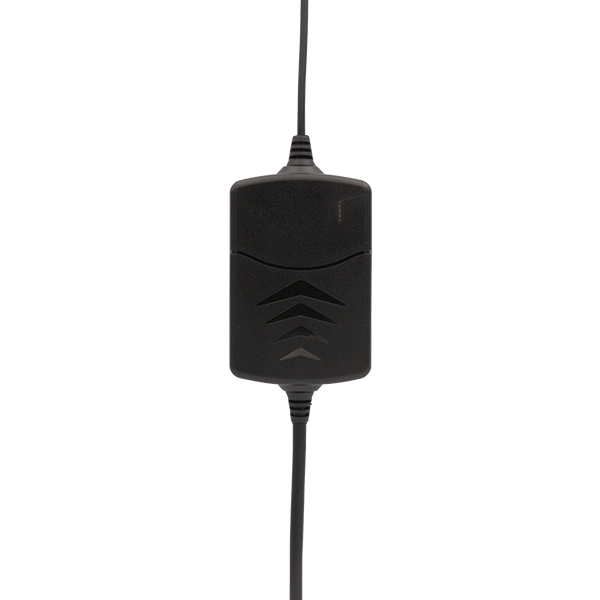

ESP PSIL1W 1 Way CCTV Power Supply
£
5
66
(Incl. VAT)
2 Years Warranty
1 Way CCTV Power Supply
About this product
About this product
The ESP PSIL1W, from ESP's CCTV range, is a 1 way 12V DC 1 Amp inline CCTV power supply, suitable to power a single CCTV camera. Live and neutral cables connect it to a fused spur, and the DC output is through a 2.1mm x 5.5mm DC plug.
Key features
- Inline power supply
- 1 output, 12V DC regulated @ 1 Amp
- Suitable to power a single CCTV camera
- Live & neutral cables for connection to a fused spur
- DC output through a 2.1mm x 5.5mm DC plug
- Status LED to indicate it is powered
- 110 - 240 V AC supply; power consumption 0.6 A
Frequently asked questions
How many cameras can it power?
It is suitable to power a single CCTV camera.
What output does it give?
One output, 12V DC regulated @ 1 Amp.
How is it connected to the mains?
Through live and neutral cables, for connection to a fused spur.
What plug does the output use?
A 2.1mm x 5.5mm DC plug (1 x male DC plug).
-
Download
- PSIL1W Tech Sheet
£
5
66
FAST delivery by Order within
Price
Technical Details
Specifications
Colour
Black
Materials
ABS
Mounting
Surface
Warranty (Years)
2
Supply Voltage (V AC)
110 - 240
Power Consumption (A)
0.6
Number of Outputs
1
Operating Temperature (°C)
0 to 40
Output Rating
12V DC Regulated @ 1 Amp
Dimensions (mm)
49.80 x 80.80 x 29.4
Connections
1 x Male DC Plug (2.1 x 5.5mm)
Features
Live & Neutral cables for connected with fuse spurs, DC output achieved through 2.1mm x 5.5mm DC plug, Status LED to indicate it is powered
Specifications
| Colour | Black |
|---|---|
| Materials | ABS |
| Mounting | Surface |
| Warranty (Years) | 2 |
| Supply Voltage (V AC) | 110 - 240 |
| Power Consumption (A) | 0.6 |
| Number of Outputs | 1 |
| Operating Temperature (°C) | 0 to 40 |
| Output Rating | 12V DC Regulated @ 1 Amp |
| Dimensions (mm) | 49.80 x 80.80 x 29.4 |
| Connections | 1 x Male DC Plug (2.1 x 5.5mm) |
| Features | Live & Neutral cables for connected with fuse spurs, DC output achieved through 2.1mm x 5.5mm DC plug, Status LED to indicate it is powered |
1 Way CCTV Power Supply features
ESP PSIL1W 1 Way CCTV Power Supply
