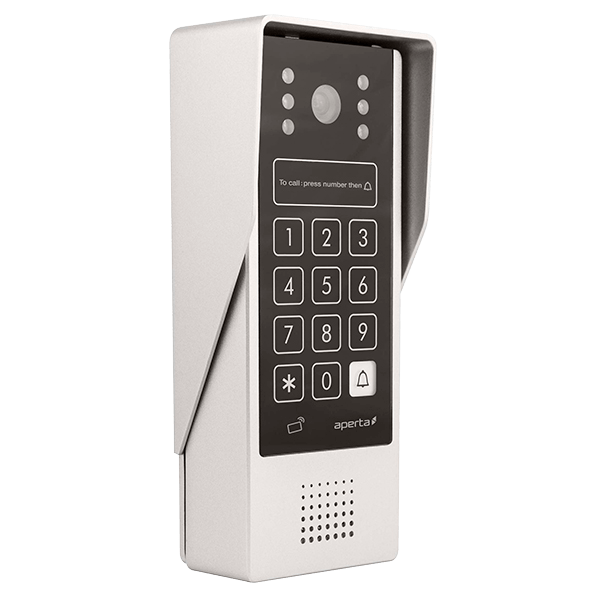

ESP APDSPXMW Multi Way Video Door Station
Free Delivery
£
235
88
(Incl. VAT)
2 Years Warranty
Multi Way Video Door Station
About this product
About this product
The Aperta APDSPXMW, from ESP's Access Control range, is a multiway video door station with proximity tags: an IP55 metal multiway outdoor station with a high resolution colour camera that supports up to 32 apartments on a simple 2 core cable installation.
Key features
- IP55 metal multiway outdoor station, aluminium alloy
- Apartment calling, proximity & code unlocking
- Supports up to 32 apartments; can call addresses 1 to 32
- High resolution colour camera: 700TVL, 1/3" sensor, 3.6 mm lens, 70° viewing angle
- Full duplex audio
- Complete with 10 pre-registered user tags
- 2 lock outputs
- Global selections: normally open or normally closed; volt-free or 12V DC 300mA
Frequently asked questions
How many apartments does the APDSPXMW support?
Up to 32; it can call addresses 1 to 32.
Can it be flush mounted?
Yes, with the APDSKPFMS; it also mounts on the surface.
How can the door be opened?
By apartment calling, proximity or code unlocking.
What comes in the box?
Fixing screws and wall plugs, a user manual, 10 access fobs, 1 green programming add fob and 1 red programming removal fob.
Which monitors work with it?
The compatible Aperta monitors are the APMONW, APMONB, APMONWG, APMONBG, APAUDH and APAUDHBLK.
-
Download
- APDSPXMW Tech Sheet
£
235
88
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
200 x 87 x 53
Operating Voltage (V DC)
24 (BUS)
Materials
Aluminium Alloy
Reader Frequency (KHz)
125
Lock outputs
2
Fobs Supported
999
Recommended BUS Cable
Cat5e or higher
Weight (Kg)
.064
Communication Protocol
BUS
Warranty (Years)
2
Illumination
5 White light LEDs
Resolution
700TVL
Sensitivity (Lux)
0.1
Sensor Size (")
1/3
Lens size (mm)
3.6
Viewing Angle (°)
70
User Interaction
0 - 9, * and Bell
Code Lengths
2 - 6
PIN Length
4 or 6
Maximum Call-able address
32
Maximum Access Codes
32 PINs, (99 when set to multi-way), (10 when set to single-way)
Operating Temperature (°C)
-20 to +40
Additional Information
Simple 2-core Installation; High-Resolution Colour Camera; Can call addresses 1 to 32
Global Selections
Normally Open or Normally Closed; Volt-Free or 12V DC300mA
Effective Distance to PowerSupply (M)
50
Mounting
Surface & Flush (requires APDSKPFMS) Mounted
Reader Effective Distance (mm)
<50
Audio
Full Duplex
Ingress Protection
IP55
Supplied
Fixing Screws, and Wall Plugs, User Manual, 10 x Access Fobs, 1 x Green Programming add Fob, 1 x Red Programming removal Fob
Features
Outdoor Station rings so that the user knows whether the call has been answered, calls last up to 30 seconds
Accessories
EZT3ST10: 10x Proximity Tags; EVBPSBB: 12V Lock power supply with battery backup; APPOWMW: Aperta Multiway BUS power supply; APSEPMW: Aperta Multiway BUS Seperator; APMONW, APMONB, APMONWG, APMONBG, APAUDH, APAUDHBLK: Compatible Aperta Monitors; ENTERD: Flush Electric Lock; ENTERD-YLR: Surface Electric Lock
Dimensions
Dimensions (mm)
200 x 87 x 53
Specifications
| Dimensions (mm) | 200 x 87 x 53 |
|---|---|
| Operating Voltage (V DC) | 24 (BUS) |
| Materials | Aluminium Alloy |
| Reader Frequency (KHz) | 125 |
| Lock outputs | 2 |
| Fobs Supported | 999 |
| Recommended BUS Cable | Cat5e or higher |
| Weight (Kg) | .064 |
| Communication Protocol | BUS |
| Warranty (Years) | 2 |
| Illumination | 5 White light LEDs |
| Resolution | 700TVL |
| Sensitivity (Lux) | 0.1 |
| Sensor Size (") | 1/3 |
| Lens size (mm) | 3.6 |
| Viewing Angle (°) | 70 |
| User Interaction | 0 - 9, * and Bell |
| Code Lengths | 2 - 6 |
| PIN Length | 4 or 6 |
| Maximum Call-able address | 32 |
| Maximum Access Codes | 32 PINs, (99 when set to multi-way), (10 when set to single-way) |
| Operating Temperature (°C) | -20 to +40 |
| Additional Information | Simple 2-core Installation; High-Resolution Colour Camera; Can call addresses 1 to 32 |
| Global Selections | Normally Open or Normally Closed; Volt-Free or 12V DC300mA |
| Effective Distance to PowerSupply (M) | 50 |
| Mounting | Surface & Flush (requires APDSKPFMS) Mounted |
| Reader Effective Distance (mm) | <50 |
| Audio | Full Duplex |
| Ingress Protection | IP55 |
| Supplied | Fixing Screws, and Wall Plugs, User Manual, 10 x Access Fobs, 1 x Green Programming add Fob, 1 x Red Programming removal Fob |
| Features | Outdoor Station rings so that the user knows whether the call has been answered, calls last up to 30 seconds |
| Accessories | EZT3ST10: 10x Proximity Tags; EVBPSBB: 12V Lock power supply with battery backup; APPOWMW: Aperta Multiway BUS power supply; APSEPMW: Aperta Multiway BUS Seperator; APMONW, APMONB, APMONWG, APMONBG, APAUDH, APAUDHBLK: Compatible Aperta Monitors; ENTERD: Flush Electric Lock; ENTERD-YLR: Surface Electric Lock |
Dimensions
| Dimensions (mm) | 200 x 87 x 53 |
|---|
