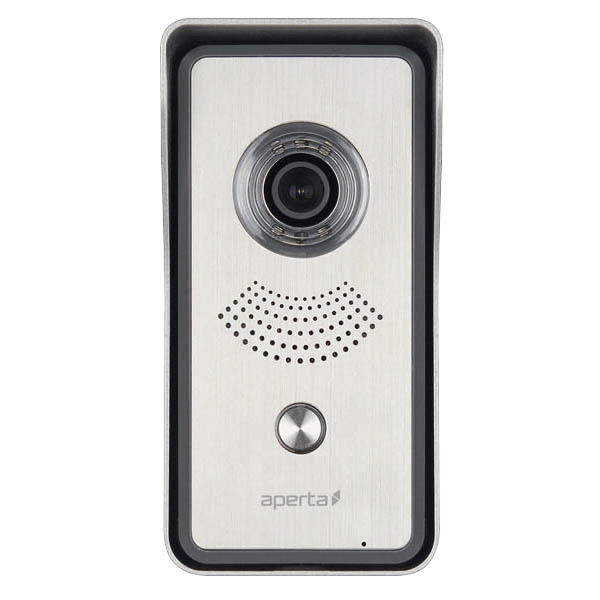

ESP APDSSW Single Way Video Door Station
£
120
28
(Incl. VAT)
2 Years Warranty
Single Way Video Door Station
About this product
About this product
The ESP APDSSW, from ESP's Access Control range, is a 1 way video door station for Aperta single way video door entry, with a high-resolution colour camera and full duplex audio.
Key features
- 700TVL resolution, 1/3" sensor, 3.6 mm lens, 0.1 lux sensitivity, 70° viewing angle
- Illumination: 5 white light LEDs
- IP55 ingress protection
- Operating temperature -20 to +40 °C
- 2 lock outputs
- Global selections: normally open or normally closed; volt-free or 12V DC 300mA
- Simple 2-core installation; recommended BUS cable Cat5e or higher
- 24 V DC (BUS) operating voltage; effective distance to power supply 50 m
Frequently asked questions
How long do calls last?
Up to 30 seconds.
How many lock outputs does the APDSSW have?
2.
What cable does it need?
It is a simple 2-core installation; the recommended BUS cable is Cat5e or higher.
What ingress protection does it have?
IP55.
-
Download
- APDSSW Tech Sheet
£
120
28
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
165 x 85 x 53
Operating Voltage (V DC)
24 (BUS)
Materials
ABS
Weight (Kg)
.39
Effective Distance to PowerSupply (M)
50
Warranty (Years)
2
Lock outputs
2
Illumination
5 White light LEDs
Recommended BUS Cable
Cat5e or higher
Resolution
700TVL
Communication Protocol
BUS
Sensitivity (Lux)
0.1
Sensor Size (")
1/3
Lens size (mm)
3.6
Operating Temperature (°C)
-20 to +40
Supplied
Fixing Screws, and Wall Plugs, User Manual
Additional Information
Simple 2-core Installation
Ingress Protection
IP55
Mounting
Surface Mounting
Audio
Full Duplex
Viewing Angle (°)
70
Global Selections
Normally Open or Normally Closed; Volt-Free or 12V DC300mA
Accessories
EVBPSBB, APPOWSWDR, APMONW, APMONB, APMONWG, APMONBG, APAUDH, APAUDHBLK, ENTERD, ENTERD-YLR
Dimensions
Dimensions (mm)
165 x 85 x 53
Specifications
| Dimensions (mm) | 165 x 85 x 53 |
|---|---|
| Operating Voltage (V DC) | 24 (BUS) |
| Materials | ABS |
| Weight (Kg) | .39 |
| Effective Distance to PowerSupply (M) | 50 |
| Warranty (Years) | 2 |
| Lock outputs | 2 |
| Illumination | 5 White light LEDs |
| Recommended BUS Cable | Cat5e or higher |
| Resolution | 700TVL |
| Communication Protocol | BUS |
| Sensitivity (Lux) | 0.1 |
| Sensor Size (") | 1/3 |
| Lens size (mm) | 3.6 |
| Operating Temperature (°C) | -20 to +40 |
| Supplied | Fixing Screws, and Wall Plugs, User Manual |
| Additional Information | Simple 2-core Installation |
| Ingress Protection | IP55 |
| Mounting | Surface Mounting |
| Audio | Full Duplex |
| Viewing Angle (°) | 70 |
| Global Selections | Normally Open or Normally Closed; Volt-Free or 12V DC300mA |
| Accessories | EVBPSBB, APPOWSWDR, APMONW, APMONB, APMONWG, APMONBG, APAUDH, APAUDHBLK, ENTERD, ENTERD-YLR |
Dimensions
| Dimensions (mm) | 165 x 85 x 53 |
|---|
Single Way Video Door Station features
