ESP APKITGBLK Colour Video Door Entry System with Record Facility, Black
Free Delivery
£
310
70
(Incl. VAT)
2 Years Warranty
Colour Video Door Entry System with Record Facility, Black
About this product
About this product

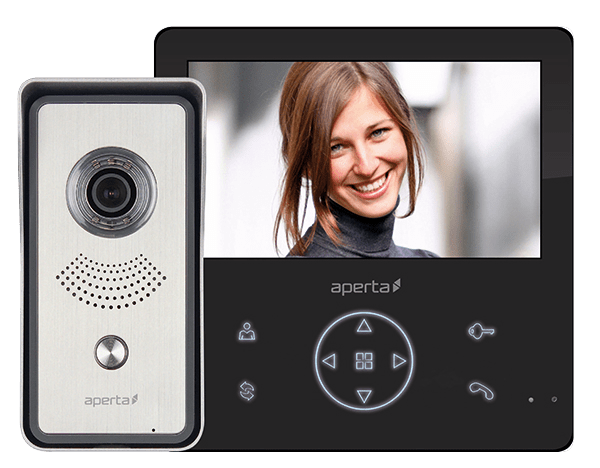

The Aperta APKITGBLK from ESP's Access Control range is a 1 way video door entry kit with record facility, built around a black APMONBG 7’’ colour video door entry monitor. With it come an APDSSW singleway video door station and an APPOWSWDR combined power & bus separator unit, on a simple 2-core installation.
Key features
- APMONBG 7’’ colour monitor with record facility (black), APDSSW singleway video door station and APPOWSWDR combined power & bus separator unit
- Simple 2 core cable installation
- Single power supply (included) supports monitors & outdoor stations, flexible combination of up to 5 devices
- Clear high resolution colour picture on 7’’ hands free TFT monitor
- Optional still or video recording and playback of callers (4GB SD card included); monitor takes a Micro SD card, 32GB max.
- Monitor: graphical user interface, 9 buttons, full duplex audio
- Door station rated IP55; operating temperature -20 to +40 °C
- Cat5e or higher is the recommended BUS cable
Frequently asked questions
What is in the APKITGBLK?
1 x APMONBG 7’’ colour video door entry monitor with record facility, 1 x APPOWSWDR combined power & bus separator unit and 1 x APDSSW singleway video door station, with fixing screws, wall plugs and a user manual.
Can it record callers?
Optional still or video recording and playback of callers is supported, with a 4GB SD card included; the monitor takes a Micro SD card up to 32GB.
What cable does it use?
Installation is simple 2-core, and Cat5e or higher is the recommended BUS cable.
Which part is black?
The APMONBG monitor's colour is black.
What is the door station's IP rating?
IP55.
-
Download
- APKITGBLK Tech Sheet
£
310
70
FAST delivery by Order within
Price
Technical Details
Specifications
Materials
ABS
Communication Protocol
BUS
Recommended BUS Cable
Cat5e or higher
Warranty Years
2
Additional Information
Simple 2-core Installation
Monitor (APMONBG) dimensions (mm)
183 x 185 x 20
Monitor (APMONBG) colour
Black
Monitor (APMONBG) mounting
Surface
Monitor (APMONBG) weight (Kg)
0.55
Monitor (APMONBG) effective distance to power supply (m)
100
Monitor (APMONBG) resolution
800(H) x 3RGB x 480(V)
Monitor (APMONBG) illumination
Backlight Screen and Buttons
Monitor (APMONBG) audio
Full Duplex
Monitor (APMONBG) recording storage device
Micro SD Card (32GB Max.)
Monitor (APMONBG) user interaction
Graphical User Interface 9 Buttons
Monitor (APMONBG) programming type
Graphical User Interface
Monitor (APMONBG) ingress protection
IP20
Monitor and door station operating voltage (V DC)
24 (BUS)
Power unit (APPOWSWDR) dimensions (mm)
90 x 60 x 105
Power unit (APPOWSWDR) mounting
Surface or DIN Rail
Power unit (APPOWSWDR) supply voltage (V AC)
100 - 230
Power unit (APPOWSWDR) effective distance to monitor (m)
100
Power unit (APPOWSWDR) ingress protection
IP20
Door station (APDSSW) dimensions (mm)
165 x 85 x 53
Door station (APDSSW) mounting
Surface Mounting
Door station (APDSSW) weight (Kg)
0.39
Door station (APDSSW) ingress protection
IP55
Door station (APDSSW) operating temperature (°C)
-20 to +40
Dimensions
Door station (APDSSW) (mm)
165 x 85 x 53
Monitor (APMONBG) (mm)
183 x 185 x 20
Power unit (APPOWSWDR) (mm)
90 x 60 x 105
Specifications
| Materials | ABS |
|---|---|
| Communication Protocol | BUS |
| Recommended BUS Cable | Cat5e or higher |
| Warranty Years | 2 |
| Additional Information | Simple 2-core Installation |
| Monitor (APMONBG) dimensions (mm) | 183 x 185 x 20 |
| Monitor (APMONBG) colour | Black |
| Monitor (APMONBG) mounting | Surface |
| Monitor (APMONBG) weight (Kg) | 0.55 |
| Monitor (APMONBG) effective distance to power supply (m) | 100 |
| Monitor (APMONBG) resolution | 800(H) x 3RGB x 480(V) |
| Monitor (APMONBG) illumination | Backlight Screen and Buttons |
| Monitor (APMONBG) audio | Full Duplex |
| Monitor (APMONBG) recording storage device | Micro SD Card (32GB Max.) |
| Monitor (APMONBG) user interaction | Graphical User Interface 9 Buttons |
| Monitor (APMONBG) programming type | Graphical User Interface |
| Monitor (APMONBG) ingress protection | IP20 |
| Monitor and door station operating voltage (V DC) | 24 (BUS) |
| Power unit (APPOWSWDR) dimensions (mm) | 90 x 60 x 105 |
| Power unit (APPOWSWDR) mounting | Surface or DIN Rail |
| Power unit (APPOWSWDR) supply voltage (V AC) | 100 - 230 |
| Power unit (APPOWSWDR) effective distance to monitor (m) | 100 |
| Power unit (APPOWSWDR) ingress protection | IP20 |
| Door station (APDSSW) dimensions (mm) | 165 x 85 x 53 |
| Door station (APDSSW) mounting | Surface Mounting |
| Door station (APDSSW) weight (Kg) | 0.39 |
| Door station (APDSSW) ingress protection | IP55 |
| Door station (APDSSW) operating temperature (°C) | -20 to +40 |
Dimensions
| Door station (APDSSW) (mm) | 165 x 85 x 53 |
|---|---|
| Monitor (APMONBG) (mm) | 183 x 185 x 20 |
| Power unit (APPOWSWDR) (mm) | 90 x 60 x 105 |
