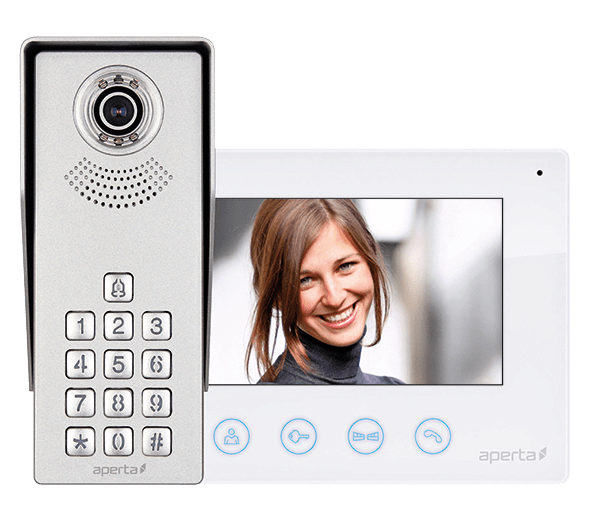

ESP APKITKP Colour Video Door Entry Keypad System, White
Free Delivery
£
283
75
(Incl. VAT)
2 Years Warranty
Colour Video Door Entry Keypad System, White
About this product
About this product
The Aperta APKITKP, from ESP's Access Control range, is a 1 way video door entry kit with keypad. It pairs an APDSSWKP singleway video door station with keypad with a white APMONW 7’’ colour video door entry monitor, powered through an APPOWSWDR combined power & bus separator unit, on a simple 2-core installation.
Key features
- APDSSWKP singleway video door station with keypad, APMONW 7’’ colour monitor (white) and APPOWSWDR combined power & bus separator unit
- Simple 2 core cable installation
- Single power supply (included) supports monitors & outdoor stations, flexible combination of up to 5 devices
- Outdoor station with built in keypad for code door unlocking: 0 - 9, *, # and Bell; up to 10 access codes of 2 - 6 digits
- Clear high resolution colour picture on 7” hands free TFT monitor
- Door station: 700 TVL, 3.6 mm lens, 0.1 lux; aluminium alloy, IP55; 2 lock outputs
- Monitor: 4 buttons, programmed by 7 x DIP switches; 2 speakers, full duplex audio
- Recommended BUS cable: Cat5e or higher
Frequently asked questions
What is in the APKITKP?
1 x APDSSWKP singleway video door station with keypad, 1 x APMONW 7’’ colour video door entry monitor and 1 x APPOWSWDR combined power & bus separator unit, with fixing screws, wall plugs and a user manual.
How many access codes can the keypad hold?
Up to 10, each of 2 - 6 digits.
Can the door station be flush mounted?
Yes, with the APDSKPFMS; it can also be surface mounted.
Which part is white?
The APMONW monitor; the door station is aluminium alloy.
How far can each unit be from the power supply?
The APPOWSWDR's effective distance is 50 m to the door station and 100 m to the monitor.
-
Download
- APKITKP Tech Sheet
£
283
75
FAST delivery by Order within
Price
Technical Details
Specifications
Communication Protocol
BUS
Recommended BUS Cable
Cat5e or higher
Warranty Years
2
Additional Information
Simple 2-core Installation; High-Resolution Colour Camera
Door station (APDSSWKP) dimensions (mm)
200 x 87 x 53
Door station (APDSSWKP) materials
Aluminium Alloy
Door station (APDSSWKP) mounting
Surface & Flush (requires APDSKPFMS) Mounted
Door station (APDSSWKP) weight (Kg)
0.64
Door station (APDSSWKP) effective distance to power supply (m)
50
Door station (APDSSWKP) global selections
Normally Open or Normally Closed; Volt-Free or 12V DC300mA
Door station (APDSSWKP) lock outputs
2
Door station (APDSSWKP) resolution
700 TVL
Door station (APDSSWKP) sensor size (")
1/3
Door station (APDSSWKP) lens size (mm)
3.6
Door station (APDSSWKP) sensitivity (Lux)
0.1
Door station (APDSSWKP) user interaction
0 - 9, *, #, and Bell
Door station (APDSSWKP) code lengths
2 - 6
Door station (APDSSWKP) maximum access codes
10
Door station (APDSSWKP) ingress protection
IP55
Door station (APDSSWKP) operating temperature (°C)
-20 to +40
Monitor (APMONW) dimensions (mm)
152 x 215 x 18
Monitor (APMONW) colour
White
Monitor (APMONW) materials
ABS
Monitor (APMONW) mounting
Surface
Monitor (APMONW) effective distance to power supply (m)
100
Monitor (APMONW) master/slave
Yes (set by 6th DIP Switch)
Monitor (APMONW) detection zone end of line
Yes (set by 7th DIP Switch)
Monitor (APMONW) screen size (inches)
7
Monitor (APMONW) resolution
800(H) x 3RGB x 480(V)
Monitor (APMONW) illumination
Backlight Screen and Buttons
Monitor (APMONW) number of speakers
2
Monitor (APMONW) adjustments
Volume, Brightness, and Contrast Dials
Monitor (APMONW) user interaction
4 buttons
Monitor (APMONW) programming type
7 x DIP switches
Monitor (APMONW) maximum settable address
32 (set by first 5 DIP Switches)
Monitor (APMONW) ingress protection
IP20
Monitor (APMONW) weight (Kg)
0.45
Door station and monitor operating voltage (V DC)
24 (BUS)
Door station and monitor audio
Full Duplex
Power unit (APPOWSWDR) dimensions (mm)
90 x 60 x 105
Power unit (APPOWSWDR) materials
ABS
Power unit (APPOWSWDR) mounting
Surface or DIN Rail
Power unit (APPOWSWDR) supply voltage (V AC)
100 - 230
Power unit (APPOWSWDR) BUS output
24V DC @ 800mA
Power unit (APPOWSWDR) effective distance to door station (m)
50
Power unit (APPOWSWDR) effective distance to monitor (m)
100
Power unit (APPOWSWDR) ingress protection
IP20
Kit contents
APDSSWKP door station with keypad x 1; APMONW monitor x 1; APPOWSWDR combined power & bus separator unit x 1
Accessories
EVBPSBB: 12V Lock power supply with battery backup; ENTERD: Flush Electric Lock; ENTERD-YLR: Surface Electric Lock
Dimensions
Door station (APDSSWKP) (mm)
200 x 87 x 53
Monitor (APMONW) (mm)
152 x 215 x 18
Power unit (APPOWSWDR) (mm)
90 x 60 x 105
Specifications
| Communication Protocol | BUS |
|---|---|
| Recommended BUS Cable | Cat5e or higher |
| Warranty Years | 2 |
| Additional Information | Simple 2-core Installation; High-Resolution Colour Camera |
| Door station (APDSSWKP) dimensions (mm) | 200 x 87 x 53 |
| Door station (APDSSWKP) materials | Aluminium Alloy |
| Door station (APDSSWKP) mounting | Surface & Flush (requires APDSKPFMS) Mounted |
| Door station (APDSSWKP) weight (Kg) | 0.64 |
| Door station (APDSSWKP) effective distance to power supply (m) | 50 |
| Door station (APDSSWKP) global selections | Normally Open or Normally Closed; Volt-Free or 12V DC300mA |
| Door station (APDSSWKP) lock outputs | 2 |
| Door station (APDSSWKP) resolution | 700 TVL |
| Door station (APDSSWKP) sensor size (") | 1/3 |
| Door station (APDSSWKP) lens size (mm) | 3.6 |
| Door station (APDSSWKP) sensitivity (Lux) | 0.1 |
| Door station (APDSSWKP) user interaction | 0 - 9, *, #, and Bell |
| Door station (APDSSWKP) code lengths | 2 - 6 |
| Door station (APDSSWKP) maximum access codes | 10 |
| Door station (APDSSWKP) ingress protection | IP55 |
| Door station (APDSSWKP) operating temperature (°C) | -20 to +40 |
| Monitor (APMONW) dimensions (mm) | 152 x 215 x 18 |
| Monitor (APMONW) colour | White |
| Monitor (APMONW) materials | ABS |
| Monitor (APMONW) mounting | Surface |
| Monitor (APMONW) effective distance to power supply (m) | 100 |
| Monitor (APMONW) master/slave | Yes (set by 6th DIP Switch) |
| Monitor (APMONW) detection zone end of line | Yes (set by 7th DIP Switch) |
| Monitor (APMONW) screen size (inches) | 7 |
| Monitor (APMONW) resolution | 800(H) x 3RGB x 480(V) |
| Monitor (APMONW) illumination | Backlight Screen and Buttons |
| Monitor (APMONW) number of speakers | 2 |
| Monitor (APMONW) adjustments | Volume, Brightness, and Contrast Dials |
| Monitor (APMONW) user interaction | 4 buttons |
| Monitor (APMONW) programming type | 7 x DIP switches |
| Monitor (APMONW) maximum settable address | 32 (set by first 5 DIP Switches) |
| Monitor (APMONW) ingress protection | IP20 |
| Monitor (APMONW) weight (Kg) | 0.45 |
| Door station and monitor operating voltage (V DC) | 24 (BUS) |
| Door station and monitor audio | Full Duplex |
| Power unit (APPOWSWDR) dimensions (mm) | 90 x 60 x 105 |
| Power unit (APPOWSWDR) materials | ABS |
| Power unit (APPOWSWDR) mounting | Surface or DIN Rail |
| Power unit (APPOWSWDR) supply voltage (V AC) | 100 - 230 |
| Power unit (APPOWSWDR) BUS output | 24V DC @ 800mA |
| Power unit (APPOWSWDR) effective distance to door station (m) | 50 |
| Power unit (APPOWSWDR) effective distance to monitor (m) | 100 |
| Power unit (APPOWSWDR) ingress protection | IP20 |
| Kit contents | APDSSWKP door station with keypad x 1; APMONW monitor x 1; APPOWSWDR combined power & bus separator unit x 1 |
| Accessories | EVBPSBB: 12V Lock power supply with battery backup; ENTERD: Flush Electric Lock; ENTERD-YLR: Surface Electric Lock |
Dimensions
| Door station (APDSSWKP) (mm) | 200 x 87 x 53 |
|---|---|
| Monitor (APMONW) (mm) | 152 x 215 x 18 |
| Power unit (APPOWSWDR) (mm) | 90 x 60 x 105 |
