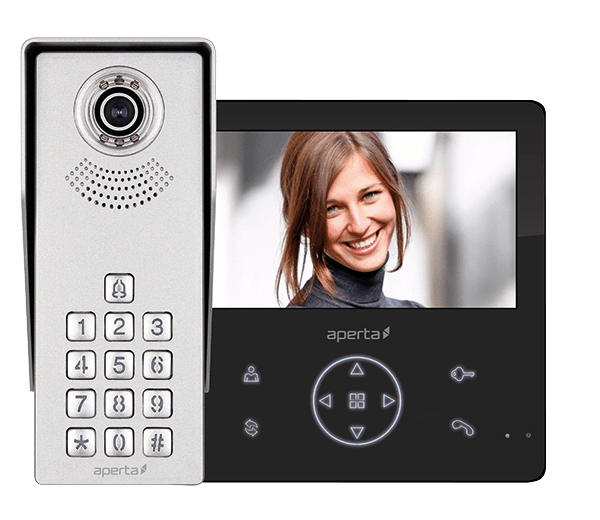

ESP APKITKPGBLK Colour Video Door Entry Keypad System with Record Facility, Black
Free Delivery
£
336
12
(Incl. VAT)
2 Years Warranty
Colour Video Door Entry Keypad System with Record Facility, Black
About this product
About this product
The ESP APKITKPGBLK, from ESP's Access Control range, is a 1 way video door entry kit with keypad and record facility, wired on a simple 2 core BUS. It pairs the APDSSWKP singleway video door station with keypad and the black APMONBG 7" colour monitor with record facility, powered by the APPOWSWDR combined power and bus separator unit.
Key features
- Simple 2 core cable installation (BUS, Cat5e or higher recommended)
- Single power supply (included) supports monitors & outdoor stations, flexible combination of up to 5 devices
- Clear high resolution colour picture on 7" hands free TFT monitor; full duplex audio
- Optional still or video recording and playback of callers; 4GB SD card included, micro SD up to 32GB
- Door station keypad: 0 - 9, *, # and Bell; up to 10 access codes of 2 - 6 digits
- Door station: 700 TVL camera, 3.6 mm lens, 0.1 lux; aluminium alloy, IP55
- Door station: 2 lock outputs; global selections: normally open or normally closed, volt-free or 12V DC300mA
- APPOWSWDR: 100 - 230 V AC in, 24V DC @ 800mA BUS output, surface or DIN rail mounting
Frequently asked questions
What is in the APKITKPGBLK kit?
The APDSSWKP singleway video door station with keypad, the APMONBG 7" colour monitor with record facility and the APPOWSWDR combined power and bus separator unit.
What cable does it need?
It is a simple 2 core cable installation; Cat5e or higher is recommended for the BUS.
Can it record visitors?
Yes. Optional still or video recording and playback of callers, with a 4GB SD card included.
How many devices can the power supply run?
A flexible combination of up to 5 devices, monitors and outdoor stations.
Can the door station be flush mounted?
Yes, with the APDSKPFMS.
How many access codes does the keypad hold?
Up to 10, each 2 - 6 digits.
-
Download
- APKITKPGBLK Tech Sheet
£
336
12
FAST delivery by Order within
Price
Technical Details
Specifications
Illumination
5 White light LEDs
Adjustments
Volume, Brightness, and Contrast
Lens size (mm)
3.6
Storage Device
Micro SD Card (32GB Max.)
Sensitivity (Lux)
0.1
Communication Protocol
BUS
Code Lengths
2 - 6
Recommended BUS Cable
Cat5e or higher
Maximum Access Codes
10
Effective Distance to Doorstation (m)
50
Effective Distance to Monitor (m)
100
Warranty Years
2
Additional Information
Simple 2-core Installation
Door station (APDSSWKP) materials
Aluminium Alloy
Monitor (APMONBG) and power unit (APPOWSWDR) materials
ABS
Power unit (APPOWSWDR) dimensions (mm)
90 x 60 x 105
Door station (APDSSWKP) dimensions (mm)
200 x 87 x 53
Monitor (APMONBG) dimensions (mm)
183 x 185 x 20
Power unit (APPOWSWDR) mounting
Surface or DIN Rail
Door station (APDSSWKP) mounting
Surface & Flush (requires APDSKPFMS)
Monitor (APMONBG) colour
Black
Monitor (APMONBG) weight (Kg)
0.55
Door station (APDSSWKP) weight (Kg)
0.64
Door station and monitor operating voltage (V DC)
24 (BUS)
Door station (APDSSWKP) effective distance to power supply (m)
50
Monitor (APMONBG) effective distance to power supply (m)
100
Door station (APDSSWKP) global selections
Normally Open or Normally Closed; Volt-Free or 12V DC300mA
Door station (APDSSWKP) lock outputs
2
Monitor (APMONBG) master/slave
Yes (set by menus)
Door station (APDSSWKP) camera resolution
700 TVL
Monitor (APMONBG) resolution
800(H) x 3RGB x 480(V)
Monitor (APMONBG) screen size (inches)
7
Monitor (APMONBG) number of speakers
2
Door station (APDSSWKP) user interaction
0 - 9, *, #, and Bell
Monitor (APMONBG) programming type
Graphical User Interface
Door station (APDSSWKP) operating temperature (°C)
-20 to +40
Power unit (APPOWSWDR) supply voltage (V AC)
100 - 230
Power unit (APPOWSWDR) BUS output
24V DC @ 800mA
Door station (APDSSWKP) ingress protection
IP55
Monitor and power unit ingress protection
IP20
Dimensions
Door station (APDSSWKP) (mm)
200 x 87 x 53
Monitor (APMONBG) (mm)
183 x 185 x 20
Power unit (APPOWSWDR) (mm)
90 x 60 x 105
Specifications
| Illumination | 5 White light LEDs |
|---|---|
| Adjustments | Volume, Brightness, and Contrast |
| Lens size (mm) | 3.6 |
| Storage Device | Micro SD Card (32GB Max.) |
| Sensitivity (Lux) | 0.1 |
| Communication Protocol | BUS |
| Code Lengths | 2 - 6 |
| Recommended BUS Cable | Cat5e or higher |
| Maximum Access Codes | 10 |
| Effective Distance to Doorstation (m) | 50 |
| Effective Distance to Monitor (m) | 100 |
| Warranty Years | 2 |
| Additional Information | Simple 2-core Installation |
| Door station (APDSSWKP) materials | Aluminium Alloy |
| Monitor (APMONBG) and power unit (APPOWSWDR) materials | ABS |
| Power unit (APPOWSWDR) dimensions (mm) | 90 x 60 x 105 |
| Door station (APDSSWKP) dimensions (mm) | 200 x 87 x 53 |
| Monitor (APMONBG) dimensions (mm) | 183 x 185 x 20 |
| Power unit (APPOWSWDR) mounting | Surface or DIN Rail |
| Door station (APDSSWKP) mounting | Surface & Flush (requires APDSKPFMS) |
| Monitor (APMONBG) colour | Black |
| Monitor (APMONBG) weight (Kg) | 0.55 |
| Door station (APDSSWKP) weight (Kg) | 0.64 |
| Door station and monitor operating voltage (V DC) | 24 (BUS) |
| Door station (APDSSWKP) effective distance to power supply (m) | 50 |
| Monitor (APMONBG) effective distance to power supply (m) | 100 |
| Door station (APDSSWKP) global selections | Normally Open or Normally Closed; Volt-Free or 12V DC300mA |
| Door station (APDSSWKP) lock outputs | 2 |
| Monitor (APMONBG) master/slave | Yes (set by menus) |
| Door station (APDSSWKP) camera resolution | 700 TVL |
| Monitor (APMONBG) resolution | 800(H) x 3RGB x 480(V) |
| Monitor (APMONBG) screen size (inches) | 7 |
| Monitor (APMONBG) number of speakers | 2 |
| Door station (APDSSWKP) user interaction | 0 - 9, *, #, and Bell |
| Monitor (APMONBG) programming type | Graphical User Interface |
| Door station (APDSSWKP) operating temperature (°C) | -20 to +40 |
| Power unit (APPOWSWDR) supply voltage (V AC) | 100 - 230 |
| Power unit (APPOWSWDR) BUS output | 24V DC @ 800mA |
| Door station (APDSSWKP) ingress protection | IP55 |
| Monitor and power unit ingress protection | IP20 |
Dimensions
| Door station (APDSSWKP) (mm) | 200 x 87 x 53 |
|---|---|
| Monitor (APMONBG) (mm) | 183 x 185 x 20 |
| Power unit (APPOWSWDR) (mm) | 90 x 60 x 105 |
