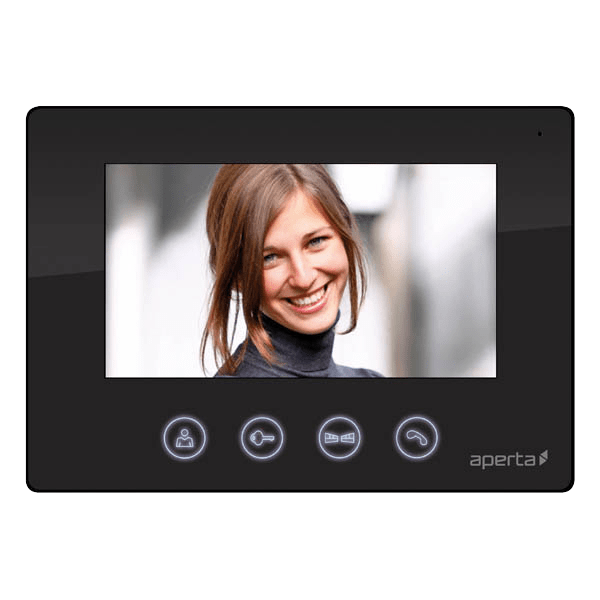

ESP APMONB Colour Video Door Entry Monitor, Black
About this product
The ESP APMONB is a Colour Video Door Entry Monitor, Black. Featuring a black finish, it is built for dependable professional installation.
Key Features
- Simple 2 core cable installation
- 7" TFT screen with clear high resolution colour picture
- Durable white or black casing
- A black finish
- Genuine ESP door entry system supplied by WME
In Detail
ESP's door entry system equipment lets occupants see and control who reaches the door, a practical security and convenience upgrade for homes, offices and communal entrances.
Designed for simple two-core or IP installation, the range is straightforward to commission and expand, with consistent ESP componentry that works together reliably.
The ESP APMONB is a practical choice wherever a reliable door entry system is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | ESP |
| Product code | APMONB |
| Dimensions (mm) | 152 x 215 x 18 |
| Operating Voltage (V DC) | 24 (BUS) |
| Colour | Black |
| Effective Distance to PowerSupply (M) | 100 |
| Materials | ABS |
| Master/Slave | Yes (set by 6th DIP Switch) |
| Weight (Kg) | .45 |
| Recommended BUS Cable | Cat5e or higher |
| Warranty (Years) | 2 |
| Communication Protocol | BUS |
| Screen Size (Inches) | 7 |
| Illumination | Backlight Screen and Buttons |
| Resolution | 800(H) x 3RGB x 480(V) |
| Adjustments | Volume, Brightness, and Contrast Dials |
| User Interaction | 4 buttons |
| Type | 7 x DIP switches |
| Maximum Settable Address | 32 (set by first 5 DIP Switches) |
| Operating Temperature (°C) | 0 to +40 |
| Supplied | Fixing Screws, and Wall Plugs, Sur face Mount Bracket, User Manual |
| Internal Call Facility | APPOWSWDR: Aperta Singleway BUS power supply |
| Additional Information | Simple 2-core Installation |
| GTIN | 5060224106259 |
| Commodity Code | 8517180000 |
