ESP APMONBG Colour Video Door Entry Monitor with Record Facility, Black
Free Delivery
£
182
10
(Incl. VAT)
2 Years Warranty
Colour Video Door Entry Monitor with Record Facility, Black
About this product
About this product

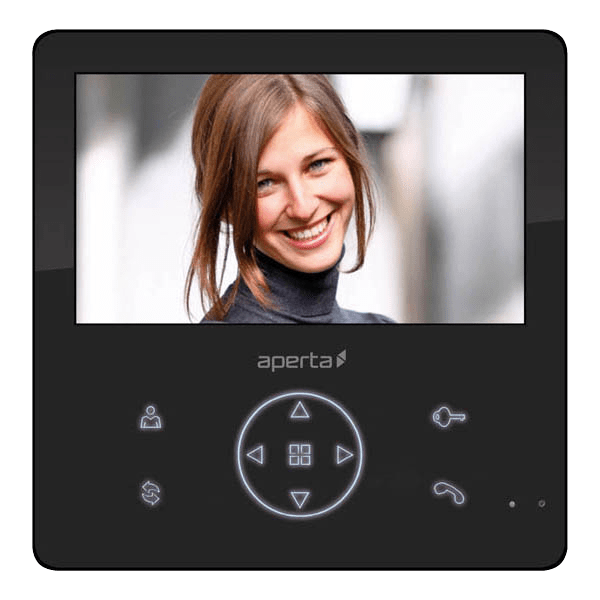

The Aperta APMONBG, from ESP's Access Control range, is a black 7” colour video door entry monitor with record facility. It runs at 24 V DC (BUS) on a simple 2 core cable installation, offers still or video recording and playback of callers, and comes with a 4GB SD card.
Key features
- 7" TFT screen with clear high resolution colour picture, 800(H) x 3RGB x 480(V)
- Still or video recording, playback of callers; 4GB SD card included
- Micro SD card storage, 32GB max.
- On screen menu, simple set up & customisation; graphical user interface, 9 buttons
- Full duplex audio; internal call and day/night facilities
- Simple 2 core cable installation; 24 V DC (BUS)
- For use with both single way & multiway applications
Frequently asked questions
Can it record callers?
Yes. It can record videos or images to local storage or SD card, and plays back callers; a 4GB SD card is included.
What size of memory card does it take?
Micro SD card, 32GB max.
What cable does it need?
Simple 2 core cable installation; Cat5e or higher is the recommended BUS cable.
Can it be used on multiway systems?
Yes. It is for use with both single way and multiway applications.
How is it powered?
From the BUS at 24 V DC, with an effective distance to the power supply of 100 m.
-
Download
- APMONBG Tech Sheet
£
182
10
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
183 x 185 x 20
Operating Voltage (V DC)
24 (BUS)
Colour
Black
Effective Distance to PowerSupply (M)
100
Materials
ABS
Master/Slave
Yes (set by menus)
Weight (Kg)
.55
Recommended BUS Cable
Cat5e or higher
Warranty (Years)
2
Communication Protocol
BUS
Screen Size (Inches)
7
Storage Device
Micro SD Card (32GB Max.)
Illumination
Backlight Screen and Buttons
Resolution
800(H) x 3RGB x 480(V)
Adjustments
Volume, Brightness, and Contrast Dials
User Interaction
Graphical User Interface 9 Buttons
Maximum Settable Address
32 (set by menus)
Operating Temperature (°C)
0 to +40
Supplied
Fixing Screws, and Wall Plugs, Surface Mount Bracket, User Manual
Additional Information
Simple 2-core Installation
Ingress Protection
IP20
Mounting
Surface
Audio
Full Duplex
Programming Type
Graphical User Interface
Features
Internal Call Facility, Can Record Videos/Images to local Storage or SD Card, Day/Night Facility
Accessories
APPOWSWDR: Aperta Singleway BUS power supply, APDSSW: Aperta BUS Single Way Door Station, APDSSWKP: Aperta BUS Single Way Door Station With Keypad, APDSMW: Aperta BUS Multi Way Door Station, APDSPXMW: Aperta BUS Multi Way Proximity Door Station
Dimensions
Dimensions (mm)
183 x 185 x 20
Specifications
| Dimensions (mm) | 183 x 185 x 20 |
|---|---|
| Operating Voltage (V DC) | 24 (BUS) |
| Colour | Black |
| Effective Distance to PowerSupply (M) | 100 |
| Materials | ABS |
| Master/Slave | Yes (set by menus) |
| Weight (Kg) | .55 |
| Recommended BUS Cable | Cat5e or higher |
| Warranty (Years) | 2 |
| Communication Protocol | BUS |
| Screen Size (Inches) | 7 |
| Storage Device | Micro SD Card (32GB Max.) |
| Illumination | Backlight Screen and Buttons |
| Resolution | 800(H) x 3RGB x 480(V) |
| Adjustments | Volume, Brightness, and Contrast Dials |
| User Interaction | Graphical User Interface 9 Buttons |
| Maximum Settable Address | 32 (set by menus) |
| Operating Temperature (°C) | 0 to +40 |
| Supplied | Fixing Screws, and Wall Plugs, Surface Mount Bracket, User Manual |
| Additional Information | Simple 2-core Installation |
| Ingress Protection | IP20 |
| Mounting | Surface |
| Audio | Full Duplex |
| Programming Type | Graphical User Interface |
| Features | Internal Call Facility, Can Record Videos/Images to local Storage or SD Card, Day/Night Facility |
| Accessories | APPOWSWDR: Aperta Singleway BUS power supply, APDSSW: Aperta BUS Single Way Door Station, APDSSWKP: Aperta BUS Single Way Door Station With Keypad, APDSMW: Aperta BUS Multi Way Door Station, APDSPXMW: Aperta BUS Multi Way Proximity Door Station |
Dimensions
| Dimensions (mm) | 183 x 185 x 20 |
|---|
