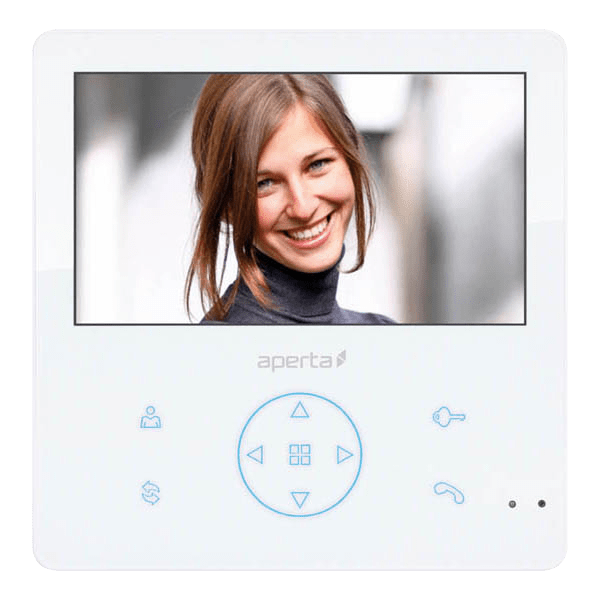

ESP APMONWG Colour Video Door Entry Monitor with Record Facility, White
Free Delivery
£
172
84
(Incl. VAT)
2 Years Warranty
Colour Video Door Entry Monitor with Record Facility, White
About this product
About this product
The Aperta APMONWG from ESP's Access Control range is a 7" colour video door entry monitor with record facility, in white. It records videos or images to local storage or an SD card, has an internal call facility and a day/night facility, and is for use with both single way and multiway applications on a simple 2-core BUS installation.
Key features
- 7" TFT screen with clear high resolution colour picture; 800(H) x 3RGB x 480(V)
- Optional still or video recording and playback of callers (4GB SD card included); Micro SD card, 32GB max.
- Internal call facility and day/night facility
- On screen menu for simple system set up & customisation; graphical user interface, 9 buttons
- Full duplex audio; volume, brightness and contrast dials
- Simple 2 core cable installation; BUS, Cat5e or higher recommended
- For use with both single way & multiway applications
- White ABS, surface mounting, IP20
Frequently asked questions
Can the APMONWG record callers?
Yes. It can record videos/images to local storage or an SD card; recording and playback of callers is optional, with a 4GB SD card included and Micro SD cards up to 32GB supported.
Can it be used on a multiway system?
It is for use with both single way and multiway applications.
What cable does it use?
Simple 2-core installation on the BUS; Cat5e or higher is recommended.
How far can it be from the power supply?
Its effective distance to the power supply is 100 m.
What is supplied with it?
Fixing screws, wall plugs, a surface mount bracket and a user manual.
-
Download
- APMONWG Tech Sheet
£
172
84
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
183 x 185 x 20
Operating Voltage (V DC)
24 (BUS)
Colour
White
Effective Distance to PowerSupply (M)
100
Materials
ABS
Master/Slave
Yes (set by menus)
Weight (Kg)
.55
Recommended BUS Cable
Cat5e or higher
Warranty (Years)
2
Communication Protocol
BUS
Screen Size (Inches)
7
Storage Device
Micro SD Card (32GB Max.)
Illumination
Backlight Screen and Buttons
Resolution
800(H) x 3RGB x 480(V)
Adjustments
Volume, Brightness, and Contrast Dials
User Interaction
Graphical User Interface 9 Buttons
Maximum Settable Address
32 (set by menus)
Operating Temperature (°C)
0 to +40
Supplied
Fixing Screws, and Wall Plugs, Surface Mount Bracket, User Manual
Additional Information
Simple 2-core Installation
Mounting
Surface
Audio
Full Duplex
Programming Type
Graphical User Interface
Ingress Protection
IP20
Features
Internal Call Facility; Can Record Videos/Images to local Storage or SD Card; Day/Night Facility
Accessories
APPOWSWDR: Aperta Singleway BUS power supply; APDSSW: Aperta BUS Single Way Door Station; APDSSWKP: Aperta BUS Single Way Door Station With Keypad; APDSMW: Aperta BUS Multi Way Door Station; APDSPXMW: Aperta BUS Multi Way Proximity Door Station
Dimensions
Dimensions (mm)
183 x 185 x 20
Specifications
| Dimensions (mm) | 183 x 185 x 20 |
|---|---|
| Operating Voltage (V DC) | 24 (BUS) |
| Colour | White |
| Effective Distance to PowerSupply (M) | 100 |
| Materials | ABS |
| Master/Slave | Yes (set by menus) |
| Weight (Kg) | .55 |
| Recommended BUS Cable | Cat5e or higher |
| Warranty (Years) | 2 |
| Communication Protocol | BUS |
| Screen Size (Inches) | 7 |
| Storage Device | Micro SD Card (32GB Max.) |
| Illumination | Backlight Screen and Buttons |
| Resolution | 800(H) x 3RGB x 480(V) |
| Adjustments | Volume, Brightness, and Contrast Dials |
| User Interaction | Graphical User Interface 9 Buttons |
| Maximum Settable Address | 32 (set by menus) |
| Operating Temperature (°C) | 0 to +40 |
| Supplied | Fixing Screws, and Wall Plugs, Surface Mount Bracket, User Manual |
| Additional Information | Simple 2-core Installation |
| Mounting | Surface |
| Audio | Full Duplex |
| Programming Type | Graphical User Interface |
| Ingress Protection | IP20 |
| Features | Internal Call Facility; Can Record Videos/Images to local Storage or SD Card; Day/Night Facility |
| Accessories | APPOWSWDR: Aperta Singleway BUS power supply; APDSSW: Aperta BUS Single Way Door Station; APDSSWKP: Aperta BUS Single Way Door Station With Keypad; APDSMW: Aperta BUS Multi Way Door Station; APDSPXMW: Aperta BUS Multi Way Proximity Door Station |
Dimensions
| Dimensions (mm) | 183 x 185 x 20 |
|---|
