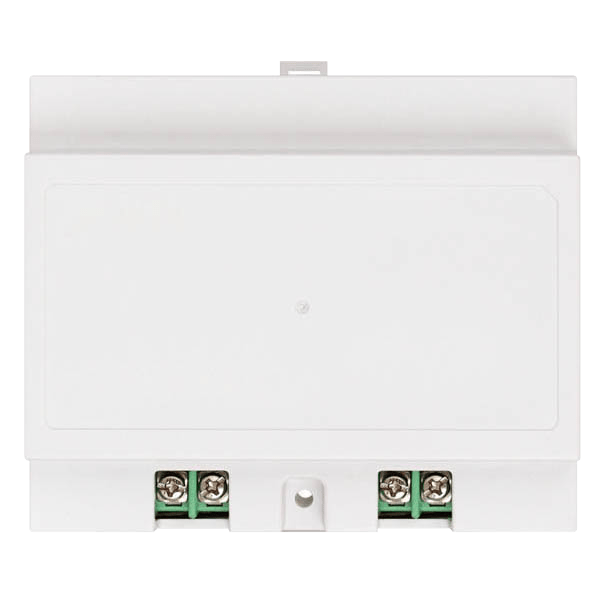

ESP APSEPMW Power Bus Separator Unit for Multi Way System
£
21
19
(Incl. VAT)
2 Years Warranty
Power Bus Separator Unit for Multi Way System
About this product
About this product
The ESP APSEPMW, from ESP's Access Control range, is a power bus separator unit for multiway systems: it creates BUS for use with Aperta BUS systems and is for use with the APPOWMW power supply.
Key features
- Multi way system component, for use with multi-way Aperta applications
- 24 V DC operating voltage
- Effective distance to door station 50 m; to monitor 100 m
- Recommended BUS cable Cat5e or higher; maximum wiring distance 100 m
- Simple 2-core installation
- Surface or DIN rail mounting
- IP20 ingress protection
Frequently asked questions
Which power supply is the APSEPMW used with?
The APPOWMW power supply.
How far can the door station be?
The effective distance to the door station is 50 m.
What cable is recommended?
Cat5e or higher.
How is it mounted?
Surface or DIN rail.
-
Download
- APSEPMW Tech Sheet
£
21
19
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
170 x 90 x 42
Operating Voltage (V DC)
24
Materials
ABS
BUS Output
Creates BUS for use with Aperta BUS systems
Warranty (Years)
2
Effective Distance to Doorstation (M)
50
Recommended BUS Cable
Cat5e or higher
Communication Protocol
BUS
Maximum Wiring Distance (m)
100
Additional Information
Simple 2-core Installation
Mounting
Surface or DIN Rail
Ingress Protection
IP20
Effective Distance to Monitor (M)
100
Accessories
APMONW, APMONB, APMONWG, APMONBG, APAUDH, APAUDHBLK, APDSMW, APDSPXMW, APBC4MW
Dimensions
Dimensions (mm)
170 x 90 x 42
Specifications
| Dimensions (mm) | 170 x 90 x 42 |
|---|---|
| Operating Voltage (V DC) | 24 |
| Materials | ABS |
| BUS Output | Creates BUS for use with Aperta BUS systems |
| Warranty (Years) | 2 |
| Effective Distance to Doorstation (M) | 50 |
| Recommended BUS Cable | Cat5e or higher |
| Communication Protocol | BUS |
| Maximum Wiring Distance (m) | 100 |
| Additional Information | Simple 2-core Installation |
| Mounting | Surface or DIN Rail |
| Ingress Protection | IP20 |
| Effective Distance to Monitor (M) | 100 |
| Accessories | APMONW, APMONB, APMONWG, APMONBG, APAUDH, APAUDHBLK, APDSMW, APDSPXMW, APBC4MW |
Dimensions
| Dimensions (mm) | 170 x 90 x 42 |
|---|
