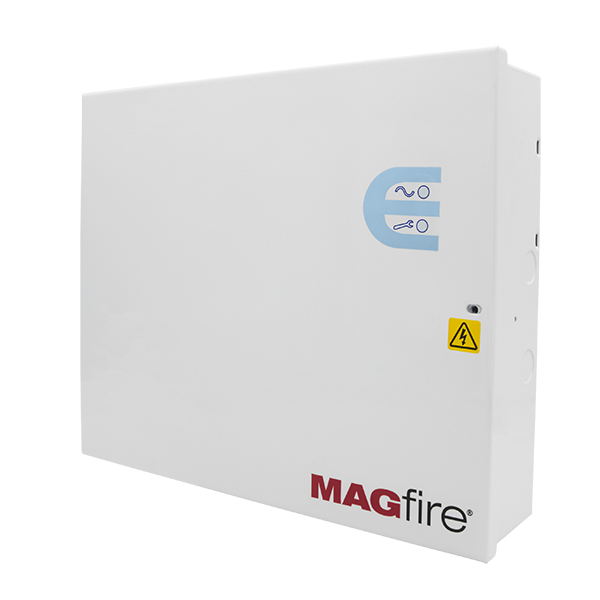

ESP BPS2EN EN54-4 2A PSU
Free Delivery
£
258
74
(Incl. VAT)
3 Years Warranty
EN54-4 2A PSU
About this product
About this product
Certified to EN54-4, the ESP BPS2EN is a 24V 2A power supply unit from ESP's Fire Protection range, with optional battery backup. It runs from 93 - 264 V AC and supplies 27.6 V DC @ 2A on a single output.
Key features
- Certified to EN54-4
- 27.6 V DC @ 2A rated output, 1 output
- 93 - 264 V AC supply
- LED indication for mains status, output fault, battery fault and charger fault
- Optional battery backup, 2 x 12V batteries up to 7Ah (BAT7)
- Batteries not included
- White powder coated steel housing, 275 x 330 x 80 mm; -10 to +40 °C
Frequently asked questions
Is the BPS2EN certified to EN54-4?
Yes. It is EN54-4 certified.
What output does it give?
27.6 V DC @ 2A on 1 output.
What does the LED indication show?
Mains status, output fault, battery fault and charger fault.
Which batteries does it take?
2 x 12V batteries of up to 7Ah, such as the BAT7; they are not included.
What mains supply does it accept?
93 - 264 V AC.
-
Download
- BPS2EN Tech Sheet
£
258
74
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
275 x 330 x 80
Colour
White
Materials
Housing: Powder Coated Steel
Warranty (Years)
3
Supply Voltage (V AC)
93 - 264
Battery Backup
Yes
Batteries Required
2 x 12V (up to 7Ah - BAT7)
Number of Outputs
1
Rated Output (DC)
27.6 @ 2A
Operating Temperature (°C)
-10 to +40
Certification
EN54-4 Certified
Status Indication
LED Indication for: Mains Status, Output Fault, Battery Fault, Charger Fault
Dimensions
Dimensions (mm)
275 x 330 x 80
Specifications
| Dimensions (mm) | 275 x 330 x 80 |
|---|---|
| Colour | White |
| Materials | Housing: Powder Coated Steel |
| Warranty (Years) | 3 |
| Supply Voltage (V AC) | 93 - 264 |
| Battery Backup | Yes |
| Batteries Required | 2 x 12V (up to 7Ah - BAT7) |
| Number of Outputs | 1 |
| Rated Output (DC) | 27.6 @ 2A |
| Operating Temperature (°C) | -10 to +40 |
| Certification | EN54-4 Certified |
| Status Indication | LED Indication for: Mains Status, Output Fault, Battery Fault, Charger Fault |
Dimensions
| Dimensions (mm) | 275 x 330 x 80 |
|---|
