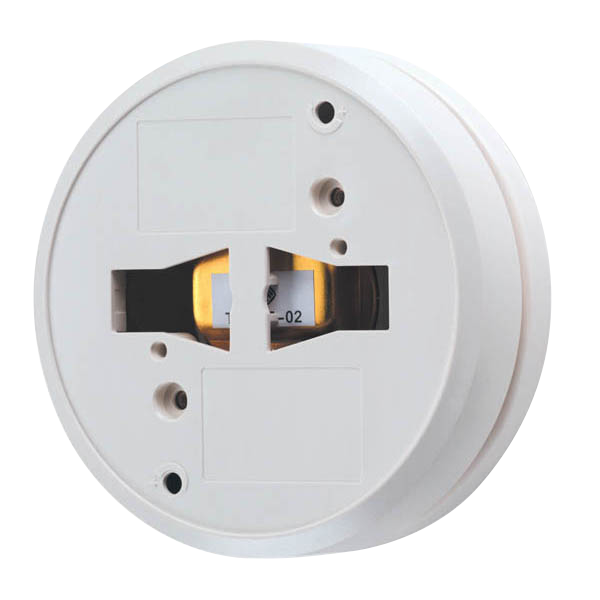

ESP DBS-2 Detector Base Sounder
£
45
93
(Incl. VAT)
3 Years Warranty
Detector Base Sounder
About this product
About this product
The MAGFIRE DBS-2, from ESP's Fire Protection range, is a detector base sounder for conventional 4-wire sounder circuits. It has 4 tones and a sound output of 93 dB at 1m.
Key features
- Detector base sounder for conventional 4-wire sounder circuits
- 4 tones
- Sound output 93 dB at 1m
- 12 & 24 V DC operation
- Red (DBS-LIDR) and white (DBS-LIDW) lids are accessories for it
- Marked EN54-3
Frequently asked questions
What circuits is the DBS-2 for?
Conventional 4-wire sounder circuits.
How loud is the DBS-2?
93 dB at 1m.
How many tones does it have?
4.
What voltage does it run at?
12 & 24 V DC.
Which EN54 part is it marked to?
EN54-3.
-
Download
- DBS-2 Tech Sheet
£
45
93
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
110 x 99 x 50
Number of Available Tones
4
Warranty (Years)
3
Operating Voltage (V DC)
12 & 24
Maximum Cable Size (mm²)
2.5
Current Consumption (W)
12
Sound Output @ 1m (db)
93
Operating Temperature (°C)
-30 to +70
Materials
ABS
Wiring Type
4-Wire Conventional
Accessories
DBS-LIDR: Red Lid for DBS-2; DBS-LIDW: White Lid for DBS-2
Features
Compatible with 4-Wire Conventional Sounder Circuits
Dimensions
Dimensions (mm)
110 x 99 x 50
Specifications
| Dimensions (mm) | 110 x 99 x 50 |
|---|---|
| Number of Available Tones | 4 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 12 & 24 |
| Maximum Cable Size (mm²) | 2.5 |
| Current Consumption (W) | 12 |
| Sound Output @ 1m (db) | 93 |
| Operating Temperature (°C) | -30 to +70 |
| Materials | ABS |
| Wiring Type | 4-Wire Conventional |
| Accessories | DBS-LIDR: Red Lid for DBS-2; DBS-LIDW: White Lid for DBS-2 |
| Features | Compatible with 4-Wire Conventional Sounder Circuits |
Dimensions
| Dimensions (mm) | 110 x 99 x 50 |
|---|
Detector Base Sounder features
ESP DBS-2 Detector Base Sounder
