ESP BD1 50m Beam Detector Expandable Up to 120m
Free Delivery
£
1,430
86
(Incl. VAT)
3 Years Warranty
50m Beam Detector Expandable Up to 120m
About this product
About this product

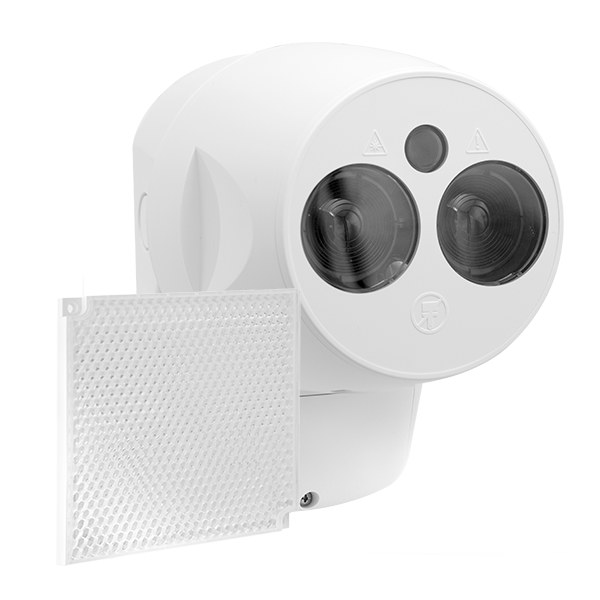

The ESP BD1, from ESP's Fire Protection range, is a 50M beam detector, expandable up to 120M with the reflective long range kit (BD1LRK). It has integral laser alignment and auto align automatic beam alignment, and it is supplied with a single piece reflector.
Key features
- Up to 50m range; expandable to 120m with the BD1LRK
- Integral laser alignment; auto align automatic beam alignment
- Operations: laser assisted, auto-alignment, manual alignment
- Alarm response threshold levels 25%, 35% (default), 55% and 85%, configured via the integrated user interface
- Single piece reflector supplied
- Wiring type: 2-wire conventional, 4-wire conventional, analogue addressable
- Operating voltage 14 - 36 V DC; power consumption <33 mA
- IP55; EN54-12
Frequently asked questions
What range does the BD1 cover?
0 to 50 m, or 0 to 120 m with the BD1LRK long range kit of 4 reflectors.
Is a reflector included?
Yes: a single piece reflector is supplied with the BD1.
How is it aligned?
Laser assisted, auto-alignment or manual alignment; it has integral laser alignment and auto align automatic beam alignment.
What alarm thresholds can be set?
25%, 35% (the default), 55% or 85%, configured via the integrated user interface.
Which wiring types does it suit?
2-wire conventional, 4-wire conventional and analogue addressable.
-
Download
- BD1 Tech Sheet
£
1,430
86
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
181 x 130 x 134
Available Operations
Laser Assisted, Auto-alignment, Manual Alignment
Response Threshold Levels
25% (1.25dB) - Fastest Response to Smoke; 35% (1.87dB) - Default Value; 55% (3.46dB) - High Immunity to False Alarms, Slow Response to Smoke; 85% (8.23dB) - Highest Immunity to False Alarms, Slowest Reponse to Smoke; All Configured VIA the Integrated User Interface
Alignment Status Indication
2 Green LEDs and 1 Yellow LED
System Status Indication
Normal Operation - Green LED Flashing Every 10 Seconds; Alarm Condition - Red LED Flashing Every 5 Seconds; Fault Condition - Yellow LED Flashing Every 10 Seconds for Obscuration of Every 5 Seconds for Contamination
Optical Wavelength - Smoke Detection
850
Optical Wavelength - Laser Alignment (nm)
650 (Class 3R <5mW)
Maximum Angular Misalignment of Reflector (°)
±5
Beam Detection Range (m)
0 to 50, 0 to 120 (With BD1LRK)
Beam Path Clearance (m)
1 in diameter from Detector and Reflector
Weight (Kg)
0.7
Warranty (Years)
3
Operating Voltage (V DC)
14 - 36
Cable Size (mm²)
0.5 - 1.5
Power Consumption (mA)
<33
Operating Temperature (°C)
20 to 55
Storage Temperature (°C)
-40 to +85
Relative Humidity Resistance (%)
<93
Supplied
Beam Detector
Ingress Protection
IP55
Fault level / Rapid obscuration (Δ ≤ 2 Seconds)
≥ 85%
Maximum Angular Alignment of Reflective Detector (°)
±4.5
Maximum Angular Misalignment of Reflective Detector (°)
±0.5
Materials
Polycarbonate UL94:V0
Wiring Type
2-Wire Conventional, 4-Wire Conventional, Analogue Addressable
Features
Long Range Kit of 4 Reflectors to Increase BD1 Range From 50m to 120m.; Single Piece Reflector Supplied with BD1
Dimensions
Dimensions (mm)
181 x 130 x 134
Specifications
| Dimensions (mm) | 181 x 130 x 134 |
|---|---|
| Available Operations | Laser Assisted, Auto-alignment, Manual Alignment |
| Response Threshold Levels | 25% (1.25dB) - Fastest Response to Smoke; 35% (1.87dB) - Default Value; 55% (3.46dB) - High Immunity to False Alarms, Slow Response to Smoke; 85% (8.23dB) - Highest Immunity to False Alarms, Slowest Reponse to Smoke; All Configured VIA the Integrated User Interface |
| Alignment Status Indication | 2 Green LEDs and 1 Yellow LED |
| System Status Indication | Normal Operation - Green LED Flashing Every 10 Seconds; Alarm Condition - Red LED Flashing Every 5 Seconds; Fault Condition - Yellow LED Flashing Every 10 Seconds for Obscuration of Every 5 Seconds for Contamination |
| Optical Wavelength - Smoke Detection | 850 |
| Optical Wavelength - Laser Alignment (nm) | 650 (Class 3R <5mW) |
| Maximum Angular Misalignment of Reflector (°) | ±5 |
| Beam Detection Range (m) | 0 to 50, 0 to 120 (With BD1LRK) |
| Beam Path Clearance (m) | 1 in diameter from Detector and Reflector |
| Weight (Kg) | 0.7 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 14 - 36 |
| Cable Size (mm²) | 0.5 - 1.5 |
| Power Consumption (mA) | <33 |
| Operating Temperature (°C) | 20 to 55 |
| Storage Temperature (°C) | -40 to +85 |
| Relative Humidity Resistance (%) | <93 |
| Supplied | Beam Detector |
| Ingress Protection | IP55 |
| Fault level / Rapid obscuration (Δ ≤ 2 Seconds) | ≥ 85% |
| Maximum Angular Alignment of Reflective Detector (°) | ±4.5 |
| Maximum Angular Misalignment of Reflective Detector (°) | ±0.5 |
| Materials | Polycarbonate UL94:V0 |
| Wiring Type | 2-Wire Conventional, 4-Wire Conventional, Analogue Addressable |
| Features | Long Range Kit of 4 Reflectors to Increase BD1 Range From 50m to 120m.; Single Piece Reflector Supplied with BD1 |
Dimensions
| Dimensions (mm) | 181 x 130 x 134 |
|---|
