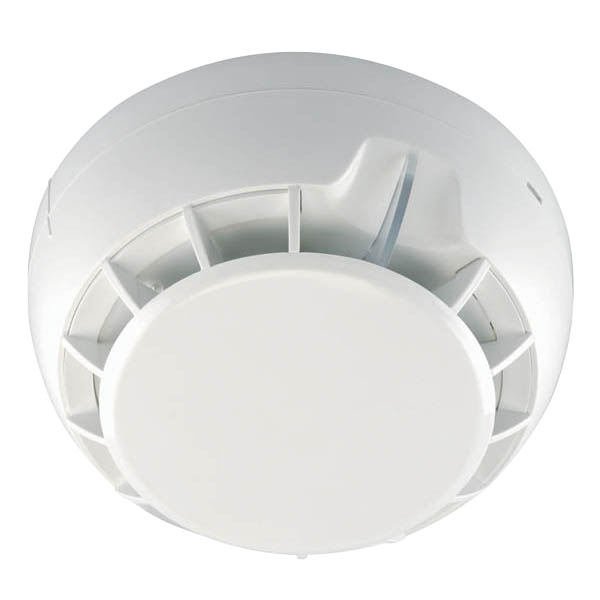

ESP PSD2 Optical Smoke Detector, 24V
£
15
61
(Incl. VAT)
3 Years Warranty
Optical Smoke Detector, 24V
About this product
About this product
The ESP PSD2 is an Optical Smoke Detector, 24V.
Key Features
- Auto temperature compensation
- Digital processing algorithm
- Low profile design
- LED indication with 360° visibility
- Genuine ESP optical smoke detector supplied by WME
-
Download
- PSD2 Tech Sheet
£
15
61
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø102 x 48 (Including Base)
Colour
White
Materials
Housing: ABS
Test Facility
Simulated Smoke
Weight (Kg)
0.16
Warranty (Years)
3
Operating Voltage (V DC)
9 - 30
Cable Size (mm²)
0.4 - 2.0 (Twin)
Current @ 24V (mA)
49
Standby Current @ 24v (µA)
<60
Wiring Type
4-Wire Conventional
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM
Dimensions
Dimensions (mm)
ø102 x 48 (Including Base)
Specifications
| Dimensions (mm) | ø102 x 48 (Including Base) |
|---|---|
| Colour | White |
| Materials | Housing: ABS |
| Test Facility | Simulated Smoke |
| Weight (Kg) | 0.16 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Cable Size (mm²) | 0.4 - 2.0 (Twin) |
| Current @ 24V (mA) | 49 |
| Standby Current @ 24v (µA) | <60 |
| Wiring Type | 4-Wire Conventional |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM |
Dimensions
| Dimensions (mm) | ø102 x 48 (Including Base) |
|---|
Optical Smoke Detector, 24V features
