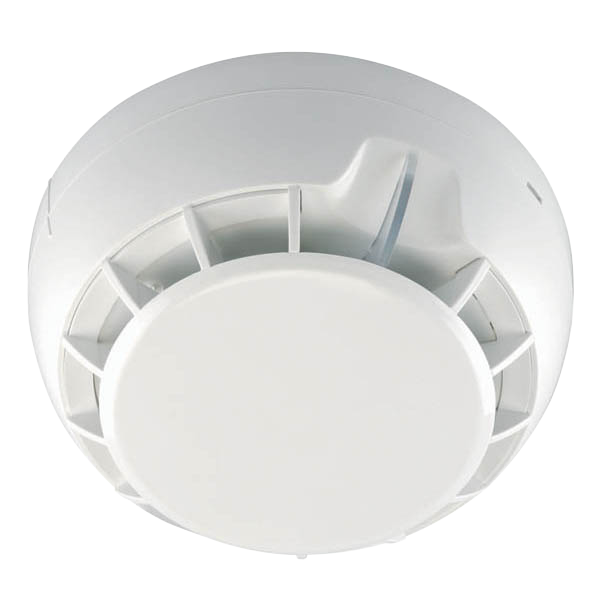

ESP RHD212 Rate of Rise Heat Detector, 12V
£
13
36
(Incl. VAT)
3 Years Warranty
Rate of Rise Heat Detector, 12V
About this product
About this product
Detecting above 58°C or a rapid change in temperature, the ESP RHD212 is a class A1R rate of rise heat detector from ESP's Fire Protection range. It runs from 9 - 30 V DC and is marked EN54-5.
Key features
- Detects above 58°C or a rapid change in temperature
- Rate of rise heat detection, class A1R
- Digital processing algorithm
- Low profile design
- LED indication with 360° visibility; sensor status indication every 8 seconds
- For MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM
- Marked EN54-5
Frequently asked questions
At what temperature does the RHD212 detect?
It detects above 58°C or a rapid change in temperature.
Which products is it compatible with?
The MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM.
What supply does it need?
9 - 30 V DC. It draws under 50 µA in standby at 12 V.
How is it tested?
With a heat source.
Which standard is it marked to?
EN54-5.
-
Download
- RHD212 Tech Sheet
£
13
36
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø102 x 48 (Including Base)
Colour
White
Materials
Housing: ABS
Test Facility
Heat Source
Class
A1R
Weight (Kg)
0.16
Warranty (Years)
3
Operating Voltage (V DC)
9 - 30
Current @ 12V (mA)
29
Cable Size (mm²)
0.4 - 2.0 (Twin)
Standby Current @ 12V (µA)
<50
Wiring Type
4-Wire Conventional
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM
Ingress Protection
IP30
Standards
EN54-5
Dimensions
Dimensions (mm)
ø102 x 48 (Including Base)
Specifications
| Dimensions (mm) | ø102 x 48 (Including Base) |
|---|---|
| Colour | White |
| Materials | Housing: ABS |
| Test Facility | Heat Source |
| Class | A1R |
| Weight (Kg) | 0.16 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Current @ 12V (mA) | 29 |
| Cable Size (mm²) | 0.4 - 2.0 (Twin) |
| Standby Current @ 12V (µA) | <50 |
| Wiring Type | 4-Wire Conventional |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM |
| Ingress Protection | IP30 |
| Standards | EN54-5 |
Dimensions
| Dimensions (mm) | ø102 x 48 (Including Base) |
|---|
