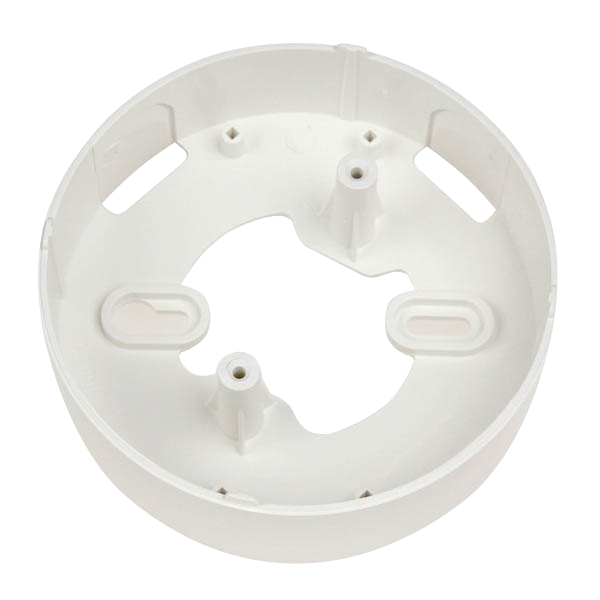

ESP SD-DB Detector Deep Base
About this product
The ESP SD-DB, from ESP's Fire Protection range, is a white detector deep base for 4-wire conventional (MAGFIRE) and analogue addressable (MAGPRO) detectors. It allows mounting in a surface cable entry application or on a rough, uneven surface.
Key features
- Deep base for 4-wire conventional (MAGFIRE) and analogue addressable (MAGPRO) detectors
- For mounting in a surface cable entry application or on a rough, uneven surface
- Can be used as an adaptor plate for an addressable sounder base
- Suitable for use with MAGPRO-DB, MAGPRO-DBS, MAGPRO-DBSS, PSD2, CSD2, PSD212 and CSD212
- ABS housing, white; ø102 x 28 mm, 0.32 kg
Frequently asked questions
Which detectors is the SD-DB a deep base for?
4-wire conventional (MAGFIRE) and analogue addressable (MAGPRO) detectors; it is a deep base for the PSD2, CSD2, PSD212 and CSD212.
When is a deep base used?
It allows mounting in a surface cable entry application or on a rough, uneven surface.
Can it be used with a sounder base?
Yes, it can be used as an adaptor plate for an addressable sounder base.
Which MAGPRO bases is it suitable for use with?
The MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS.
-
Download
- SD-DB Tech Sheet
Specifications
Dimensions
Specifications
| Dimensions (mm) | ø102 x 28 |
|---|---|
| Colour | White |
| Materials | Housing: ABS |
| Weight (Kg) | 0.32 |
| Warranty (Years) | 3 |
| Compatible Products | MAGPRO-DB, MAGPRO-DBS, MAGPRO-DBSS, PSD2, CSD2, PSD212, CSD212 |
| Features | Deepbase for 4-wire Conventional (MAGFIRE) & Analogue Addressable (MAGPRO) Detectors |
Dimensions
| Dimensions (mm) | ø102 x 28 |
|---|
Detector Deep Base features
ESP SD-DB Detector Deep Base
