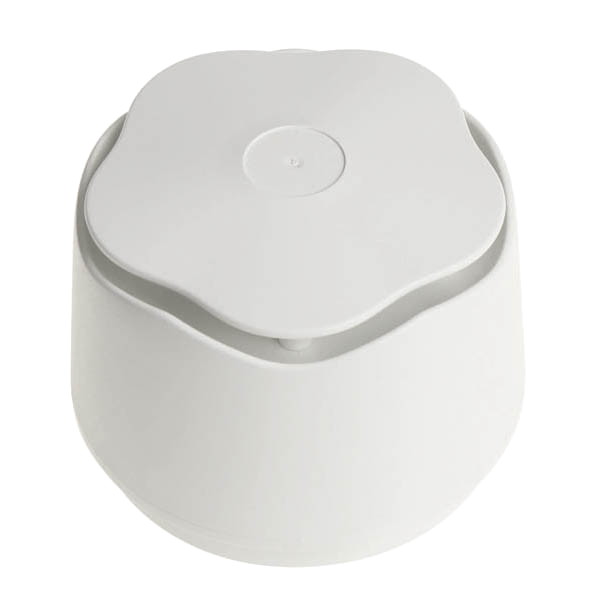

ESP BA-2W White Banshee Sounder, 76-110 dB @ 1m
£
26
60
(Incl. VAT)
3 Years Warranty
WHITE banshee excel SOUNDER (87-112 dba)
About this product
About this product
For conventional 4-wire sounder circuits, the ESP BA-2W from ESP's Fire Protection range is a white banshee sounder in a flame retardant ABS housing. It has 32 user selectable tones and 3 volume levels, gives a sound output at 1m of 76 - 110 dB, and is approved to EN54-3.
Key features
- Suitable for conventional 4-wire sounder circuits
- 32 user selectable tones; 3 volume levels: low (-20dBA), medium (-10dBA) and high
- Sound output @ 1m: 76 - 110 dB
- Easy push and twist lockable base; side and rear cable entry
- Operating voltage 9 - 30 V DC; power consumption 3 - 30 mA
- White flame retardant ABS housing, ø90 x 75 mm (including base)
- Approved to EN54-3
Frequently asked questions
Which circuits is the BA-2W for?
Conventional 4-wire sounder circuits.
How many tones and volume levels does it have?
32 user selectable tones and 3 volume levels: low (-20dBA), medium (-10dBA) and high.
How loud is it?
Sound output at 1m is 76 - 110 dB.
What voltage does it need?
9 - 30 V DC, with a power consumption of 3 - 30 mA.
Which accessories are there for it?
The BA-DB IP rated sounder base (IP66) and the BA-DB-WMB wall mounting bracket, which requires the BA-DB.
-
Download
- BA-2W Tech Sheet
£
26
60
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø90 x 75 (Including Base)
Colour
White
Materials
Housing: Flame retardant ABS
Volume levels
3; Low (-20dBA) , Medium (-10dBA) & High
Number of Available Tones
32
Warranty (Years)
3
Operating Voltage (V DC)
9 - 30
Cable Size (mm²)
0.28 - 2.5
Power Consumption (mA)
3 - 30
Sound Output @ 1m (db)
76 - 110
Operating Temperature (°C)
-25 to +70
Weight
0.25 kg
GTIN
5060224100981
Commodity Code
8531103000
Accessories
BA-DB: IP Rated Sounder Base (IP66); BA-DB-WMB: Wall Mounting Bracket (requires BA-DB)
Features
Compatible with Conventional Sounder Circuits
Wiring Type
4-Wire Conventional
Dimensions
Dimensions (mm)
ø90 x 75 (Including Base)
Specifications
| Dimensions (mm) | ø90 x 75 (Including Base) |
|---|---|
| Colour | White |
| Materials | Housing: Flame retardant ABS |
| Volume levels | 3; Low (-20dBA) , Medium (-10dBA) & High |
| Number of Available Tones | 32 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Cable Size (mm²) | 0.28 - 2.5 |
| Power Consumption (mA) | 3 - 30 |
| Sound Output @ 1m (db) | 76 - 110 |
| Operating Temperature (°C) | -25 to +70 |
| Weight | 0.25 kg |
| GTIN | 5060224100981 |
| Commodity Code | 8531103000 |
| Accessories | BA-DB: IP Rated Sounder Base (IP66); BA-DB-WMB: Wall Mounting Bracket (requires BA-DB) |
| Features | Compatible with Conventional Sounder Circuits |
| Wiring Type | 4-Wire Conventional |
Dimensions
| Dimensions (mm) | ø90 x 75 (Including Base) |
|---|
WHITE banshee excel SOUNDER (87-112 dba) features
