ESP APKITAO Audio Door Entry System
£
31
63
(Incl. VAT)
2 Years Warranty
Audio Door Entry System
About this product
About this product

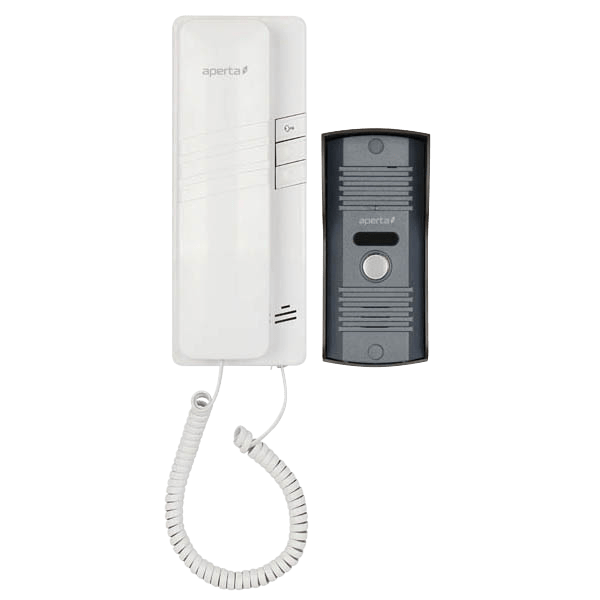

The ESP APKITAO, from ESP's Access Control range, is a 1 way audio door entry kit: an audio-only door station, rated IP55, with an APKITAOH audio handset and a 12V500mA PSU. It has 2 way audio and a lock release option, over a 2 core cable installation with a wiring distance up to 100 metres.
Key features
- Kit contents: door station and wall bracket, handset and wall bracket, 12V500mA PSU, user manual, screws and wall plugs
- Single way audio door entry; 2 way audio
- Weatherproof door station, rated IP55; operating temperature -20 to 50 °C
- Lock release option: the handset's lock output is a normally open relay (volt-free)
- 2 core cable installation; wiring distance up to 100 metres
- Door station recommended BUS cable: Cat5e or higher
- Handset (APKITAOH): white ABS, IP20, surface mounted
Frequently asked questions
What is in the APKITAO kit?
A door station and wall bracket, a handset and wall bracket, a 12V500mA PSU, a user manual, and screws and wall plugs.
Is the door station weatherproof?
Yes: it is a weatherproof door station, rated IP55.
Can it release a door lock?
It has a lock release option; the handset's lock output is a normally open relay (volt-free).
How far can the door station be wired?
Up to 100 metres.
What cable does the door station use?
The recommended BUS cable is Cat5e or higher, as a 2 core cable installation.
-
Download
- APKITAO Tech Sheet
£
31
63
FAST delivery by Order within
Price
Technical Details
Specifications
Mounting
Surface
Operating Voltage (V DC)
12
Connection Type
2.1mm x 5.5mm DC Socket
Power Consumption (mA)
<=50
Warranty Years
2
Kit contents
Doorstation and Wall Bracket, Handset and Wall Bracket, 12V500mA PSU, User Manual, Screws and Wall plugs
Door station dimensions (mm)
150 x 85 x 60
Handset (APKITAOH) colour
White
Handset (APKITAOH) materials
ABS
Handset (APKITAOH) lock output
Normally Open Relay (Volt-Free)
Door station recommended BUS cable
Cat5e or higher
Door station wiring distance (m)
100
Door station ingress protection
IP55
Handset (APKITAOH) ingress protection
IP20
Door station operating temperature (°C)
-20 to 50
Accessories
EVBPSBB: 12V Lock power supply with battery backup; APKITAOH: Aperta Audio Only Handset
Dimensions
Audio-only door station (mm)
150 x 85 x 60
Specifications
| Mounting | Surface |
|---|---|
| Operating Voltage (V DC) | 12 |
| Connection Type | 2.1mm x 5.5mm DC Socket |
| Power Consumption (mA) | <=50 |
| Warranty Years | 2 |
| Kit contents | Doorstation and Wall Bracket, Handset and Wall Bracket, 12V500mA PSU, User Manual, Screws and Wall plugs |
| Door station dimensions (mm) | 150 x 85 x 60 |
| Handset (APKITAOH) colour | White |
| Handset (APKITAOH) materials | ABS |
| Handset (APKITAOH) lock output | Normally Open Relay (Volt-Free) |
| Door station recommended BUS cable | Cat5e or higher |
| Door station wiring distance (m) | 100 |
| Door station ingress protection | IP55 |
| Handset (APKITAOH) ingress protection | IP20 |
| Door station operating temperature (°C) | -20 to 50 |
| Accessories | EVBPSBB: 12V Lock power supply with battery backup; APKITAOH: Aperta Audio Only Handset |
Dimensions
| Audio-only door station (mm) | 150 x 85 x 60 |
|---|
