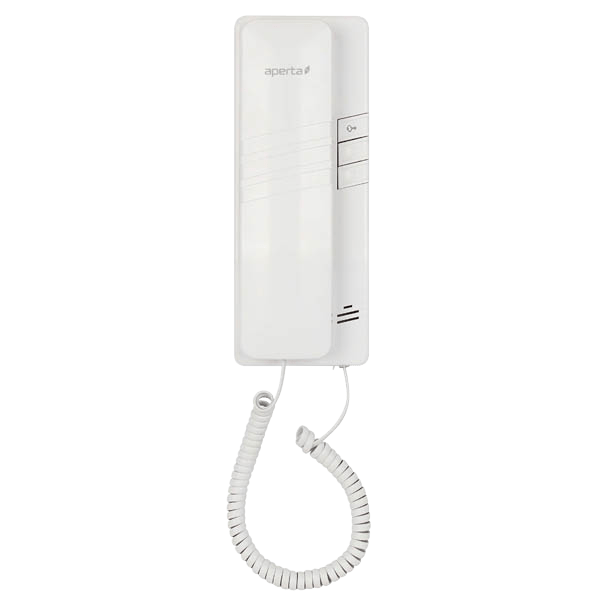

ESP APKITAOH Additional Audio Door Entry Handset
About this product
The ESP APKITAOH, from ESP's Access Control range, is an additional audio handset for the APKITAO Aperta audio only kit. It slaves off the existing APKITAO handset over a simple 2 core cable installation, with clear 2 way audio and a lock release option.
Key features
- Additional handset for use with APKITAO
- Slaves off the existing APKITAO handset
- Simple 2 core cable installation; wiring distance up to 100 metres
- Clear 2 way audio
- Lock release option; lock output normally open relay (volt-free)
- Push to make button; key button on handset
- 12 V DC, <=50 mA, 2.1mm x 5.5mm DC socket
- White ABS, surface mounting, wall bracket supplied
Frequently asked questions
What does the APKITAOH work with?
It is an additional handset for use with APKITAO, slaving off the existing APKITAO handset.
How is it wired?
Simple 2 core cable installation, with a wiring distance up to 100 metres.
Can it release a lock?
Yes, it has a lock release option; the lock output is a normally open relay (volt-free).
How is it powered?
12 V DC through a 2.1mm x 5.5mm DC socket, with a power consumption of <=50 mA; a 12V 500mA power supply unit is supplied.
What is in the box?
Handset and wall bracket, 12V 500mA power supply unit, user manual, screws and wall plugs.
-
Download
- APKITAOH Tech Sheet
Specifications
Specifications
| Operating Voltage (V DC) | 12 |
|---|---|
| Colour | White |
| Power Consumption (mA) | <=50 |
| Materials | ABS |
| Warranty (Years) | 2 |
| Connection Type | 2.1mm x 5.5mm DC Socket |
| Operating Temperature (°C) | -20 to +50 |
| Operation | Push to make button; key button on handset |
| Lock Output | Normally Open Relay (Volt-Free) |
| Mounting | Surface |
| Ingress Protection | IP20 |
| Wiring Distance | Up to 100 metres |
| Supplied | Handset and Wall Bracket, 12V 500mA Power Supply Unit, User Manual, Screws and Wall plugs |
