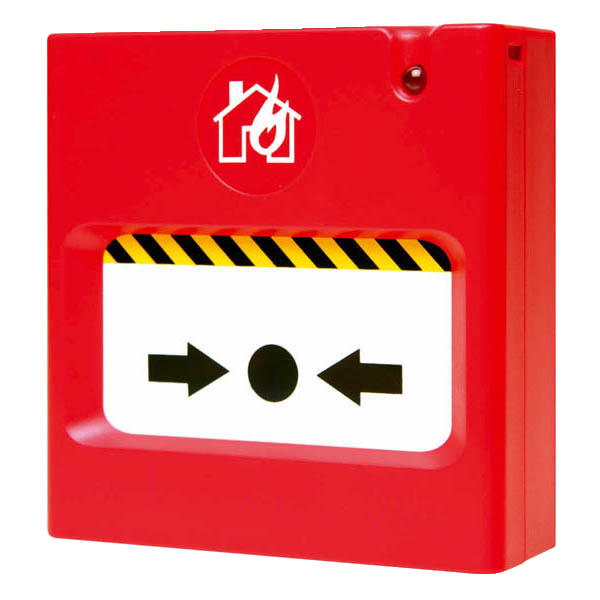

ESP SCP2R Surface Mounting Red Call Point
£
8
23
(Incl. VAT)
3 Years Warranty
surface mounting RED CALL POINT
About this product
About this product
The ESP SCP2R, from ESP's Fire Protection range, is a red resettable manual call point for 4-wire conventional systems, compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM panels. It is supplied complete with a surface back box and also fits a 1 gang back box.
Key features
- Resettable manual call point, red
- 4-wire conventional wiring
- For MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM
- Surface back box included; 1 gang back box mounting
- 9 - 30 V DC, 24 V DC nominal, 38 mA in alarm (24V)
- Type A frangible element
- IP40, -10 to +60 °C
- EN54-11
Frequently asked questions
Which panels is the SCP2R compatible with?
MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM.
Is a back box included?
Yes, a surface back box is included. It can also be mounted on a 1 gang back box.
Is it resettable?
Yes. It is a resettable manual call point; SCP2RK is a pack of 5 spare keys.
What current does it draw in alarm?
38 mA in the alarm state at 24V.
Is there a cover for it?
Yes. SCP2R-CVR is a pack of 5 call point covers.
-
Download
- SCP2R Tech Sheet
£
8
23
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 57 x 90
Colour
Red
Materials
Housing: ABS
Mounting
Surface or Flush
Type of the frangible element
A
Weight (Kg)
0.15
Warranty (Years)
3
Operating Voltage (V DC)
9 - 30
Nominal Operating Voltage (V DC)
24
Cable Size (mm²)
0.4 - 2.0 (Twin)
Current Consumption in alarm state (mA)
38 (24V)
Wiring Type
4-Wire Conventional
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM
GTIN
5060224101032
Commodity Code
8531103000
Ingress Protection
IP40
Dimensions
Dimensions (mm)
90 x 57 x 90
Specifications
| Dimensions (mm) | 90 x 57 x 90 |
|---|---|
| Colour | Red |
| Materials | Housing: ABS |
| Mounting | Surface or Flush |
| Type of the frangible element | A |
| Weight (Kg) | 0.15 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Nominal Operating Voltage (V DC) | 24 |
| Cable Size (mm²) | 0.4 - 2.0 (Twin) |
| Current Consumption in alarm state (mA) | 38 (24V) |
| Wiring Type | 4-Wire Conventional |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM |
| GTIN | 5060224101032 |
| Commodity Code | 8531103000 |
| Ingress Protection | IP40 |
Dimensions
| Dimensions (mm) | 90 x 57 x 90 |
|---|
