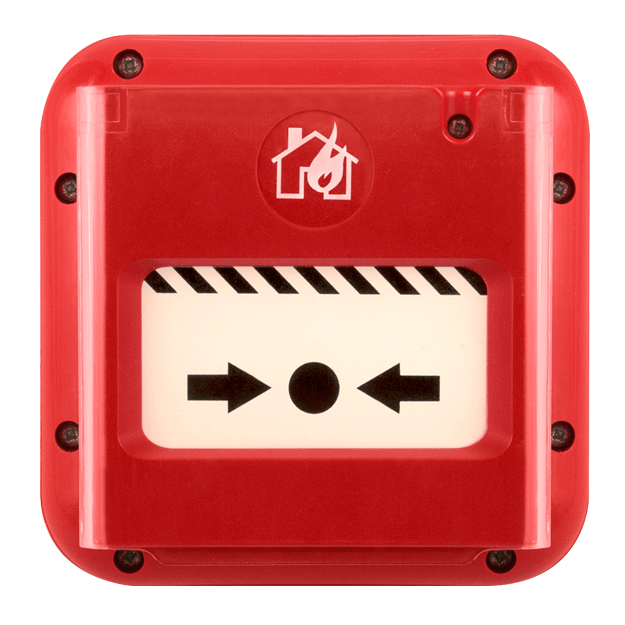

ESP SCP2RIP67 IP67 Rated Manual Call Point
£
97
52
(Incl. VAT)
3 Years Warranty
IP67 Rated Manual Call Point
About this product
About this product
The MAGFIRE SCP2RIP67, from ESP's Fire Protection range, is a red IP67 manual call point for 4-wire conventional systems. It is a resettable call point with a type A frangible element, for surface mounting only, and it is compatible with the MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM.
Key features
- Resettable call point; type A frangible element
- IP67 rated
- 4-wire conventional; 0.4 - 2.0 mm² (twin) cable
- Operating voltage 9 - 30 V DC (nominal 24 V DC); 38 mA (24V) in alarm
- Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM
- Red ABS housing; surface mounting only
- Accessories: SCP2R-CVR call point covers (pack of 5) and SCP2RK spare keys (pack of 5)
Frequently asked questions
What is the SCP2RIP67 compatible with?
The MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM.
Is it resettable?
Yes. It is a resettable call point with a type A frangible element.
What is its ingress protection?
IP67.
Is there a cover for it?
Yes: the SCP2R-CVR call point covers (pack of 5) are an accessory.
How is it mounted?
Surface mounting only.
-
Download
- SCP2RIP67 Tech Sheet
£
97
52
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
114 x 114 x 80
Colour
Red
Materials
Housing: ABS
Mounting
Surface Only
Type of the frangible element
A
Weight (Kg)
0.262
Warranty (Years)
3
Operating Voltage (V DC)
9 - 30
Nominal Operating Voltage (V DC)
24
Cable Size (mm²)
0.4 - 2.0 (Twin)
Current Consumption in alarm state (mA)
38 (24V)
Wiring Type
4-Wire Conventional
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM
Ingress Protection
IP67
Standards
EN54-11
Accessories
SCP2RK: Spare Keys (Pack of 5); SCP2R-CVR: Call Point Covers (Pack of 5)
Features
Resettable call point
Dimensions
Dimensions (mm)
114 x 114 x 80
Specifications
| Dimensions (mm) | 114 x 114 x 80 |
|---|---|
| Colour | Red |
| Materials | Housing: ABS |
| Mounting | Surface Only |
| Type of the frangible element | A |
| Weight (Kg) | 0.262 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Nominal Operating Voltage (V DC) | 24 |
| Cable Size (mm²) | 0.4 - 2.0 (Twin) |
| Current Consumption in alarm state (mA) | 38 (24V) |
| Wiring Type | 4-Wire Conventional |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAG2, MAG2P, MAG4, MAG4P, MAG816 and MAGPRO-CZM |
| Ingress Protection | IP67 |
| Standards | EN54-11 |
| Accessories | SCP2RK: Spare Keys (Pack of 5); SCP2R-CVR: Call Point Covers (Pack of 5) |
| Features | Resettable call point |
Dimensions
| Dimensions (mm) | 114 x 114 x 80 |
|---|
IP67 Rated Manual Call Point features
