ESP EVEXITM Push to Exit Button Mushroom
£
23
18
(Incl. VAT)
2 Years Warranty
PUSH TO EXIT BUTTON MUSHROOM
About this product
About this product

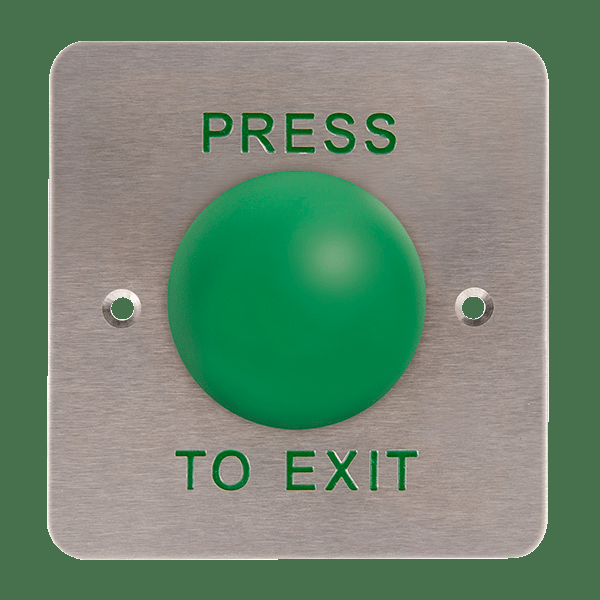

The ESP EVEXITM, from ESP's Access Control range, is a push to exit mushroom release button with a brushed steel fascia and an ABS button. It has normally open & closed contacts with a clean contact output, and clear wording.
Key features
- Large mushroom exit button with clear wording
- Normally open & normally closed contacts; clean contact output
- Brushed steel fascia & ABS button
- 87.5 x 87.5 x 35 mm; 173 g
- Takes cable up to 2.5 mm²
- Surface mount box: UDTASMBSS
Frequently asked questions
What contacts does the EVEXITM have?
Normally open & normally closed contacts, with a clean contact output.
What is the surface mount box for it?
The UDTASMBSS.
What is it made of?
A brushed steel fascia with an ABS button.
What size is it?
87.5 x 87.5 x 35 mm.
What is supplied?
Fixing screws, wall plugs and a user manual.
-
Download
- EVEXITM Tech Sheet
£
23
18
Price
Technical Details
Specifications
Maximum Cable Size (mm²)
2.5
Finish
Brushed Steel
Type
Clean Contact
Materials
Brushed Steel Fascia & ABS Button
Relay Voltage - Maximum (DC)
30
Mounting
Surface & Flush (requires UDTASMBSS) Mounted
Weight (Kg)
.173
Warranty (Years)
2
Operating Temperature (°C)
0 to +50
Supplied
Fixing Screws, and Wall Plugs, User Manual
GTIN
5060654460433
Commodity Code
8536500700
Dimensions (mm)
87.5 x 87.5 x 35
Ingress Protection
IP20
Relay/Contact Type
Normally Open & Normally Closed
Specifications
| Maximum Cable Size (mm²) | 2.5 |
|---|---|
| Finish | Brushed Steel |
| Type | Clean Contact |
| Materials | Brushed Steel Fascia & ABS Button |
| Relay Voltage - Maximum (DC) | 30 |
| Mounting | Surface & Flush (requires UDTASMBSS) Mounted |
| Weight (Kg) | .173 |
| Warranty (Years) | 2 |
| Operating Temperature (°C) | 0 to +50 |
| Supplied | Fixing Screws, and Wall Plugs, User Manual |
| GTIN | 5060654460433 |
| Commodity Code | 8536500700 |
| Dimensions (mm) | 87.5 x 87.5 x 35 |
| Ingress Protection | IP20 |
| Relay/Contact Type | Normally Open & Normally Closed |
