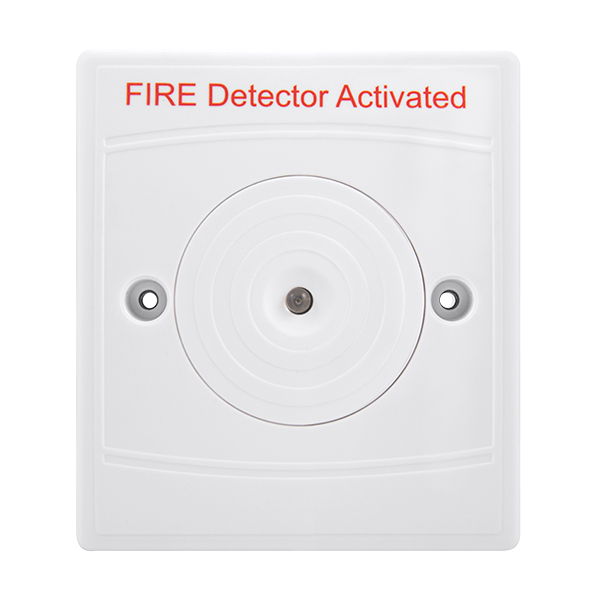

ESP ZRL2 Remote LED Indicator Flush Mount
£
8
23
(Incl. VAT)
3 Years Warranty
REMOTE LED INDICATOR FLUSH MOUNT
About this product
About this product
The ESP ZRL2, from ESP's Fire Protection range, is a remote LED indicator plate for a detector installed within a void. It is used with ASD's bases to indicate the current activation state of a void detector, and it can be surface or flush mounted.
Key features
- Remote LED indicator for a detector installed within a void
- Used with ASD's bases to indicate the current activation state of a void detector
- Permanent flash rate
- 12 - 28 V DC; 22 mA current consumption (conventional)
- Surface or flush mounting
- White, fire rated ABS housing; 100 x 89 x 30.4 mm
Frequently asked questions
What is the ZRL2 for?
It is a remote LED indicator for a detector installed within a void, used with ASD's bases to indicate the current activation state of a void detector.
Can it be flush mounted?
Yes: surface or flush.
What voltage does it need?
12 - 28 V DC.
How much current does it draw?
22 mA on a conventional system; detector dependent on an addressable system.
-
Download
- ZRL2 Tech Sheet
£
8
23
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
100 x 89 x 30.4
Colour
White
Materials
Housing: Fire Rated ABS
Mounting
Surface or Flush
Flash Rate
Permanent
Weight (Kg)
0.6
Warranty (Years)
3
Operating Voltage (V DC)
12 - 28
Current Consumption (Conventional)(mA)
22
Current Consumption (Addressable)
Detector Dependant
Operating Temperature (°C)
-5 to +50
GTIN
5060224101087
Commodity Code
8531103000
Features
Used with ASD’s bases to indicate the current activation state of a void detector
Dimensions
Dimensions (mm)
100 x 89 x 30.4
Specifications
| Dimensions (mm) | 100 x 89 x 30.4 |
|---|---|
| Colour | White |
| Materials | Housing: Fire Rated ABS |
| Mounting | Surface or Flush |
| Flash Rate | Permanent |
| Weight (Kg) | 0.6 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 12 - 28 |
| Current Consumption (Conventional)(mA) | 22 |
| Current Consumption (Addressable) | Detector Dependant |
| Operating Temperature (°C) | -5 to +50 |
| GTIN | 5060224101087 |
| Commodity Code | 8531103000 |
| Features | Used with ASD’s bases to indicate the current activation state of a void detector |
Dimensions
| Dimensions (mm) | 100 x 89 x 30.4 |
|---|
REMOTE LED INDICATOR FLUSH MOUNT features
ESP ZRL2 Remote LED Indicator Flush Mount
