ESP ECSPK6 Smart Alarm Kit 6

What it does

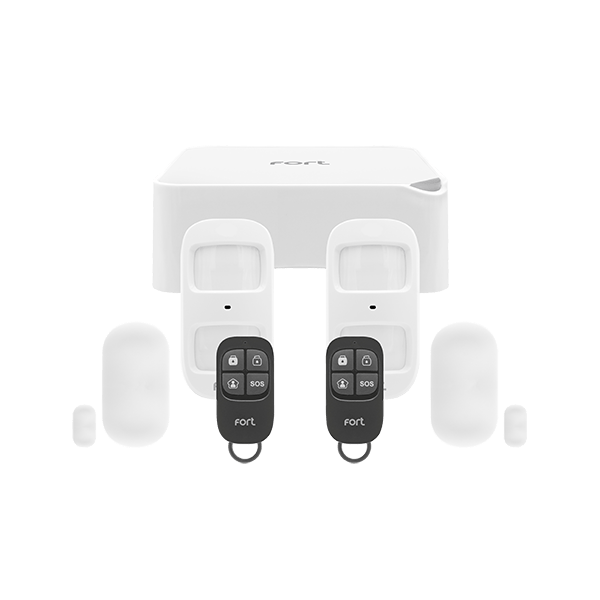

The ECSPK6 kit pairs the ECSPHB smart alarm hub with two ECSPPET pet PIRs, two ECSPCT door/window contact sensors and two ECSPRC remote controls. The hub is Wi-Fi enabled with a GSM back-up facility, and activations and monitoring are supported via the app.

The hub has a 95 dB sounder, takes up to 32 devices and has Home, Arm, Disarm and SOS operations; the remote controls have the same four. The devices use 433 MHz, with 80 metre open field RF transmission.

The hub

The ECSPHB hub runs at 12 V DC. Its 7.4V 600mAh lithium polymer backup battery gives a power reserve of 8 hours (approx.). Wi-Fi is 2.4 GHz (IEEE 802.11 b/g/n) with a router transmission range of 150 m, and the GSM back-up takes a full-size SIM card on 850, 900, 1800 & 1900 MHz.

The hub is white ABS, surface mounted, and measures 109.5 x 109.5 x 40 mm.

The detectors and remotes

Each pet PIR has an 8 m range, a minimum detectable object weight of >25 kg and runs on 3 x AA (LR06) batteries. Each door/window contact comes with a 25 x 10 x 9 mm magnet. The remote controls are black.

The pet PIRs, door/window contacts and remote controls run at 3 V DC, each with a power reserve of 12 months (approx.). Every device in the kit operates from -10 to 55 °C.
