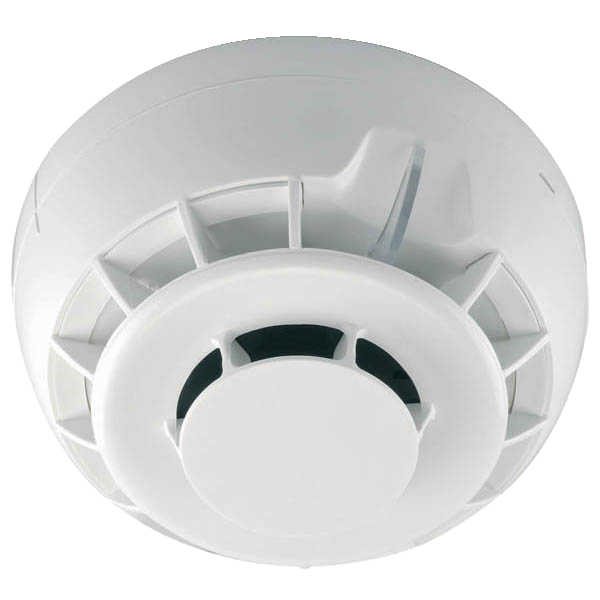

ESP CSD212 12V Combined Smoke+heat Detector & Base
£
20
58
(Incl. VAT)
3 Years Warranty
12V combined smoke+heat DETECTOR & BASE
About this product
About this product
The ESP CSD212, from ESP's Fire Protection range, is a combined optical smoke and heat detector with base for 12V conventional wiring, with a volt-free relay. It runs from 9 - 30 V DC and is marked EN54-5 and EN54-7.
Key features
- Combined optical smoke and heat detection, class A1R
- 12V conventional wiring; 9 - 30 V DC operating voltage
- Volt-free relay
- Auto compensation and a digital processing algorithm
- LED indication with 360° visibility; sensor status indication every 8 seconds
- Simulated smoke/heat test facility
- Can be used on Grade-C systems
- Marked EN54-5 and EN54-7
Frequently asked questions
What does the CSD212 detect?
Smoke (optical) and heat, in one combined detector.
What voltage does it need?
9 - 30 V DC, on 12V conventional wiring.
Does it have a relay output?
Yes: a volt-free relay.
How is it tested?
With its simulated smoke/heat test facility.
Which EN54 parts is it marked to?
EN54-5 and EN54-7.
-
Download
- CSD212 Tech Sheet
£
20
58
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø102 x 48 (Including Base)
Test Facility
Simulated Smoke/ Heat
Class
A1R
Weight (Kg)
0.17 (Including Base)
Warranty (Years)
3
Operating Voltage (V DC)
9 - 30
Cable Size (mm²)
0.4 - 2.0 (Twin)
Standby Current @ 24v (µA)
<60
Wiring Type
12V Conventional
Relay Types
Volt-Free Double Pole Single Throw (DPST)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
GTIN
5060224101698
Commodity Code
8531103000
Alarm Current @ 24V (mA)
49
Alarm Current @ 12V (mA)
33
Ingress Protection
IP30
Features
Can be used on Grade-C Systems
Approvals
EN54-7, EN54-5
Dimensions
Dimensions (mm)
ø102 x 48 (Including Base)
Specifications
| Dimensions (mm) | ø102 x 48 (Including Base) |
|---|---|
| Test Facility | Simulated Smoke/ Heat |
| Class | A1R |
| Weight (Kg) | 0.17 (Including Base) |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Cable Size (mm²) | 0.4 - 2.0 (Twin) |
| Standby Current @ 24v (µA) | <60 |
| Wiring Type | 12V Conventional |
| Relay Types | Volt-Free Double Pole Single Throw (DPST) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| GTIN | 5060224101698 |
| Commodity Code | 8531103000 |
| Alarm Current @ 24V (mA) | 49 |
| Alarm Current @ 12V (mA) | 33 |
| Ingress Protection | IP30 |
| Features | Can be used on Grade-C Systems |
| Approvals | EN54-7, EN54-5 |
Dimensions
| Dimensions (mm) | ø102 x 48 (Including Base) |
|---|
