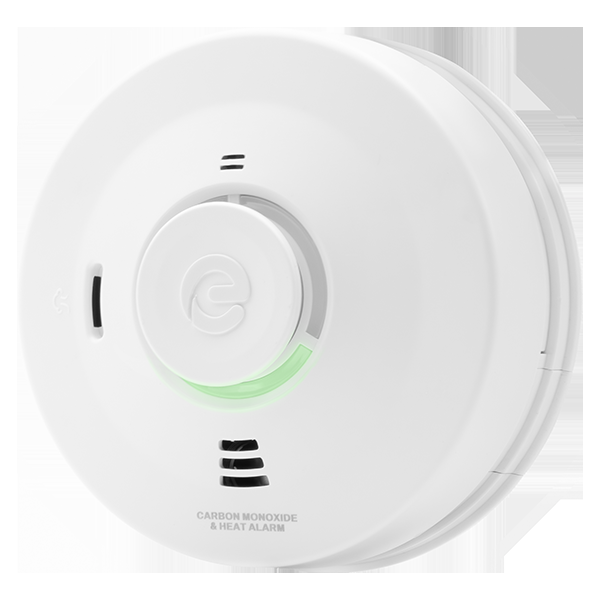

Espire ES1CHLV Carbon Monoxide and Heat Multi-Sensor Alarm Powered by Mains with a 10 Year Lithium Battery
£
70
86
(Incl. VAT)
5 Years Warranty
Espire Carbon Monoxide and Heat Multi-Sensor Alarm Powered by Mains with a 10 Year Lithium Battery
About this product
About this product
The Espire ES1CHLV is a Carbon Monoxide and Heat Multi-Sensor Alarm Powered by Mains with a 10 Year Lithium Battery.
Key Features
- Battery Type: 3V Lithium
- Sounder Output (dB): 85 @ 3m
- Materials: UL94-V0 rated UV stabilised ABS
- Genuine Espire carbon monoxide alarm supplied by WME
- Backed by WME UK stock and trade support
- Free UK delivery on orders over £129
-
Download
- ES1CHLV Tech Sheet
£
70
86
Price
Technical Details
Specifications
Dimensions (mm)
ø132 x 59
Colour
White
Materials
UL94-V0 rated UV stabilised ABS
Mounting
Ceiling
Recommended Installation Locations
Fuel Burning Areas & Kitchen Areas
Auto Dim Power LED
Day Mode and Night Mode (Not intrusive to sleep)
Manual Test Button
Checks sensor, electronics & sounder
Weight (Kg)
0.268
Warranty (Years)
5
Sensor Type
Multi Sensor;
Heat Detection Class
A2
Sounder Output (dB)
85 @ 3m
Hush Function
Alarm hush - 10 minutes, Fault hush - 12 hours
CO Detection Levels
Low - ≤50 PPM, Medium - ≤100 PPM, High - ≤180 PPM
Installation Grade
D1
Supply Type
Mains AC with battery backup
Supply Voltage (V AC)
230
Frequency (Hz)
50
Maximum Power Consumption (W)
3.3
Standby Power Consumption (W)
0.5
Battery Backup
Non-replaceable 10 Year Battery
Battery Type
3V Lithium
Battery Size
CR123A
Battery Chemistry
Lithium
Battery Lifetime
10 Year
Wired Interconnect Supported
Yes
Maximum Interconnect Wiring Distance (m)
300
RF-LINK Supported
Yes; Requires ES1RF
Base Type
Anti-Tamper Lock-In Wiring Base
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
95 (non-condensing)
ES1RF: Alarm RF-Link Module
24 hour memory function
ES1MP: Alarm Masking Plate
Clear LED indication status
GTIN
5060654465605
Commodity Code
8531103000
Dimensions
Dimensions (mm)
ø132 x 59
Specifications
| Dimensions (mm) | ø132 x 59 |
|---|---|
| Colour | White |
| Materials | UL94-V0 rated UV stabilised ABS |
| Mounting | Ceiling |
| Recommended Installation Locations | Fuel Burning Areas & Kitchen Areas |
| Auto Dim Power LED | Day Mode and Night Mode (Not intrusive to sleep) |
| Manual Test Button | Checks sensor, electronics & sounder |
| Weight (Kg) | 0.268 |
| Warranty (Years) | 5 |
| Sensor Type | Multi Sensor; |
| Heat Detection Class | A2 |
| Sounder Output (dB) | 85 @ 3m |
| Hush Function | Alarm hush - 10 minutes, Fault hush - 12 hours |
| CO Detection Levels | Low - ≤50 PPM, Medium - ≤100 PPM, High - ≤180 PPM |
| Installation Grade | D1 |
| Supply Type | Mains AC with battery backup |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Maximum Power Consumption (W) | 3.3 |
| Standby Power Consumption (W) | 0.5 |
| Battery Backup | Non-replaceable 10 Year Battery |
| Battery Type | 3V Lithium |
| Battery Size | CR123A |
| Battery Chemistry | Lithium |
| Battery Lifetime | 10 Year |
| Wired Interconnect Supported | Yes |
| Maximum Interconnect Wiring Distance (m) | 300 |
| RF-LINK Supported | Yes; Requires ES1RF |
| Base Type | Anti-Tamper Lock-In Wiring Base |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| ES1RF: Alarm RF-Link Module | 24 hour memory function |
| ES1MP: Alarm Masking Plate | Clear LED indication status |
| GTIN | 5060654465605 |
| Commodity Code | 8531103000 |
Dimensions
| Dimensions (mm) | ø132 x 59 |
|---|
