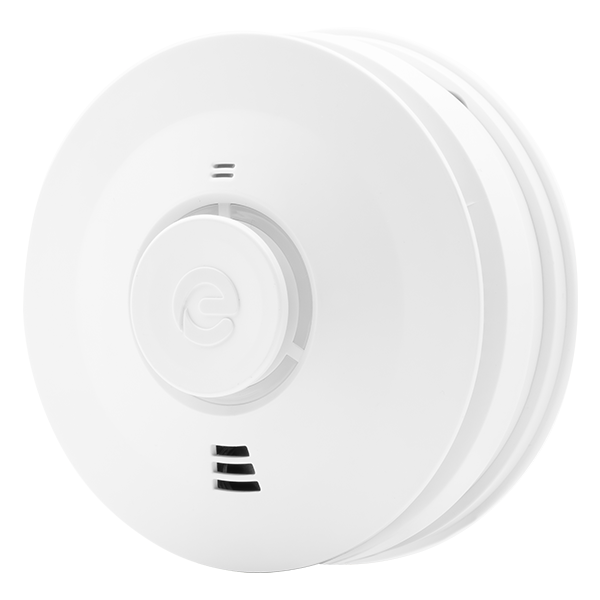

Espire ES1HL Heat Alarm (battery Powered)
£
19
80
(Incl. VAT)
5 Years Warranty
Heat Alarm (battery Powered)
About this product
About this product
The Espire ES1HL is a heat alarm powered by a 10 year lithium battery, certified to BS 5446-2:2003. It is ceiling mounted, recommended for kitchen areas, garages & loft areas, and supports RF-LINK, which requires the ES1RF2.
Key features
- Heat sensor: heat detection class A1, heat detection temperature 58 °C
- Sounder output 85 dB @ 3m; alarm hush 10 minutes, fault hush 12 hours
- Non-replaceable 10 year 3V lithium battery (CR17450)
- RF-LINK supported (requires ES1RF2); up to 28 interlinked devices
- 2 LEDs: yellow fault, red fire; clear LED indication status
- 24 hour memory function; anti-tamper lock-in base
- Certified to BS 5446-2:2003
Frequently asked questions
What does the ES1HL detect?
Heat: it is a heat alarm with a heat sensor of detection class A1 and a heat detection temperature of 58 °C.
Can the battery be replaced?
No. It is a non-replaceable 10 year 3V lithium battery.
Does it support RF-LINK?
Yes. RF-LINK is supported and requires the ES1RF2 alarm RF-Link module 2.
Where should it be installed?
On a ceiling; the recommended installation locations are kitchen areas, garages & loft areas.
Which standard is it certified to?
BS 5446-2:2003.
-
Download
- ES1HL Tech Sheet
£
19
80
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø132 x 60.5
Colour
White
Materials
UL94-V0 rated UV stabilised ABS
Mounting
Ceiling
Recommended Installation Locations
Kitchen Areas, Garages & Loft Areas
Auto Dim Power LED
No
Manual Test Button
Checks sensor, electronics & sounder
Weight (Kg)
0.227
Warranty (Years)
5
Sensor Type
Heat
Heat Detection Class
A1
Sounder Output (dB)
85 @ 3m
Hush Function
Alarm hush - 10 minutes, Fault hush - 12 hours
Installation Grade
F1
Supply Type
Battery Powered
Operating Voltage (V DC)
3
Battery Backup
Non-replaceable 10 Year Battery
Battery Type
3V Lithium
Battery Size
CR17450
Battery Chemistry
Lithium
Battery Lifetime
10 Year
Wired Interconnect Supported
No
RF-LINK Supported
Yes; Requires ES1RF2
Base Type
Anti-Tamper Lock-In Base
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
95 (non-condensing)
Indication
2 LEDs; Yellow - Fault, Red - Fire
Heat Detection Temperature (°C)
58
Max. Interlinked Devices
28
Features
24 hour memory function; Clear LED indication status
Accessories
ES1RF2: Alarm RF-Link Module 2; ES1MP: Alarm Masking Plate; ES1MTW: Alarm Multi Tool (2 Pack) White; ES1MTB: Alarm Multi Tool (2 Pack) Black
Certification
Certified to BS 5446-2:2003
Dimensions
Dimensions (mm)
ø132 x 60.5
Specifications
| Dimensions (mm) | ø132 x 60.5 |
|---|---|
| Colour | White |
| Materials | UL94-V0 rated UV stabilised ABS |
| Mounting | Ceiling |
| Recommended Installation Locations | Kitchen Areas, Garages & Loft Areas |
| Auto Dim Power LED | No |
| Manual Test Button | Checks sensor, electronics & sounder |
| Weight (Kg) | 0.227 |
| Warranty (Years) | 5 |
| Sensor Type | Heat |
| Heat Detection Class | A1 |
| Sounder Output (dB) | 85 @ 3m |
| Hush Function | Alarm hush - 10 minutes, Fault hush - 12 hours |
| Installation Grade | F1 |
| Supply Type | Battery Powered |
| Operating Voltage (V DC) | 3 |
| Battery Backup | Non-replaceable 10 Year Battery |
| Battery Type | 3V Lithium |
| Battery Size | CR17450 |
| Battery Chemistry | Lithium |
| Battery Lifetime | 10 Year |
| Wired Interconnect Supported | No |
| RF-LINK Supported | Yes; Requires ES1RF2 |
| Base Type | Anti-Tamper Lock-In Base |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| Indication | 2 LEDs; Yellow - Fault, Red - Fire |
| Heat Detection Temperature (°C) | 58 |
| Max. Interlinked Devices | 28 |
| Features | 24 hour memory function; Clear LED indication status |
| Accessories | ES1RF2: Alarm RF-Link Module 2; ES1MP: Alarm Masking Plate; ES1MTW: Alarm Multi Tool (2 Pack) White; ES1MTB: Alarm Multi Tool (2 Pack) Black |
| Certification | Certified to BS 5446-2:2003 |
Dimensions
| Dimensions (mm) | ø132 x 60.5 |
|---|
