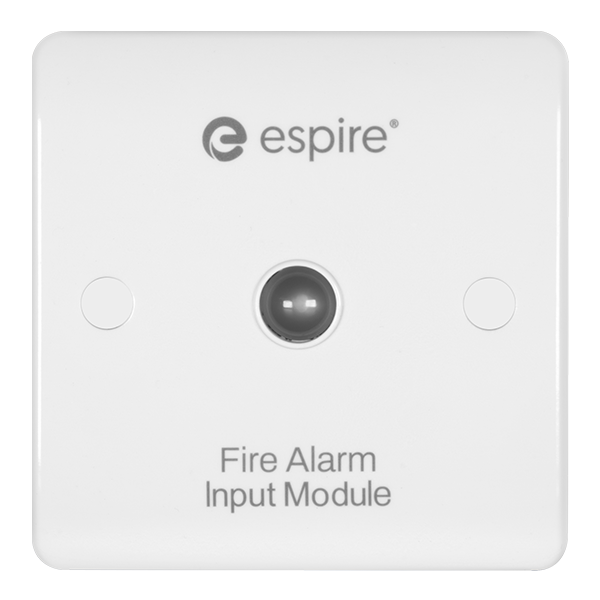

Espire ES1MODRF 10 Year Input Module
£
37
44
(Incl. VAT)
10 Year Input Module
About this product
About this product
The Espire ES1MODRF, from ESP, is a battery-powered input module, powered by a non-replaceable 10 year battery, that lets 3rd party devices trigger the alarm function of Espire alarms over RF-LINK. A volt-free, normally open input triggers it when shorted.
Key features
- Lets 3rd party devices trigger Espire alarms
- Volt-free normally open input: short to trigger
- Built-in RF-LINK at 868.3 MHz, 100 m range (open field)
- Up to 28 interconnected devices
- Non-replaceable 10 year 3V lithium battery (CR17450)
- Green and red indication LEDs
- Single pattress, surface or flush mounting, backbox included
- White urea, 86 x 86 x 54 mm (backbox included)
Frequently asked questions
What does the ES1MODRF do?
It lets 3rd party devices trigger the alarm function of Espire alarms.
How is the input triggered?
Volt-free, normally open: short to trigger.
Does the ES1MODRF need mains power?
No. It is battery powered by a non-replaceable 10 year battery.
What is the wireless range?
RF-LINK range is 100 m (open field), at 868.3 MHz.
Can it be wired to other alarms?
No. Wired interconnect is not supported; it interconnects over RF-LINK, up to 28 devices.
-
Download
- ES1MODRF Tech Sheet
£
37
44
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 54 (Backbox Included)
Colour
White
Materials
Urea
Mounting
Single Pattress – Surface and Flush Mounting (backbox included)
Indication
2 LEDs; Green & Red
Weight (Kg)
0.2
Supply Type
Battery Powered
Operating Voltage (V DC)
3
Cable Size (mm²)
0.75 - 2.5
Relay/Contact Type
Volt-free Normally Open Short to trigger
Battery Backup
Non-replaceable 10 Year Battery
Battery Type
3V Lithium
Battery Size
CR17450
Battery Chemistry
Lithium
Battery Lifetime
10 Year
RF-LINK Supported
Built-in
RF-LINK Frequency (MHz)
868.3
RF-LINK Range (Open Field)(m)
100
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
95 (non-condensing)
Compatible Products
RF-Link supported Espire Products
Wired Interconnect Supported
No
Maximum Supported Wired & RF-LINK Interconnected Devices
28
Dimensions
Dimensions (mm)
86 x 86 x 54 (Backbox Included)
Specifications
| Dimensions (mm) | 86 x 86 x 54 (Backbox Included) |
|---|---|
| Colour | White |
| Materials | Urea |
| Mounting | Single Pattress – Surface and Flush Mounting (backbox included) |
| Indication | 2 LEDs; Green & Red |
| Weight (Kg) | 0.2 |
| Supply Type | Battery Powered |
| Operating Voltage (V DC) | 3 |
| Cable Size (mm²) | 0.75 - 2.5 |
| Relay/Contact Type | Volt-free Normally Open Short to trigger |
| Battery Backup | Non-replaceable 10 Year Battery |
| Battery Type | 3V Lithium |
| Battery Size | CR17450 |
| Battery Chemistry | Lithium |
| Battery Lifetime | 10 Year |
| RF-LINK Supported | Built-in |
| RF-LINK Frequency (MHz) | 868.3 |
| RF-LINK Range (Open Field)(m) | 100 |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| Compatible Products | RF-Link supported Espire Products |
| Wired Interconnect Supported | No |
| Maximum Supported Wired & RF-LINK Interconnected Devices | 28 |
Dimensions
| Dimensions (mm) | 86 x 86 x 54 (Backbox Included) |
|---|
