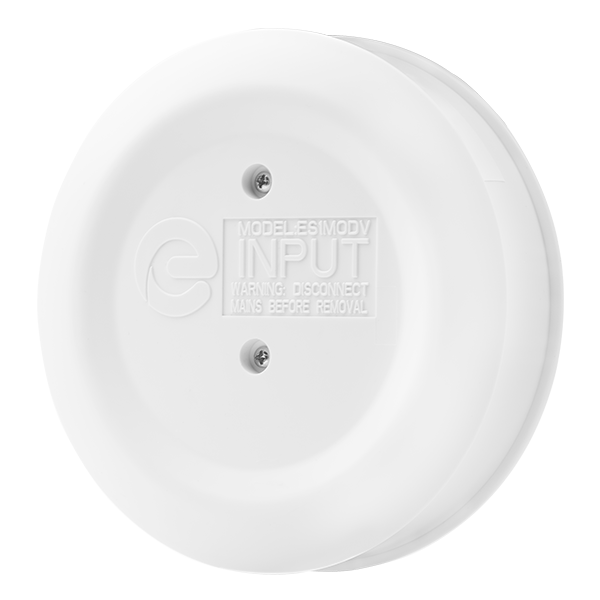

Espire ES1MODV Input Relay Base (Mains Powered)
£
29
29
(Incl. VAT)
5 Years Warranty
Input Relay Base (Mains Powered)
About this product
About this product
The Espire ES1MODV is a mains powered input relay base with battery backup: a hardwired interconnect input module that enables 3rd party devices to trigger the alarm function of Espire alarms.
Key features
- Enables 3rd party devices to trigger the alarm function of Espire alarms
- Input: volt-free, normally open, short to trigger
- 230 V AC mains supply with battery backup (non-replaceable rechargeable, 3V lithium x2, VL2330)
- Wired interconnect supported; maximum interconnect wiring distance 300 m
- Up to 28 interlinked devices
- RF-LINK not supported
- Ceiling or wall mounting; ø142 x 36.5 mm, white
Frequently asked questions
What does the ES1MODV do?
It enables 3rd party devices to trigger the alarm function of Espire alarms.
What kind of input does it take?
Volt-free, normally open, short to trigger.
Does it work over RF-LINK?
No: RF-LINK is not supported. Wired interconnect is supported, over up to 300 m.
How is it powered?
From 230 V AC mains, with battery backup from a non-replaceable rechargeable battery (3V lithium x2).
How many devices can be interlinked?
Up to 28.
-
Download
- ES1MODV Tech Sheet
£
29
29
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø142 x 36.5
Colour
White
Materials
UL94-V0 rated UV stabilised ABS
Mounting
Ceiling or Wall
Weight (Kg)
0.168
Warranty (Years)
5
Supply Type
Mains AC with battery backup
Supply Voltage (V AC)
230
Frequency (Hz)
50
Cable Size (mm²)
0.75 - 2.5
Relay/Contact Type
Volt-free Normally Open Short to trigger
Maximum Power Consumption (W)
0.5
Standby Power Consumption (W)
0.2
Battery Backup
Non-replaceable Rechargeable
Battery Type
3V Lithium (x2)
Battery Size
VL2330
Battery Chemistry
Lithium
Wired Interconnect Supported
Yes
Maximum Interconnect Wiring Distance (m)
300
RF-LINK Supported
No
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
95 (non-condensing)
Compatible Products
Interconnect supported Espire Products
Max. Interlinked Devices
28
Features
Enables 3rd party devices to trigger the alarm function of Espire alarms
Dimensions
Dimensions (mm)
ø142 x 36.5
Specifications
| Dimensions (mm) | ø142 x 36.5 |
|---|---|
| Colour | White |
| Materials | UL94-V0 rated UV stabilised ABS |
| Mounting | Ceiling or Wall |
| Weight (Kg) | 0.168 |
| Warranty (Years) | 5 |
| Supply Type | Mains AC with battery backup |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Cable Size (mm²) | 0.75 - 2.5 |
| Relay/Contact Type | Volt-free Normally Open Short to trigger |
| Maximum Power Consumption (W) | 0.5 |
| Standby Power Consumption (W) | 0.2 |
| Battery Backup | Non-replaceable Rechargeable |
| Battery Type | 3V Lithium (x2) |
| Battery Size | VL2330 |
| Battery Chemistry | Lithium |
| Wired Interconnect Supported | Yes |
| Maximum Interconnect Wiring Distance (m) | 300 |
| RF-LINK Supported | No |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| Compatible Products | Interconnect supported Espire Products |
| Max. Interlinked Devices | 28 |
| Features | Enables 3rd party devices to trigger the alarm function of Espire alarms |
Dimensions
| Dimensions (mm) | ø142 x 36.5 |
|---|
