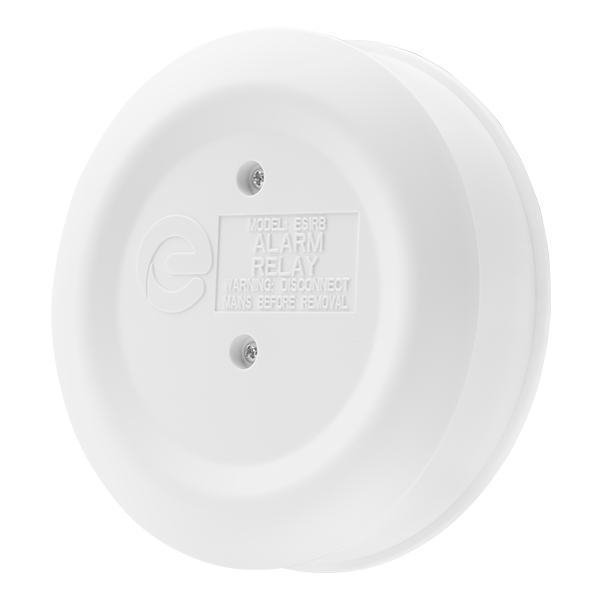

Espire ES1RB Relay Base (Mains Powered)
About this product
The Espire ES1RB is a Relay Base (Mains Powered).
Key Features
- Switch 3rd Party devices when alarm activates
- Multiple knockout entries
- Compatible with any Espire hardwired interconnect supported alarms
- Supports Espire Alarms to be mounted on top
- Genuine ESP smoke alarm accessories supplied by WME
In Detail
Specified across commercial, industrial and multi-occupancy premises, ESP's smoke alarm accessories products are engineered for reliable life-safety performance and straightforward installation by qualified engineers. Robust construction and clear indication help ensure the system performs when it matters.
A dependable fire alarm system relies on quality components working together, and this unit integrates cleanly with ESP panels, detectors and sounders — a well-supported platform to design around and maintain.
The Espire ES1RB is a practical choice wherever a reliable smoke alarm accessories is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | Espire |
| Product code | ES1RB |
| Ø142mm | 36.5mm |
| Dimensions (mm) | ø142 x 36.5 |
| Colour | White |
| Materials | UL94-V0 rated UV stabilised ABS |
| Mounting | Ceiling or Wall |
| Weight (Kg) | 0.18 |
| Warranty (Years) | 5 |
| Supply Type | Mains AC with battery backup |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Cable Size (mm²) | 0.75 - 2.5 |
| Relay Voltage - Maximum (AC) | 250 |
| Maximum Switchable Load (A) | 8 |
| Relay/Contact Type | Volt free SPDT |
| Maximum Power Consumption (W) | 3 |
| Standby Power Consumption (W) | 0.38 |
| Battery Backup | Non-replaceable Rechargeable |
| Battery Type | 3V Lithium (x2) |
| Battery Size | VL2330 |
| Battery Chemistry | Lithium |
| Wired Interconnect Supported | Yes |
| Maximum Interconnect Wiring Distance (m) | 300 |
| RF-LINK Supported | No |
| Operating Temperature (°C) | 0 to +40 |
| Compatible Products | Compatible with Interconnect supported Espire Products |
| GTIN | 5060654465698 |
| Commodity Code | 8531103000 |
