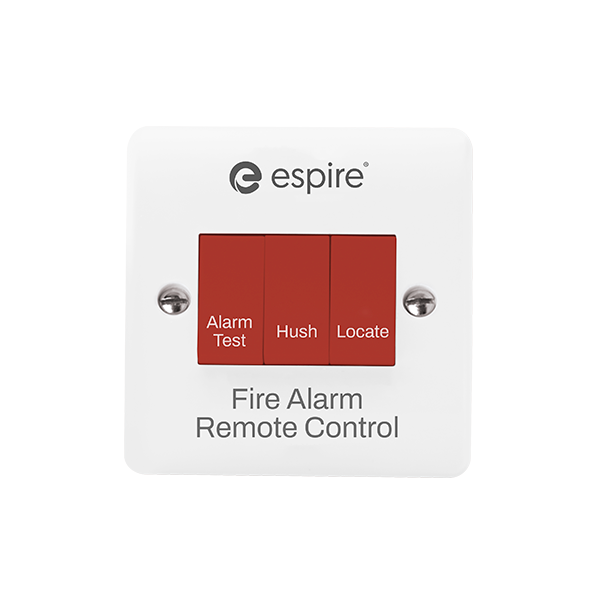

Espire ES1REMV Hardwired Remote Control Switch (Mains Powered)
£
29
43
(Incl. VAT)
5 Years Warranty
Hardwired Remote Control Switch (Mains Powered)
About this product
About this product
The Espire ES1REMV is a hardwired interconnect remote controller powered by mains supply. It has 3 switches: for testing the alarms, to activate the hush function and to activate the locate function, and it is compatible with any Espire interconnect supported alarms.
Key features
- 3 switches: test the alarms, activate hush, activate locate
- Compatible with any Espire interconnect supported alarms
- Wired interconnect supported; maximum interconnect wiring distance 300 m
- Up to 28 interlinked devices
- Mains powered: 230 V AC, 50 Hz
- Designed to fit a standard UK 1 gang mount box; surface and flush mounting (backbox included)
Frequently asked questions
What do the switches do?
There are 3: testing the alarms, activating the hush function and activating the locate function.
Which alarms does it work with?
Any Espire interconnect supported alarms.
Is it battery or mains powered?
Mains powered: 230 V AC, 50 Hz.
Does it support RF-LINK?
No; wired interconnect is supported, up to 300 m.
Will it fit a standard back box?
Yes: it is designed to fit a standard UK 1 gang mount box.
-
Download
- ES1REMV Tech Sheet
£
29
43
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 61 (Backbox Included)
Colour
White
Materials
Urea
Mounting
Single Pattress – Surface and Flush Mounting (backbox included)
Weight (Kg)
0.24
Warranty (Years)
5
Supply Type
Mains AC
Supply Voltage (V AC)
230
Frequency (Hz)
50
Cable Size (mm²)
0.75 - 2.5
Maximum Power Consumption (W)
0.5
Standby Power Consumption (W)
0.2
Wired Interconnect Supported
Yes
Maximum Interconnect Wiring Distance (m)
300
RF-LINK Supported
No
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
95 (non-condensing)
Compatible Products
Interconnect supported Espire Products
Max. Interlinked Devices
28
Features
3 switches for; testing the alarms, to activate the hush function on & to activate the locate function; Compatible with any Espire Interconnect supported Alarms; Designed to fit standard UK 1 Gang mount box
Dimensions
Dimensions (mm)
86 x 86 x 61 (Backbox Included)
Specifications
| Dimensions (mm) | 86 x 86 x 61 (Backbox Included) |
|---|---|
| Colour | White |
| Materials | Urea |
| Mounting | Single Pattress – Surface and Flush Mounting (backbox included) |
| Weight (Kg) | 0.24 |
| Warranty (Years) | 5 |
| Supply Type | Mains AC |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Cable Size (mm²) | 0.75 - 2.5 |
| Maximum Power Consumption (W) | 0.5 |
| Standby Power Consumption (W) | 0.2 |
| Wired Interconnect Supported | Yes |
| Maximum Interconnect Wiring Distance (m) | 300 |
| RF-LINK Supported | No |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| Compatible Products | Interconnect supported Espire Products |
| Max. Interlinked Devices | 28 |
| Features | 3 switches for; testing the alarms, to activate the hush function on & to activate the locate function; Compatible with any Espire Interconnect supported Alarms; Designed to fit standard UK 1 Gang mount box |
Dimensions
| Dimensions (mm) | 86 x 86 x 61 (Backbox Included) |
|---|
