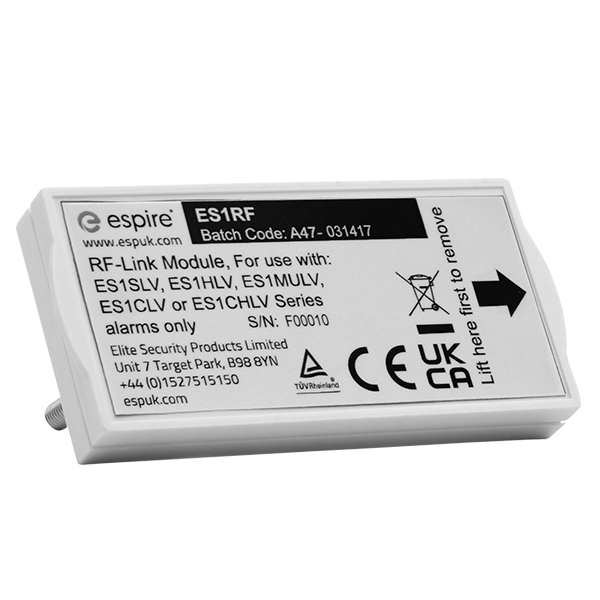

Espire ES1RF RF Module for Mains Powered Alarms with 10 Year Battery
£
47
32
(Incl. VAT)
5 Years Warranty
RF Module for Mains Powered Alarms with 10 Year Battery
About this product
About this product
The Espire ES1RF is an alarm RF-Link module: an RF-LINK module for mains powered Espire alarms, recessed into a compatible Espire alarm. It works at 868.3 MHz with a 100 m open field range, and supports up to 28 wired and RF-LINK interconnected devices.
Key features
- RF-LINK module for mains powered Espire alarms
- Compatible with Espire alarms ES1SLV, ES1HLV, ES1MULV, ES1CLV and ES1CHLV
- Recessed into a compatible Espire alarm
- RF-LINK frequency 868.3 MHz; range 100 m (open field)
- Up to 28 wired and RF-LINK interconnected devices
- 14.3 x 27.5 x 57 mm, 0.012 kg
Frequently asked questions
Which alarms does the ES1RF fit?
Espire alarms ES1SLV, ES1HLV, ES1MULV, ES1CLV and ES1CHLV.
How is it fitted?
It is recessed into a compatible Espire alarm.
What is the RF-LINK range?
100 m in open field, at 868.3 MHz.
How many devices can be interconnected?
Up to 28 wired and RF-LINK interconnected devices are supported.
-
Download
- ES1RF Tech Sheet
£
47
32
FAST delivery by Order within
Price
Technical Details
Specifications
Mounting
Recessed into compatible Espire alarm
Weight (Kg)
0.012
Warranty (Years)
5
RF-LINK Supported
Built-in
RF-LINK Frequency (MHz)
868.3
RF-LINK Range (Open Field)(m)
100
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
95 (non-condensing)
Compatible Products
Espire Alarms: ES1SLV, ES1HLV, ES1MULV, ES1CLV, ES1CHLV
Dimensions (mm)
14.3 x 27.5 x 57
Maximum Supported Wired & RF-LINK Interconnected Devices
28
Description
Alarm RF-Link Module
Features
RF-LINK module for mains powered Espire Alarms
Specifications
| Mounting | Recessed into compatible Espire alarm |
|---|---|
| Weight (Kg) | 0.012 |
| Warranty (Years) | 5 |
| RF-LINK Supported | Built-in |
| RF-LINK Frequency (MHz) | 868.3 |
| RF-LINK Range (Open Field)(m) | 100 |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| Compatible Products | Espire Alarms: ES1SLV, ES1HLV, ES1MULV, ES1CLV, ES1CHLV |
| Dimensions (mm) | 14.3 x 27.5 x 57 |
| Maximum Supported Wired & RF-LINK Interconnected Devices | 28 |
| Description | Alarm RF-Link Module |
| Features | RF-LINK module for mains powered Espire Alarms |
