Espire ES1MUL Smoke & Heat Alarm (battery Powered)
About this product

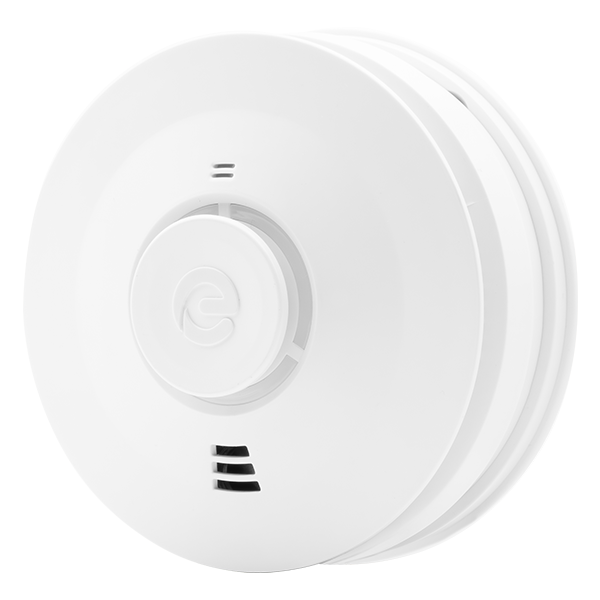

The Espire ES1MUL is a smoke and heat multi-sensor alarm powered by a non-replaceable 10 year lithium battery, combining an optical smoke sensor with a class A1 heat sensor. It is certified to EN 14604:2005 + AC:2008 & BS 5446-2:2003 and can be interlinked by RF-LINK with the ES1RF2 module.
Key features
- Optical smoke and heat (class A1, 58 °C) multi-sensor
- Non-replaceable 10 year lithium battery (CR17450)
- Certified to EN 14604:2005 + AC:2008 & BS 5446-2:2003
- 85 dB at 3m; alarm hush 10 minutes, fault hush 12 hours
- RF-LINK interconnection with ES1RF2, up to 28 devices; no wired interconnect
- Dust compensation and insect mesh
- Anti-Tamper Lock-In base
- 24 hour memory function; 2 LEDs (yellow fault, red fire)
Frequently asked questions
What does the ES1MUL detect?
Smoke, with an optical sensor, and heat, with a class A1 heat sensor at 58 °C.
Can the battery be replaced?
No. It has a non-replaceable 10 year lithium battery.
Can it be interlinked?
Yes, by RF-LINK with the ES1RF2 module, up to 28 devices. Wired interconnection is not supported.
Which standards is it certified to?
EN 14604:2005 + AC:2008 & BS 5446-2:2003.
Where should it be fitted?
On the ceiling, in living areas, loft areas, bedrooms, escape routes and stairways.
How long does the hush last?
Alarm hush lasts 10 minutes and fault hush 12 hours.
-
Download
- ES1MUL Tech Sheet
Specifications
Dimensions
Specifications
| Dimensions (mm) | ø132 x 60.5 |
|---|---|
| Colour | White |
| Materials | UL94-V0 rated UV stabilised ABS |
| Mounting | Ceiling |
| Recommended Installation Locations | Living Areas, Loft Areas, Bedrooms, Escape Routes & Stairways |
| Auto Dim Power LED | No |
| Manual Test Button | Checks sensor, electronics & sounder |
| Weight (Kg) | 0.253 |
| Warranty (Years) | 5 |
| Sensor Type | Multi Sensor; Sensor 1 - Optical Smoke, Sensor 2 - Heat |
| Heat Detection Class | A1 |
| Sounder Output (dB) | 85 @ 3m |
| Hush Function | Alarm hush - 10 minutes, Fault hush - 12 hours |
| Installation Grade | F1 |
| Supply Type | Battery Powered |
| Operating Voltage (V DC) | 3 |
| Battery Backup | Non-replaceable 10 Year Battery |
| Battery Type | 3V Lithium |
| Battery Size | CR17450 |
| Battery Chemistry | Lithium |
| Battery Lifetime | 10 Year |
| Wired Interconnect Supported | No |
| RF-LINK Supported | Yes; Requires ES1RF2 |
| Base Type | Anti-Tamper Lock-In Base |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| Indication | 2 LEDs; Yellow - Fault, Red - Fire |
| Heat Detection Temperature (°C) | 58 |
| Maximum Supported Wired & RF-LINK Interconnected Devices | 28 |
Dimensions
| Dimensions (mm) | ø132 x 60.5 |
|---|
