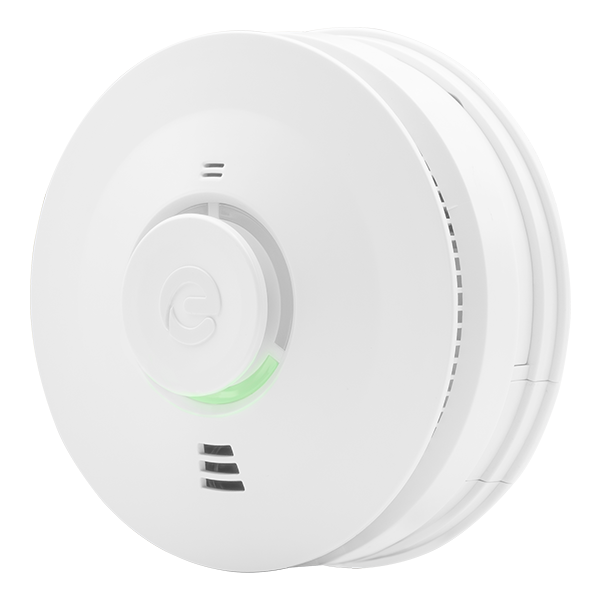

Espire ES1MULV Smoke & Heat Alarm (Mains Powered - Sealed Battery)
£
57
44
(Incl. VAT)
5 Years Warranty
Smoke & Heat Alarm (Mains Powered - Sealed Battery)
About this product
About this product
The Espire ES1MULV is a mains-powered smoke and heat multi-sensor alarm with a non-replaceable 10 year lithium backup battery, pairing an optical smoke sensor with a class A2 heat sensor. It can be interconnected by wire or by RF-LINK with the ES1RF module, up to 28 devices.
Key features
- Optical smoke and heat (class A2, 58 °C) multi-sensor
- 230 V AC mains with a non-replaceable 10 year 3V lithium backup battery (CR123A)
- Certified to EN 14604:2005 + AC:2008 & BS 5446-2:2003
- Wired interconnect up to 300 m, or RF-LINK with ES1RF; up to 28 interconnected devices
- 85 dB at 3m; alarm hush 10 minutes, fault hush 12 hours
- 3 LEDs (green power, yellow fault, red fire); auto dim power LED
- Dust compensation, insect mesh and 24 hour memory function
- Anti-tamper lock-in wiring base
Frequently asked questions
What does the ES1MULV detect?
Smoke, with an optical sensor, and heat, with a class A2 heat sensor at 58 °C.
How is it powered?
From 230 V AC mains, with a non-replaceable 10 year lithium battery as backup.
Can it be interconnected?
Yes. Wired interconnection is supported up to 300 m, and RF-LINK with the ES1RF module; up to 28 devices in total.
Which standards is it certified to?
EN 14604:2005 + AC:2008 & BS 5446-2:2003.
Where should it be fitted?
On the ceiling, in living areas, loft areas, bedrooms, escape routes and stairways.
-
Download
- ES1MULV Tech Sheet
£
57
44
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø132 x 59.5
Colour
White
Materials
UL94-V0 rated UV stabilised ABS
Mounting
Ceiling
Recommended Installation Locations
Living Areas, Loft Areas, Bedrooms, Escape Routes & Stairways
Auto Dim Power LED
Day Mode and Night Mode (Not intrusive to sleep)
Manual Test Button
Checks sensor, electronics & sounder
Weight (Kg)
0.27
Warranty (Years)
5
Sensor Type
Multi Sensor; Sensor 1 - Optical Smoke, Sensor 2 - Heat
Heat Detection Class
A2
Sounder Output (dB)
85 @ 3m
Hush Function
Alarm hush - 10 minutes, Fault hush - 12 hours
Installation Grade
D1
Supply Type
Mains AC with battery backup
Supply Voltage (V AC)
230
Frequency (Hz)
50
Maximum Power Consumption (W)
3.3
Standby Power Consumption (W)
0.5
Battery Backup
Non-replaceable 10 Year Battery
Battery Type
3V Lithium
Battery Size
CR123A
Battery Chemistry
Lithium
Battery Lifetime
10 Year
Wired Interconnect Supported
Yes
Maximum Interconnect Wiring Distance (m)
300
RF-LINK Supported
Yes; Requires ES1RF
Base Type
Anti-Tamper Lock-In Wiring Base
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
95 (non-condensing)
Indication
3 LEDs; Green - Power, Yellow - Fault, Red - Fire
Heat Detection Temperature (°C)
58
Maximum Supported Wired & RF-LINK Interconnected Devices
28
Dimensions
Dimensions (mm)
ø132 x 59.5
Specifications
| Dimensions (mm) | ø132 x 59.5 |
|---|---|
| Colour | White |
| Materials | UL94-V0 rated UV stabilised ABS |
| Mounting | Ceiling |
| Recommended Installation Locations | Living Areas, Loft Areas, Bedrooms, Escape Routes & Stairways |
| Auto Dim Power LED | Day Mode and Night Mode (Not intrusive to sleep) |
| Manual Test Button | Checks sensor, electronics & sounder |
| Weight (Kg) | 0.27 |
| Warranty (Years) | 5 |
| Sensor Type | Multi Sensor; Sensor 1 - Optical Smoke, Sensor 2 - Heat |
| Heat Detection Class | A2 |
| Sounder Output (dB) | 85 @ 3m |
| Hush Function | Alarm hush - 10 minutes, Fault hush - 12 hours |
| Installation Grade | D1 |
| Supply Type | Mains AC with battery backup |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Maximum Power Consumption (W) | 3.3 |
| Standby Power Consumption (W) | 0.5 |
| Battery Backup | Non-replaceable 10 Year Battery |
| Battery Type | 3V Lithium |
| Battery Size | CR123A |
| Battery Chemistry | Lithium |
| Battery Lifetime | 10 Year |
| Wired Interconnect Supported | Yes |
| Maximum Interconnect Wiring Distance (m) | 300 |
| RF-LINK Supported | Yes; Requires ES1RF |
| Base Type | Anti-Tamper Lock-In Wiring Base |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| Indication | 3 LEDs; Green - Power, Yellow - Fault, Red - Fire |
| Heat Detection Temperature (°C) | 58 |
| Maximum Supported Wired & RF-LINK Interconnected Devices | 28 |
Dimensions
| Dimensions (mm) | ø132 x 59.5 |
|---|
