Espire ES1CST Espire Red Lens White LED Sounder Strobe Powered By Mains Supply IP65 W/ Interconnect
£
40
16
(Incl. VAT)
Espire Red Lens White LED Sounder Strobe Powered by Mains Supply IP65 w/ Interconnect
About this product
About this product

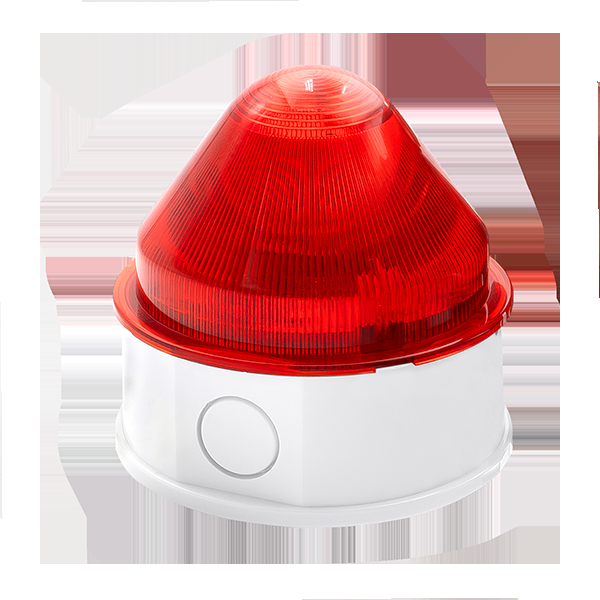

The Espire ES1CST is a sounder strobe powered by mains supply, rated IP65, with wired interconnect. It has a selectable activation mode of L/N power or interconnect (compatible with Espire alarms only), a selectable red strobe and a selectable sounder with 4 tones.
Key features
- Sounder strobe powered by mains supply, with interconnect
- Selectable activation mode – L/N power or interconnect (compatible with Espire alarms only)
- Switchable interconnect facility; RF-link not supported
- Selectable strobe: red strobe colour, white LED, flash rate 7Hz
- Selectable sounder with 4 selectable tones
- Mains only, 100 - 240 V AC, 50/60 Hz
- IP65
- White polycarbonate & ABS, ø90 x 86 mm, surface mounting
Frequently asked questions
Does the ES1CST support wired interconnect?
Yes, and it is switchable: the ES1CST has a switchable interconnect facility.
What can activate it?
L/N power or interconnect, selectable; interconnect is compatible with Espire alarms only.
Does it support RF-link?
No.
What tones does it have?
4: Tone A 552Hz to 615Hz, Tone B 562Hz to 1.3KHz, Tone C 714Hz to 1.1KHz and Tone D 4.3KHz to 4.6KHz.
How is it powered?
By mains supply only, 100 - 240 V AC at 50/60 Hz.
-
Download
- ES1CST Tech Sheet
£
40
16
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø90 x 86
Colour
White
Materials
Polycarbonate & ABS
Mounting
Surface
Sounder Output (dB)
Tone A – 70
Number of Available Tones
4
LED Colour
White
Strobe Colour
Red
Flash Rate
7Hz
Supply Type
Mains Only
Supply Voltage (V AC)
100 - 240
Frequency (Hz)
50/60
Cable Size (mm²)
0.5 - 2.5
Wired Interconnect Supported
Yes
Operating Temperature (°C)
-20 to +45
Relative Humidity Resistance (%)
85
Weight
0.16 kg
GTIN
5061064591113
Commodity Code
8531103000
Ingress Protection
IP65
RF-Link Supported
No
Tone Frequencies
Tone A – 552Hz to 615Hz; Tone B – 562Hz to 1.3KHz; Tone C – 714Hz to 1.1KHz; Tone D – 4.3KHz to 4.6KHz
Dimensions
Dimensions (mm)
ø90 x 86
Specifications
| Dimensions (mm) | ø90 x 86 |
|---|---|
| Colour | White |
| Materials | Polycarbonate & ABS |
| Mounting | Surface |
| Sounder Output (dB) | Tone A – 70 |
| Number of Available Tones | 4 |
| LED Colour | White |
| Strobe Colour | Red |
| Flash Rate | 7Hz |
| Supply Type | Mains Only |
| Supply Voltage (V AC) | 100 - 240 |
| Frequency (Hz) | 50/60 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Wired Interconnect Supported | Yes |
| Operating Temperature (°C) | -20 to +45 |
| Relative Humidity Resistance (%) | 85 |
| Weight | 0.16 kg |
| GTIN | 5061064591113 |
| Commodity Code | 8531103000 |
| Ingress Protection | IP65 |
| RF-Link Supported | No |
| Tone Frequencies | Tone A – 552Hz to 615Hz; Tone B – 562Hz to 1.3KHz; Tone C – 714Hz to 1.1KHz; Tone D – 4.3KHz to 4.6KHz |
Dimensions
| Dimensions (mm) | ø90 x 86 |
|---|
