EZVIZ CS-HP7 2K Smart Video Doorphone, 7" Touch Monitor, RFID, 24 V

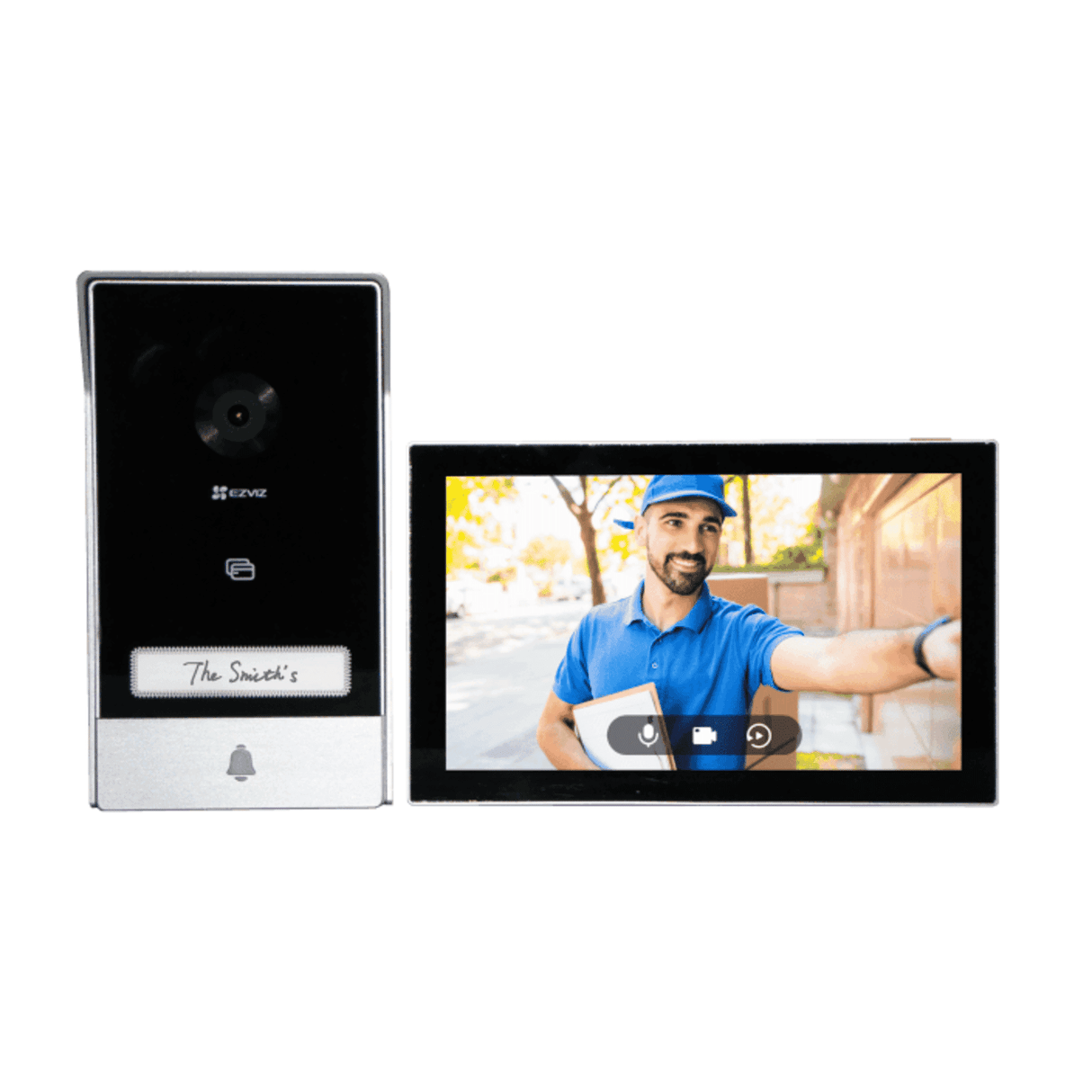

Introduction: Meet the EZVIZ CS‑HP7 2K Smart Video Doorphone

The EZVIZ CS‑HP7 (commonly called the HP7) is a wired smart video doorphone kit that blends high‑resolution imaging with modern home‑entry conveniences. Designed for homeowners and small commercial sites that want a reliable, professional‑looking entry system, the HP7 pairs a weatherproof outdoor panel with a 7" capacitive touch indoor monitor. Key features include 2K (2048 × 1296) video, dual‑band Wi‑Fi and digital 2‑wire transmission for retrofit installs, RFID access, two‑way talk, on‑device microSD storage (up to 512 GB) and support for EZVIZ Cloud. Whether you are replacing an older intercom or adding smart access control to a property, the CS‑HP7 aims to be a modern, flexible option.

Key Features at a Glance

• 2K high‑resolution camera:2048 × 1296 at a wide 162° diagonal field of view for clear identification and situational awareness.
• 7" capacitive touch monitor:A 1024 × 600 display for live view, two‑way talk, and local control.
• Flexible connectivity:Dual‑band Wi‑Fi (2.4 / 5 GHz) plus digital 2‑wire wired transmission for retrofit compatibility.
• Multiple unlock methods:RFID tags (three included), unlocking from the monitor or remotely via the EZVIZ app; supports electric strikes or dry contact outputs.
• Smart detection & alerts:Human‑motion and lingering detection, tamper alerts, and night vision with two 850 nm IR LEDs (~6 m).
• Storage options:Local microSD support up to 512 GB, and optional cloud recording through EZVIZ.

Detailed Specifications and Benefits

• Image sensor:1/2.7" progressive scan CMOS producing sharp 2K video for clearer facial detail than 720p or 1080p alternatives.
• Resolution & lens:2048 × 1296 with a 2.0 mm, F2.2 lens and a 162° diagonal field of view — ideal for covering porches, gates and wider entry areas.
• Night vision:Two 850 nm IR LEDs provide effective low‑light performance, about a 6 m range, which is suitable for typical doorstep distances.
• Compression:H.265 / H.264 for efficient storage and streaming with lower bandwidth requirements compared with older codecs.

• Wired transmission:Digital 2‑wire (capable 4‑wire) allows retrofit installation using existing intercom wiring in many homes and buildings.
• Wired distances:Recommended wiring distances depend on cable gauge — up to ~50 m with Ø2×0.75 mm², up to ~100 m with Ø2×1.5 mm² and up to ~120 m with twisted pair — giving installers flexibility.
• Wi‑Fi:IEEE 802.11 b/g/n/ac compatible with both 2.4 GHz and a limited 5.15–5.25 GHz band to support app access and remote notifications.
• Power:The indoor monitor is powered by DC 24 V / 1.5 A (typical kits include a 100–240 VAC adapter). Typical power consumption is about 8 W, peaking up to 24 W under heavy use.

• Display:7" capacitive touch screen (1024 × 600) offers quick access to live view, call logs and control of locks or additional monitors.
• Storage:Local microSD support up to 512 GB lets you keep days or weeks of footage without subscription; EZVIZ Cloud is supported for off‑site archiving.
• Expandability:The system supports up to two outdoor panels and two indoor monitors, useful for multi‑door or multi‑room setups.

• Outdoor panel size: 161 × 87 × 20 mm; monitor size: 180 × 111 × 15 mm; monitor weight ~855 g.
• Operating temperature ranges are broad (panel −30°C to 60°C; monitor −10°C to 45°C) for most climates.
• Weatherproof design with a protective shield cover for the panel; confirm regional certifications (CE / UKCA) and local power rules before installation.

Benefits: Why Those Specs Matter

The combination of 2K resolution and a wide field of view means better recognition of faces and details like package labels, license plates at close range, or distinguishing features in incident footage. Dual‑band Wi‑Fi plus wired 2‑wire transmission gives installers flexibility: use Wi‑Fi for a simpler install where wiring is impractical, or reuse existing intercom wiring to maintain a wired connection that’s less prone to Wi‑Fi interference. RFID support is convenient for families or small businesses that prefer badge access over keys or smartphone unlocking. Local microSD storage keeps video private and accessible even if network connectivity drops, while cloud backup offers off‑site redundancy. Smart motion detection and tamper alerts reduce false alarms and focus on human activity, increasing the system’s day‑to‑day usefulness.

Use Cases and Scenarios Where the HP7 Excels

Many homes still have older 2‑wire intercom systems. The HP7’s digital 2‑wire compatibility makes it a strong retrofitting option: minimal wall cutting, reuse of existing conduits, and an upgraded look and functionality without full rewiring. Families benefit from remote access to see visitors, unlock for guests, and store footage locally.

Small shared‑space buildings, guest houses or offices with two entry points can use the HP7’s support for up to two panels and two monitors, providing visibility and control across entrances without deploying a full commercial access control system.

RFID badges provide quick, hands‑free entry for household members or staff. The wide‑angle 2K camera lets you monitor deliveries and detect lingering visitors; combined with app notifications, you can confirm and act in real time.

The system’s local storage and wired transmission options are helpful when Wi‑Fi is unreliable. If the home network goes down, the HP7 can continue to record locally and provide basic doorphone functionality over the wired link.

Comparisons with Similar Products

Compared with basic 720p or many 1080p video doorbells, the HP7’s 2K sensor offers a noticeable increase in detail, which is especially useful for identification at distance or in complex scenes. Unlike many consumer doorbells that are wireless battery units, the HP7 is a powered, wired solution better suited for retrofit intercom replacements and multi‑monitor setups. Against premium IP video intercom systems, the HP7 competes by offering a middle ground: professional features (electric strike outputs, 2‑wire transmission, expandable panels) without the higher cost and complexity of enterprise systems.

Where it differs from fully cloud‑centric products: the HP7 emphasizes on‑device storage (microSD up to 512 GB), giving owners more control over data and potentially lower ongoing costs if they decline cloud subscriptions. However, if you require advanced cloud AI analytics or very wide 5 GHz Wi‑Fi roaming support, some higher‑end models from dedicated intercom brands may provide additional features at a higher price point.

Conclusion: Why the EZVIZ CS‑HP7 Is a Strong Choice

The EZVIZ CS‑HP7 balances high‑resolution imaging, retrofit‑friendly wiring options and smart access features at an approachable price point. Its 2K camera and wide field of view deliver clearer video than many entry‑level doorbells, while the 7" capacitive monitor gives local control without relying exclusively on a smartphone. Dual‑band Wi‑Fi and digital 2‑wire transmission make it adaptable to many installation scenarios, and support for RFID, electric strikes and expandability to multiple panels or monitors makes it suitable for both family homes and small commercial properties.

For users who want a dependable, privacy‑minded entry system with solid on‑device storage and flexible unlocking methods, the HP7 is a compelling option. As with any doorphone, success depends on correct installation (power and wiring), thoughtful placement for camera view and following regional safety and certification requirements. If those basics are addressed, the EZVIZ CS‑HP7 delivers a modern, feature‑rich front‑door experience that upgrades both security and convenience.
