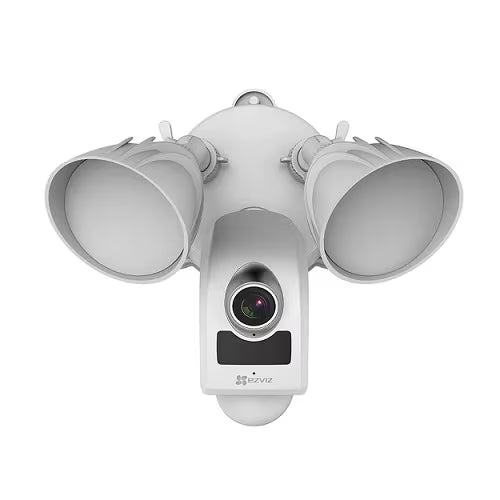

EZVIZ CS-LC1 Smart Security Light Camera, 1080p, 2500-Lumen Dual Lights
About this product
The EZVIZ CS-LC1 (LC1) is a smart security light camera that pairs dual lights with a combined brightness of 2500 lumens and a 1080p camera. Designed for outdoor use, it lights up dark spots around a house, such as the front porch and backyard.
Key features
- 1080p resolution, with a max. resolution of 1920 × 1080, FHD
- 2 SMD LED lamps with 2500LM (-10%) brightness, CRI 80 and 3000k colour temperature
- PIR motion detection with a 30 ft detection distance and 270 degrees detection range
- Night vision up to 18m/60ft
- Field of view 140°(Diagonal), 115°(Horizontal)
- A 100 dB alarm with flashing light when someone enters the 270-degree PIR motion detection area
- Two-way talk through a built-in omni-direction microphone and built-in loudspeaker
- Micro SD card storage up to 128GB, with EZVIZ Cloud Storage (Optional)
Frequently asked questions
How bright are the LC1's lights?
The LC1 has 2 SMD LED lamps with a brightness of 2500LM (-10%) and a colour temperature of 3000k.
How far does the night vision reach?
Night vision reaches up to 18m/60ft.
How is the LC1 powered?
It is hardwired (110V-240V), with power consumption of ≤2W (normal),≤8W (max).
What storage does the LC1 support?
It supports a Micro SD card up to 128GB, and EZVIZ Cloud Storage is optional.
What is the LC1's ingress protection rating?
The ingress protection grade is IP65 on camera (Wet Location for light).
What happens when the LC1 detects motion?
When someone enters its 270-degree PIR motion detection area, it emits a 100 dB alarm with flashing light and sends an alert with captured images to smartphones.
Specifications
Specifications
| Brand | EZVIZ |
|---|---|
| Model | CS-LC1 |
| Manufacturer Part Number (MPN) | CS-LC1 |
| Resolution | 1080p |
| Max. Resolution | 1920 × 1080, FHD |
| Field of View | 140°(Diagonal), 115°(Horizontal) |
| Night Vision | Up to 18m/60ft |
| Compression Standard | Smart H.264 |
| Frame Rate | 50Hz @ 25fps, 60Hz @ 30fps |
| DNR | 3D DNR |
| Lamp | 2 |
| LED | SMD LED |
| Brightness | 2500LM (-10%) |
| CRI | 80 |
| Colour temperature | 3000k |
| Life-span | @B50L70 @Ta 25℃ 48000H |
| PIR detection distance | 30 ft |
| PIR detection range | 270 degrees |
| Audio input | Built-in omni-direction microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression |
| Wireless | Wireless 802.11 b/g/n @2.4GHz only (2T2R, Dual-antenna) |
| Network configuration | Soft AP Configuration |
| Minimum network requirement | 2.0 Mbps |
| Local storage | Support Micro SD Card (Up to 128GB) |
| Cloud storage | EZVIZ Cloud Storage (Optional) |
| Siren | 100 dB alarm |
| Fixture material | Cast aluminum (Lights) and Plastics (Camera) |
| Operating conditions | -30ºC ~ 50ºC (-20ºF ~ 120ºF) |
| Power supply | Hardwired (110V-240V) |
| Power consumption | ≤2W (normal),≤8W (max) |
| Ingress protection grade | IP65 on camera (Wet Location for light) |
| Product dimensions | 196mm x 211mm x 227mm |
| Weight | 1757g |
