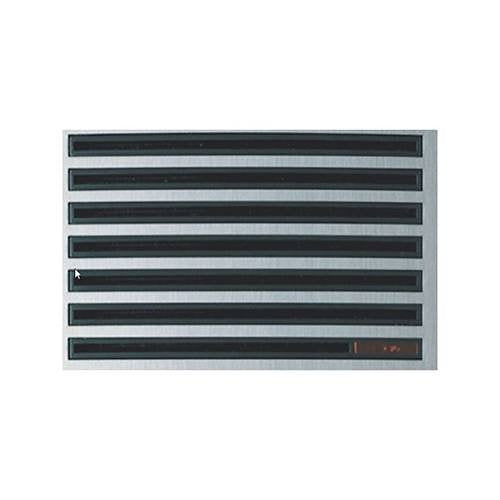

Fermax 9695 audio amplifier module, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Fermax 9695 is an audio amplifier module.
Amplifier module of spare parts for inclusion in CityClassic electronic door entry panels. The module (audio unit) incorporating the electronic circuits needed for audio system operation, in electronic door entry installations (audio/video), enable communication with homes, guard unit, door opening, etc.. CityLine Classic is the "continuous profile" outdoor panel line for buildings.
The PANELS are manufactured in anodized aluminium, highly resistant to rough weather and climate changes. The panel design stands out for its curved-convex profile. A cellular rubber airtight seal included assures a perfect panel-to-wall fit to prevent water filtrations.
Available in several colours: aluminium, golden or bronze and white. It is possible to combine two or more panels, as long as they are from the same series. For a perfect fit, a set of separators should be used for every two panels installed between their flush mounted boxes.
Colour aluminium
Call Pushbuttons: streamlined metallic shape in line with the panel's curved profile. Pressing the call button is confirmed by an acoustic signal from the amplifier. Equipped with special silver plated contacts that make them last longer.
Pushbuttons include a card slot to insert a label with the home owner's name and door number. When the lighting key on the front of the amplifier is pressed, a soft light lets you see the card slots, even in total darkness. Conventional System: uses wires common to the whole installation plus 1 call wire (or call return) per home..
Recommended in small to medium-sized buildings (up to 50 residents approx), with several accesses and central guard unit. For residential complexes with general entrance and interior blocks. Wiring:
Audio door entry system: 4 common wires + N (1 call wire per home). Video door entry system: 7 common wires + 1 video coaxial+N (1 call wire per home).
Key features
- Power supply: 12 V DC
- Consumption: in standby 100 mA / active 180 mA
- For CityClassic electronic door entry panels
If you are matching this to an existing installation, work from the 9695 part number rather than the description.
Specifications
General information
Certifications
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Fermax |
|---|---|
| Manufacturer Part Number | 9695 |
| Product Type | Audio Amplifier Module |
General information
| Application/Usage | Door, Door Entry Panel, Guard Unit, Home |
|---|---|
| Packaged Quantity | 1 |
Certifications
| CE marking | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Material | Rubber |
Miscellaneous
| Compatibility | CityClassic Electronic Door Entry Panels |
|---|
Attributes
| Compatibility | CityClassic Electronic Door Entry Panels |
|---|---|
| Indoor or outdoor use | Outdoor |
