Fermax 6545 intercom answering unit, 4"
About this product
Please note: this is a non-returnable item (excluding faulty goods)

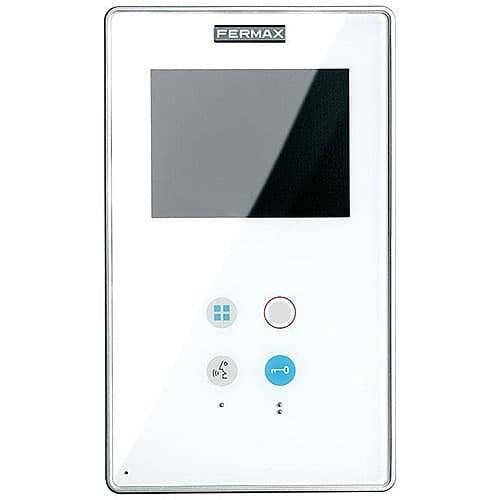

Fermax 6545 is an intercom answering unit.
Video door entry COLOUR monitor. TFT screen 3.5". Installed in homes, lets you communicate with the outside panel, open the door and see the visitor on the built-in screen.
Simplified installation audio and video door entry system that does not use house call wires. The call is made by transmission of a digital call code generated by the VDS amplifier. In new works, installation can be carried out with the following type of wiring: 5 wire / 3 wire + Coaxial (video).
Lets you manage up to 199 homes, 2 entrance accesses and a central guard unit. Maximum distance from first access to last home: 200 m. VDS amplifier comes with voice synthesizer as standard issue.
When the door release is activated a message is heard: "Door open, please close after entering". The home terminals require simple programming done from the outdoor panel. By means of this programming a call code is assigned to each terminal (telephone or monitor).
Communication is private. Wiring. Audio: 3-wire bus.
Video: 5 wire / 3 wire + Coaxial (video). Smile is a new video entry experience. It is cool and smart.
With a design that allows its perfect integration in any surrounding. An advanced management monitor, with hands-free communication, high-performance features and user friendly. Compact and essential design.
Its TFT screen and its capacitive touch buttons remain behind an ultra-resistant transparent polycarbonate sheet with ultraviolet protection. Smile is the result of a refined design which has reduced and stylized its components to the minimum expression.
Key features
- Surface mounted with super sleek profile stands out only 20mm from the wall
- Auto-on button for main and secondary camera activation (sequentially)
- Door bell for direct house call button connection to monitor / telephone
If you are matching this to an existing installation, work from the 6545 part number rather than the description.
Specifications
General information
Technical information
Certifications
Display & graphics
Physical characteristics
Product information
Attributes
Specifications
| Brand Name | Fermax |
|---|---|
| Manufacturer Part Number | 6545 |
| Product Type | Video Door Phone Sub Station |
General information
| Application/Usage | Door Entry |
|---|
Technical information
| Maximum Wiring Distance | 200m |
|---|---|
| Wiring Type | 5-Wire |
Certifications
| CE marking | Yes |
|---|
Display & graphics
| Display Resolution | 320 x 240 |
|---|---|
| Screen Size | 4" |
| Touchscreen | Yes |
Physical characteristics
| Colour | White |
|---|---|
| Weight | 356.00g |
Product information
| Display Screen Type | TFT LCD (Thin Film Transistor) |
|---|
Attributes
| Weight | 356.00g |
|---|
Fermax 6545 intercom answering unit, 4"
