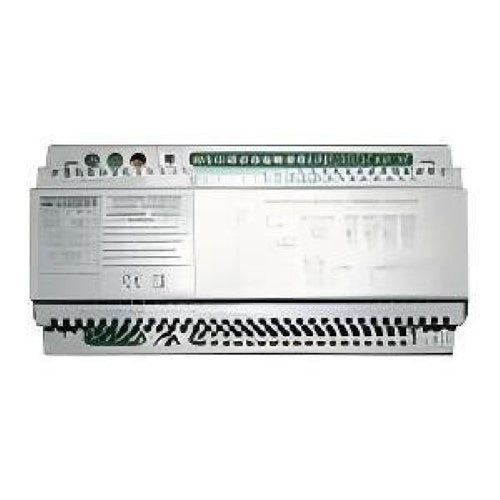

Fermax 8812 intercom & entry accessory
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Fermax 8812 is an intercom & entry accessory from the Automatic range.
Switchers are needed in facilities with more than one access. They are used to connect the home telephone or monitor with the panel where the call is being made from. Maximum 7 accesses.
1 switcher is required for each audio/video door access. In installations with 2 accesses, only 1 switcher is needed.There are two models depending on the type of additional access; audio or video entry. DIN-10 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall.
Conventional System uses wires common to the whole installation plus 1 call wire (or call return) per home. Recommended in small to medium-sized buildings (up to 50 residents approx), with several accesses and central guard unit. For residential complexes with general entrance and interior blocks.
Key features
- Supports connection of home telephone or monitor with multiple access panels
- Maximum 7 accesses per switcher
- 1 switcher needed for each audio/video door access
- Single switcher sufficient for installations with 2 accesses
- Two model types based on audio or video additional access
- DIN-10 rail format for easy installation in electrical equipment box
- Can be wall-mounted with screws
- Uses conventional wiring with common wires plus 1 call wire per home
- Recommended for small to medium buildings up to 50 residents
- Suitable for residential complexes with general entrance and interior blocks
If you are matching this to an existing installation, work from the 8812 part number rather than the description.
Specifications
Certifications
Power description
Attributes
Specifications
| Brand Name | Fermax |
|---|---|
| Manufacturer Part Number | 8812 |
| Product Series | Automatic |
Certifications
| CE marking | Yes |
|---|---|
| RoHS compliance | Exempt |
| WEEE compliance | Compliant |
Power description
| Input Voltage | 12V AC, 18V DC |
|---|
Attributes
| Input Voltage | 12V AC, 18V DC |
|---|
