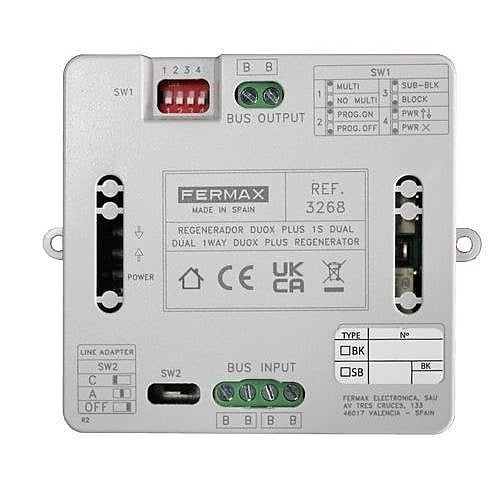

Fermax 3268 intercom system
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Fermax 3268 is an intercom system.
It has 2 inputs and 1 output. Regenerates and amplifies the signal in both directions. It can operate in single signal regeneration mode or in multichannel mode (to regenerate and at the same time isolate the conversation of a network line).
Key features
- Mounting can be done either by screw fixing or by installation on a DIN rail
- Isolation of sections (trunks, etc.). The two sections between which it is installed are insulated against short circuits, loads and signal reflections
- When powered by one port, the regenerator passes a maximum current of 1.6A to the other port
- Also in multichannel regenerator mode, establishing simultaneous conversations in different blocks
If you are matching this to an existing installation, work from the 3268 part number rather than the description.
Specifications
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Fermax |
|---|---|
| Manufacturer Part Number | 3268 |
| Product Type | Intercom System |
Physical characteristics
| Depth | 26.00mm |
|---|---|
| Height | 86.00mm |
Power description
| Input Voltage | 18-24V DC |
|---|
Attributes
| Input Voltage | 18-24V DC |
|---|
