Fermax 7366 module, Polycarbonate
About this product
Please note: this is a non-returnable item (excluding faulty goods)

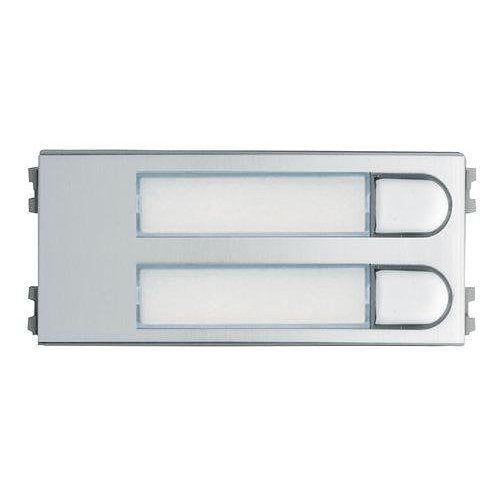

Fermax 7366 is a module.
SKYLINE Module with 2-buttons (2 rows x 1 column) for 4+N and MDS analog system. Size V. Anodized aluminum front and chrome-plated zamak buttons.
IP43.
Key features
- Call buttons integrated into the push button modules for the new SKYLINE panel, to be placed in the panel frame
- Call buttons in injected zamak with chrome finish, in harmony with the curved profile of the plate. Waterproof for outdoor use
- The push buttons have special gold-plated contacts that give them a longer life
- The selection of the call push button is confirmed by an audible indicator emitted by the amplifier
- The push buttons are accompanied by a polycarbonate label holder (front access) to place the owner's name and apartment number. Integrated lighting that allows the label holders to be viewed, even in complete darkness
- They are metallic and have a rounded shape in harmony with the curved profile of the panel
- The assembly of the push button modules is extremely simple. Once the combination of modules has been chosen according to the number of housings, we proceed to insert them into the frame of the plate
- The assembly of the push button modules is extremely simple. After choosing the combination of modules according to the number of homes, we embed them in the panel support
- The fixing system consists of a slight pressure from the inside to the outside. Finally, the different push-button modules are connected together using the connectors provided (easy connection)
- Single and double push-button modules available
If you are matching this to an existing installation, work from the 7366 part number rather than the description.
Specifications
Certifications
Miscellaneous
Physical characteristics
Attributes
Specifications
| Brand Name | Fermax |
|---|---|
| Manufacturer Part Number | 7366 |
| Product Type | Intercom System |
Certifications
| CE marking | Yes |
|---|
Miscellaneous
| Assembly Required | Yes |
|---|---|
| Compatibility | Video Door Entry system |
| Indoor or outdoor use | Outdoor |
Physical characteristics
| Depth | 33.00mm |
|---|---|
| Height | 47.50mm |
| Material | Polycarbonate |
| Width | 5.00cm |
Attributes
| Compatibility | Video Door Entry system |
|---|
