Fike 302-0012 flash point, White
About this product
Fike 302-0012 is a flash point.

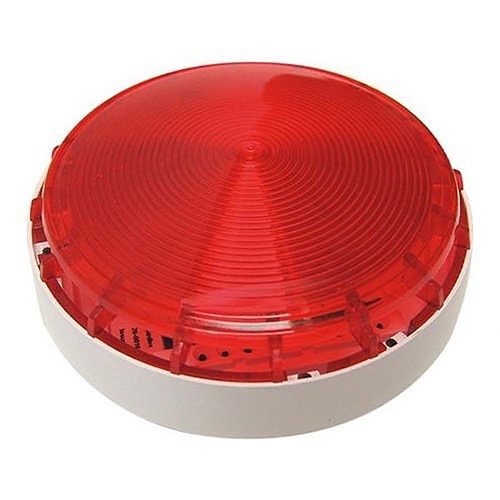

The TWINFLEX 2-Wire Flashpoint Sounder/Strobe is a low profile sounder /strobe that has the option f being fitted with a domed lens if required (302 0022). The device is fitted with an integral sounder capable of providing one of 3 different tones and operating at 65 or 90dB dependant on programming. A synchronized LED strobe output is also included to provided a visual indication of an alarm activation.
This sounder/strobe is compatible with Fike's TWINFLEX range of control panels and may be installed on the same zone as the Multipoint detector/sounder and associated TWINFLEX devices. Its operating parameters are configured using a bank of DIL switches on the rear of the device.
Key features
- Ideal for areas that do not require automatic detection but require a high sound level
- 90dB
- 18-35Vdc
If you are matching this to an existing installation, work from the 302-0012 part number rather than the description.
Specifications
Technical information
Environmental conditions
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Fike |
|---|---|
| Manufacturer Part Number | 302-0012 |
| Product Type | Security Alarm |
Technical information
| Connectivity Technology | Wired |
|---|
Environmental conditions
| Sound Emission | 90dB |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Lens Colour | Red |
Power description
| Input Voltage | 35V DC |
|---|
Attributes
| Input Voltage | 35V DC |
|---|
