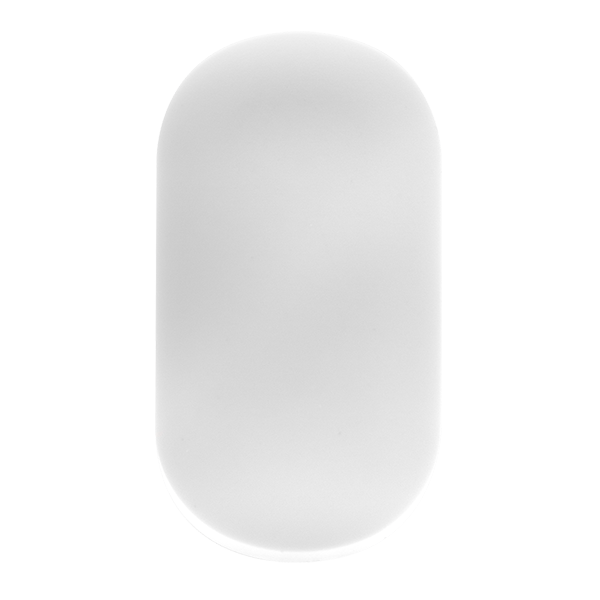

Fort ECSPCT Smart Alarm Contact
£
12
22
(Incl. VAT)
1 Years Warranty
Smart Alarm Contact
About this product
About this product
For doors and windows, the Fort ECSPCT from ESP's Smart Security range is a smart contact sensor with a separate magnet. It is battery powered (battery supplied), has tamper protection and low power indication, and requires the ECSPHB smart alarm hub.
Key features
- Smart door or window contact sensor with magnet
- Tamper protection and low power indication
- Battery powered (supplied); power reserve 12 months (approx.)
- 433 MHz transmission; transmission distance 80m (open field)
- Zone types: Normal Sensor, 24h mode, Delay mode, Home mode, 24h mute sensor, Home delay mode
- Works with the ECSPHB hub (required) and the ECSPBST booster
Frequently asked questions
Where can the ECSPCT be fitted?
On doors and windows; it is surface mounted.
Which hub does it require?
The ECSPHB smart alarm hub.
Is the battery included?
Yes, it is battery powered and the battery is supplied. The power reserve is 12 months (approx.).
What comes with it?
A magnet, 3 x distance holders, mounting screws and wall plugs, and a user guide.
-
Download
- ECSPCT Tech Sheet
£
12
22
FAST delivery by Order within
Price
Technical Details
Specifications
Operating Voltage (V DC)
3
Magnet Dimensions (mm)
25 x 10 x 9
Power Consumption (A)
0.015
Weight (Kg)
0.2
Power Reserve
12 Months (Approx.)
Warranty (Years)
1
Battery Type
CR2477
Materials
ABS
Transmission Frequency (MHz)
433
Colour
White
Transmission Distance (m)
80m (open field)
Zone Types
Normal Sensor/24h mode/Delay mode/Home mode/24h mute sensor/Home delay mode
Relative Humidity Resistance (%)
<80 (non-condensing)
Compatible Products
ECSPHB & ECSPBST
Dimensions (mm)
55.7 x 30.3 x 16
Mounting
Surface
Operating Temperature (°C)
-10 to 55
Dimensions
Magnet Dimensions (mm)
25 x 10 x 9
Specifications
| Operating Voltage (V DC) | 3 |
|---|---|
| Magnet Dimensions (mm) | 25 x 10 x 9 |
| Power Consumption (A) | 0.015 |
| Weight (Kg) | 0.2 |
| Power Reserve | 12 Months (Approx.) |
| Warranty (Years) | 1 |
| Battery Type | CR2477 |
| Materials | ABS |
| Transmission Frequency (MHz) | 433 |
| Colour | White |
| Transmission Distance (m) | 80m (open field) |
| Zone Types | Normal Sensor/24h mode/Delay mode/Home mode/24h mute sensor/Home delay mode |
| Relative Humidity Resistance (%) | <80 (non-condensing) |
| Compatible Products | ECSPHB & ECSPBST |
| Dimensions (mm) | 55.7 x 30.3 x 16 |
| Mounting | Surface |
| Operating Temperature (°C) | -10 to 55 |
Dimensions
| Magnet Dimensions (mm) | 25 x 10 x 9 |
|---|
Smart Alarm Contact features
Fort ECSPCT Smart Alarm Contact
