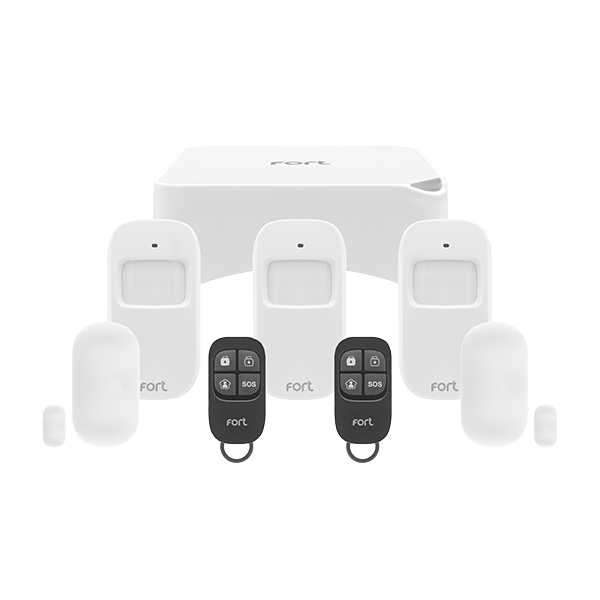

Fort ECSPK3 Smart Alarm Kit 3
Free Delivery
£
175
62
(Incl. VAT)
1 Years Warranty
Smart Alarm Kit 3
About this product
About this product
The Fort ECSPK3, from ESP's Smart Security range, is a smart security alarm kit with a hub, 3 PIRs, 2 door/window contacts and 2 remote fobs. The hub connects by Wi-Fi with GSM back-up, and activations and monitoring are supported via the app.
Key features
- Kit: ECSPHB hub, 3 x ECSPPIR PIRs, 2 x ECSPCT door/window contacts, 2 x ECSPRC remote controls
- Hub: Wi-Fi (2.4 GHz, IEEE 802.11 b/g/n) with GSM back-up, full-size SIM card
- Activations and monitoring supported via the app
- Hub: 95 dB sounder, up to 32 devices, Home/Arm/Disarm/SOS
- Hub backup battery with up to 8 hours standby time
- 433 MHz devices; 80 metre open field RF transmission
- PIRs: 8 m range
Frequently asked questions
What is in the ECSPK3 kit?
A hub, 3 PIRs, 2 door/window contacts and 2 remote controls, with an AC adapter, product batteries, mounting screws and wall plugs, and user guides.
How does the hub connect?
By Wi-Fi at 2.4 GHz (IEEE 802.11 b/g/n), with GSM back-up on a full-size SIM card.
How long does the hub run on its backup battery?
Up to 8 hours standby.
How many devices can the hub take?
Up to 32.
What range do the PIRs cover?
8 m.
-
Download
- ECSPK3 Tech Sheet
£
175
62
FAST delivery by Order within
Price
Technical Details
Specifications
Materials
ABS
Mounting
Surface
Available Operations
Home/Arm/Disarm/SOS
Sounder Output (dB)
95
PIR Range (m)
8
Maximum Devices
32
Transmission frequency (MHz)
433
Zone Types
Normal Sensor/24h mode/Delay mode/Home mode/24h mute sensor/Home delay mode
Operating Temperature (°C)
-10 to 55
Relative Humidity Resistance (%)
<80 (non-condensing)
Router Transmission Range (m)
150
GSM
Yes (Full-size SIM Card)
Magnet Dimensions (mm)
25 x 10 x 9
Warranty Years
1
Remote control (ECSPRC) dimensions (mm)
57 x 31 x 11
Remote control (ECSPRC) colour
Black
Hub, PIR and door/window contact colour
White
PIR (ECSPPIR) bracket dimensions (mm)
52 x 30 x 26.5
Door/window contact (ECSPCT) weight (Kg)
0.2
Hub (ECSPHB) operating voltage (V DC)
12
PIR, door/window contact and remote control operating voltage (V DC)
3
Door/window contact (ECSPCT) battery type
CR2477
Door/window contact (ECSPCT) power consumption (A)
0.015
Hub (ECSPHB) power reserve
8 Hours (Approx.)
PIR, door/window contact and remote control power reserve
12 Months (Approx.)
Remote control (ECSPRC) power consumption (mA)
<7
Dimensions
Hub (ECSPHB) (mm)
109.5 x 109.5 x 40
PIR (ECSPPIR) (mm)
107 x 53 x 32
Door/window contact (ECSPCT) (mm)
55.7 x 30.3 x 16
Remote control (ECSPRC) (mm)
57 x 31 x 11
Specifications
| Materials | ABS |
|---|---|
| Mounting | Surface |
| Available Operations | Home/Arm/Disarm/SOS |
| Sounder Output (dB) | 95 |
| PIR Range (m) | 8 |
| Maximum Devices | 32 |
| Transmission frequency (MHz) | 433 |
| Zone Types | Normal Sensor/24h mode/Delay mode/Home mode/24h mute sensor/Home delay mode |
| Operating Temperature (°C) | -10 to 55 |
| Relative Humidity Resistance (%) | <80 (non-condensing) |
| Router Transmission Range (m) | 150 |
| GSM | Yes (Full-size SIM Card) |
| Magnet Dimensions (mm) | 25 x 10 x 9 |
| Warranty Years | 1 |
| Remote control (ECSPRC) dimensions (mm) | 57 x 31 x 11 |
| Remote control (ECSPRC) colour | Black |
| Hub, PIR and door/window contact colour | White |
| PIR (ECSPPIR) bracket dimensions (mm) | 52 x 30 x 26.5 |
| Door/window contact (ECSPCT) weight (Kg) | 0.2 |
| Hub (ECSPHB) operating voltage (V DC) | 12 |
| PIR, door/window contact and remote control operating voltage (V DC) | 3 |
| Door/window contact (ECSPCT) battery type | CR2477 |
| Door/window contact (ECSPCT) power consumption (A) | 0.015 |
| Hub (ECSPHB) power reserve | 8 Hours (Approx.) |
| PIR, door/window contact and remote control power reserve | 12 Months (Approx.) |
| Remote control (ECSPRC) power consumption (mA) | <7 |
Dimensions
| Hub (ECSPHB) (mm) | 109.5 x 109.5 x 40 |
|---|---|
| PIR (ECSPPIR) (mm) | 107 x 53 x 32 |
| Door/window contact (ECSPCT) (mm) | 55.7 x 30.3 x 16 |
| Remote control (ECSPRC) (mm) | 57 x 31 x 11 |
Smart Alarm Kit 3 features
Fort ECSPK3 Smart Alarm Kit 3
