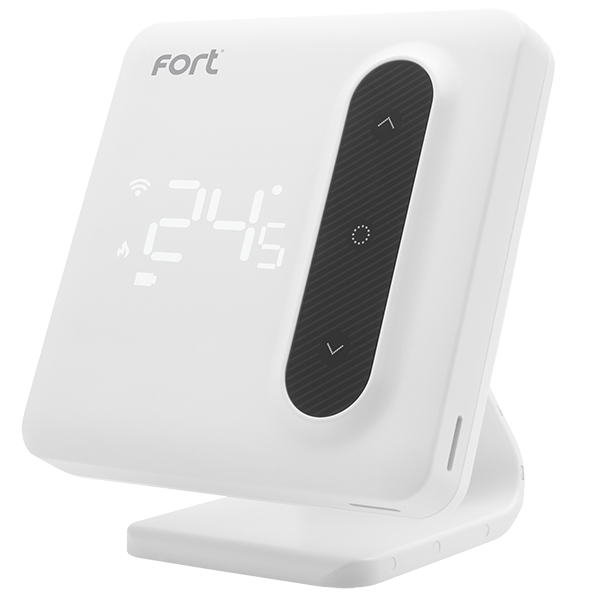

Fort ECSPST Smart Thermostat & Receiver
£
103
39
(Incl. VAT)
1 Years Warranty
Smart Thermostat & Receiver
About this product
About this product
The Fort ECSPST, from ESP's Smart Security range, is a smart thermostat & receiver: a Wi-Fi controlled thermostat with remote monitoring and scheduling. The thermostat is programmed through an app, on a 7 day, 5/2 day or 5/1/1 day schedule.
Key features
- Wi-Fi controlled thermostat; 2.4GHz Wi-Fi connection required
- Remote monitoring and scheduling
- Thermostat programming schedule 7 day, 5/2 day and 5/1/1 day; thermostat modes manual, schedule & boost
- Thermostat set temperature range 5 to 35 °C; thermostat frost protection (5°C)
- Alexa & Google Assistant integration; ClickSmartPlus app integration
- Open window detection; key lock facility
- Receiver output relay rating 8A @ 250V AC; selectable normally open or normally closed & common
- Thermostat: wall or desk mounted; receiver: surface
Frequently asked questions
What is in the box?
The Fort smart thermostat, the Fort smart receiver, a thermostat stand, a receiver mains adapter, a receiver flylead adapter, a receiver mains bulkhead, an installation pack, a quickstart guide and 2 x AA batteries.
Does it need Wi-Fi?
Yes: a 2.4GHz Wi-Fi connection is required.
Does it work with voice assistants?
Yes: it has Alexa & Google Assistant integration.
What schedules can the thermostat run?
7 day, 5/2 day and 5/1/1 day, with manual, schedule & boost modes.
Does it keep its settings in a power loss?
Yes: user & program settings are permanent during power loss.
-
Download
- ECSPST Tech Sheet
£
103
39
FAST delivery by Order within
Price
Technical Details
Specifications
Colour
White
Materials
Polycarbonate
Relay Rating
8A @ 250V AC
EE Class
ErP Class IV
Operating Temperature (°C)
0 to +50
Warranty Years
1
Thermostat dimensions (mm)
100 x 100 x 22
Receiver dimensions (mm)
86 x 86 x 28.5
Thermostat mounting
Wall or Desk Mounted
Receiver mounting
Surface
Thermostat operating voltage (V DC)
3
Thermostat battery type
AA (LR06) x 2
Receiver wireless range - open field (m)
100
Receiver supply voltage (V AC)
100 - 240
Receiver frequency (Hz)
50
Thermostat programming type
App Based
Receiver connection type
Flylead or Mains Plug
Thermostat battery low indicator
Yes
Thermostat output type
Normally Open or Normally Closed
Receiver output type
Selectable: Normally Open & Common, Normally Closed & Common
Thermostat adjustment type
3 Buttons; Up, Down, ON/OFF
Receiver adjustment type
Single Button
Receiver optimisation
Optimum Start
Thermostat programming schedule
7 Day, 5/2 Day and 5/1/1 Day
Thermostat set temperature range (°C)
5 to 35
Thermostat temperature display range (°C)
0 to 50
Thermostat modes
Manual, Schedule & Boost
Thermostat transmission frequency (MHz)
868
Thermostat maximum communication range (m)
100
Thermostat frost protection
Yes (5°C)
Receiver router transmission frequency (GHz)
2.4
IEC Protection Class (receiver)
II
Ingress Protection
IP21
Supplied
Fort Smart Thermostat; Fort Smart Receiver; Thermostat Stand; Receiver Mains Adapter; Receiver Flylead Adapter; Receiver Mains Bulkhead; Installation Pack; QuickStart Guide; 2 x AA batteries
Features
Key Lock Facility; Low Battery Indication; Frost Protection; Alexa & Google Assistant Integration; ClickSmartPlus App Integration; Optional Intelligent Function “Optimal Start”; Open Window Detection; Touch Buttons; Permanent User & Program settings during power loss
Dimensions
Thermostat (mm)
100 x 100 x 22
Receiver (mm)
86 x 86 x 28.5
Specifications
| Colour | White |
|---|---|
| Materials | Polycarbonate |
| Relay Rating | 8A @ 250V AC |
| EE Class | ErP Class IV |
| Operating Temperature (°C) | 0 to +50 |
| Warranty Years | 1 |
| Thermostat dimensions (mm) | 100 x 100 x 22 |
| Receiver dimensions (mm) | 86 x 86 x 28.5 |
| Thermostat mounting | Wall or Desk Mounted |
| Receiver mounting | Surface |
| Thermostat operating voltage (V DC) | 3 |
| Thermostat battery type | AA (LR06) x 2 |
| Receiver wireless range - open field (m) | 100 |
| Receiver supply voltage (V AC) | 100 - 240 |
| Receiver frequency (Hz) | 50 |
| Thermostat programming type | App Based |
| Receiver connection type | Flylead or Mains Plug |
| Thermostat battery low indicator | Yes |
| Thermostat output type | Normally Open or Normally Closed |
| Receiver output type | Selectable: Normally Open & Common, Normally Closed & Common |
| Thermostat adjustment type | 3 Buttons; Up, Down, ON/OFF |
| Receiver adjustment type | Single Button |
| Receiver optimisation | Optimum Start |
| Thermostat programming schedule | 7 Day, 5/2 Day and 5/1/1 Day |
| Thermostat set temperature range (°C) | 5 to 35 |
| Thermostat temperature display range (°C) | 0 to 50 |
| Thermostat modes | Manual, Schedule & Boost |
| Thermostat transmission frequency (MHz) | 868 |
| Thermostat maximum communication range (m) | 100 |
| Thermostat frost protection | Yes (5°C) |
| Receiver router transmission frequency (GHz) | 2.4 |
| IEC Protection Class (receiver) | II |
| Ingress Protection | IP21 |
| Supplied | Fort Smart Thermostat; Fort Smart Receiver; Thermostat Stand; Receiver Mains Adapter; Receiver Flylead Adapter; Receiver Mains Bulkhead; Installation Pack; QuickStart Guide; 2 x AA batteries |
| Features | Key Lock Facility; Low Battery Indication; Frost Protection; Alexa & Google Assistant Integration; ClickSmartPlus App Integration; Optional Intelligent Function “Optimal Start”; Open Window Detection; Touch Buttons; Permanent User & Program settings during power loss |
Dimensions
| Thermostat (mm) | 100 x 100 x 22 |
|---|---|
| Receiver (mm) | 86 x 86 x 28.5 |
