GJD VM-CW-IP light LED illuminator, Black
About this product
Please note: this is a non-returnable item (excluding faulty goods)

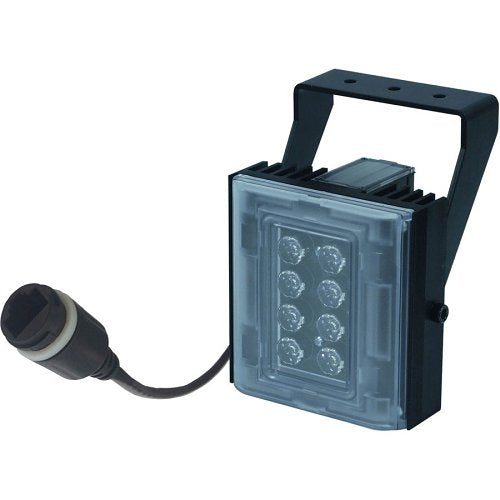

GJD VM-CW-IP is a light LED illuminator from the Plus range.
The Clarius Plus IP is an Internet Protocol-connected projector with an integrated web browser interface. The range incorporates the latest surface-mounted LEDs, with enhanced optical output and outstanding reliability, to deliver high-quality night-time images. Clarius Plus IP projectors include an interchangeable lens diffusion system that allows the user to quickly and easily change the lighting angle.
Elliptical beam profiles allow more precise illumination of specific areas as required, covering longer distances and minimizing light wastage. The system also helps prevent overexposure of foreground objects. The standard projector includes interchangeable lenses that provide elliptical beam profiles of 10°, 30°, 60° and 95°.
Key features
- White light illuminator designed to provide dedicated lighting for IP cameras Via PoE+ (Power Over Ethernet)
- Angle 10°, 30º, 60º & 95º
- Secure web browser interface
If you are matching this to an existing installation, work from the VM-CW-IP part number rather than the description.
-
Download
- VM-CW-IP — Product Manual
Specifications
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | GJD |
|---|---|
| Manufacturer Part Number | VM-CW-IP |
| Product Series | Plus |
| Product Type | Infrared Illuminator |
Certifications
| CE marking | Yes |
|---|---|
| Certifications & Standards | CE-EMC, CE-LVD, CULUS, ENVIRONMENTAL, FCC, RCM, RoHs, SAFETY, WEEE |
| RoHS compliance | Compliant |
| WEEE Compliant | Compliant |
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 78.00mm |
| Durability | Impact Resistant, Weather Resistant |
| Height | 111.00mm |
| Material | Anodized Aluminum, PC |
| Weight | 1.10g |
| Width | 110.00mm |
Product information
| Length | 111.00mm |
|---|
Miscellaneous
| Additional Information | Interchangeable Diffuser Lens |
|---|---|
| Compatibility | ahua, Alhua, AVIGILOn, Bosch, CLIP), Concept Pro, Crestron, EMBSEC, ernitec, Genetec, Genie, GLILIN, GRIFFID), Hanwha Techwin Europe, HDP, HIKVISION, Kentima, milestone, MIRASYS, MOBOTIX), NetworkOptix, OLUTRON, Oqulu, rako, RTI, See Tec, Sony, Supported cameras for direct control (AXIS, Supported home automation software (Control4, Supported VMS software/NVRs (AXIS, wavestore |
| Environmental certification | cULs, RoHS, WEEE |
Attributes
| Compatibility | ahua, Alhua, AVIGILOn, Bosch, CLIP), Concept Pro, Crestron, EMBSEC, ernitec, Genetec, Genie, GLILIN, GRIFFID), Hanwha Techwin Europe, HDP, HIKVISION, Kentima, milestone, MIRASYS, MOBOTIX), NetworkOptix, OLUTRON, Oqulu, rako, RTI, See Tec, Sony, Supported cameras for direct control (AXIS, Supported home automation software (Control4, Supported VMS software/NVRs (AXIS, wavestore |
|---|---|
| Environmental status | Yes |
| Weight | 1.10g |
