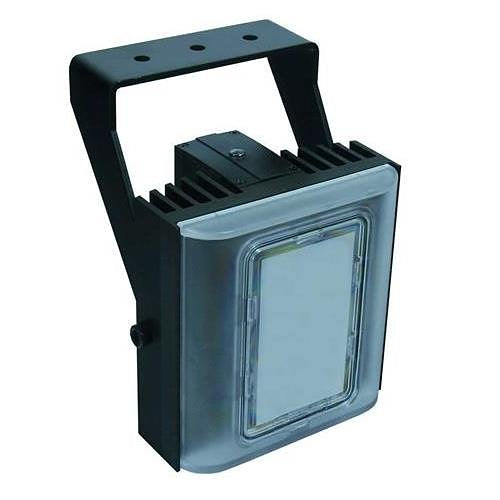

GJD VM-CW-P light LED illuminator, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
GJD VM-CW-P is a light LED illuminator.
The Clarius® PLUS range of high performance White Light LED illuminators are designed to provide class leading performance, long life and ultra low maintenance. Incorporating the latest surface mount LED's with enhanced optical output and outstanding reliability, they deliver excellent night-time images. Each unit is fitted with integrated control circuitry to carefully control LED output, delivering consistent illumination and projected working life in excess of 10 years.
The Clarius® PLUS range of illuminators includes a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects.
As standard the illuminator includes interchangeable lensing to deliver 10° circular, 20°, 30°, 60°, 80° and 95° elliptical beam profiles.
Key features
- Elliptical beam profiles
- Enable network infrastructure
- Distances up to 114m (374’)
If you are matching this to an existing installation, work from the VM-CW-P part number rather than the description.
Specifications
General information
Miscellaneous
Physical characteristics
Power description
Product information
Technical information
Attributes
Specifications
| Brand Name | GJD |
|---|---|
| Manufacturer Part Number | VM-CW-P |
| Product Type | Infrared Illuminator |
General information
| Application/Usage | Border, Commercial, Education, Government, Industrial, Residential, Transportation |
|---|
Miscellaneous
| Additional Information | Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects. |
|---|---|
| Compatibility | IP cameras via PoE+ |
| Environmental status | Yes |
| Features | Interchangeable Diffuser System (IDS), LED Illumination, PoE, Self-cleaning Lens Coating, SMT LED Technology, Surface Mount, Wall Mountable |
| Indoor or outdoor use | Indoor, Outdoor |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 78.00mm |
| Durability | Vandalproof, Weatherproof |
| Height | 114.00mm |
| Material | Anodized Aluminum, Polycarbonate |
| Weight | 1.10g |
| Width | 110.00mm |
Power description
| Power Source | AC Power, DC Power |
|---|
Product information
| Length | 114.00mm |
|---|
Technical information
| Device Supported | Camera |
|---|---|
| Illumination Distance | 114m |
Attributes
| Compatibility | IP cameras via PoE+ |
|---|---|
| Device Supported | Camera |
| Power Source | AC Power, DC Power |
| Weight | 1.10g |
GJD VM-CW-P light LED illuminator, White
